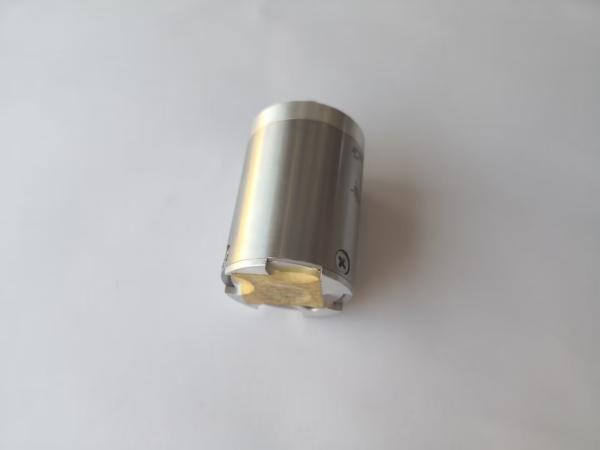

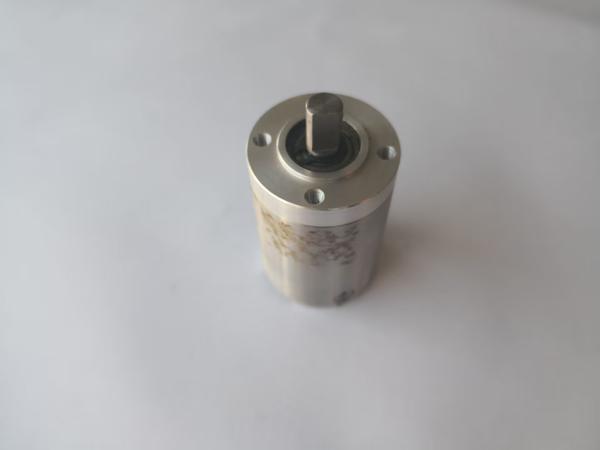

3.7V DC Metal Planetary Gearbox Motor 24mm For Electric Tool
3.7V DC Metal Planetary Gearbox Motor 24mm For Electric Tool
3.7V DC Metal Planetary Gearbox Motor 24mm For Electric Tool
3.7V DC Metal Planetary Gearbox Motor 24mm For Electric Tool
3.7V DC Metal Planetary Gearbox Motor 24mm For Electric Tool
3.7V DC Metal Planetary Gearbox Motor 24mm For Electric Tool
Specifications
Brand Name :
HYX
Model Number :
HYX-P24 planetary gearbox motor
Certification :
Rohs
Place of Origin :
Shenzhen, China
MOQ :
100 pcs
Price :
2.98~4usd
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500000 pcs per month
Delivery Time :
30~35 days after pay
Packaging Details :
80 pcs per carton box with 30cm*40cm*20cm
Color :
Silver
Life Span :
≥1000h
Material :
metal casing and metal gears
Model :
HYX-24mm planetary gearbox motor
Noise :
≤50dB
Power :
<7W
Product Name :
24mm outside diameter planetary gear motor
Size :
24mm outside diameter
Rated Speed :
25+/-2.5 rpm
Temperature Range :
-20℃~+60℃
Type :
Planetary gear set
Rated Voltage :
3.7VDC
Warranty :
1 Year
loaded torque :
2.2 kg.cm
Description

1. Item name: Metal Gear Motor Reducer 24mm planetary gearbox motor with high quality and high efficiency for electric tool

1) Small size dc gear motor with low speed and big torque

2) this gear motor provide 15 kg.cm torque and more realiable.

3) Suitable to low noise and big torque application

4) Gear ratio: 125:1

2. HYX-P24 Planet gear box dimensions with mounting ears

3.7V DC Metal Planetary Gearbox Motor 24mm For Electric Tool

Mounting dc mtor type: DC motor: 370 motor

Voltage, rated torque, speed, Current, Power and shaft dimensions can be customized as per customers' requirement.

3. Technical parameters

Stage Length (mm) Compatible motor Efficiency(%) No load backblash Weight
full steel gears

370 (%) (g)
1 / 90 less than 1°
2 27.6 81 less than 1.8°
3 73 less than 2°
4 65 less than 2°
5

Technical parameters

Rated

Voltage

 Operating Condition Temperature Ragen

No load

Speed

No load

Current

Loaded

Torque

Loaded

Speed

Loaded

Current

Stall

Current

Stall

Torque

 Direction Noise Axial gap
3.7VDC -20°~+50°C 30+/-3 rpm <=130mA 2.2kg.cm 25+/-2.5rpm 350mA 1.8A 15kg.cm CW/CCW <=38DB 0.3mm max

3.7V DC Metal Planetary Gearbox Motor 24mm For Electric Tool3.7V DC Metal Planetary Gearbox Motor 24mm For Electric Tool3.7V DC Metal Planetary Gearbox Motor 24mm For Electric Tool3.7V DC Metal Planetary Gearbox Motor 24mm For Electric Tool

4. Application Scenario

1) Household appliances: Electric curtains, integrated stoves, coffee machines, smart toilets, robot vacuums, dishwashers, range hoods, smart door locks
2) Personal care: hair curlers, massage instruments, electric hair clippers
3) Office equipments: shredders, printers, projectors, banknote counting machines, coin counting machines
4) Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs
5) Industrial equipment: water and electrical valves, air switches, pumps, automatic door switches, automatic lubrication equipment
6) Commercial equipment: vending machines, parking locks, ATM machines, smart lamps
7) Robots: manipulators, drones, service robots

Please kindly tell us your specific requirement and then we will offer you accordingly soon.

5. Contact US

Shenzhen huaYueXin Precise ware co.Ltd

Ms Calm Liu

Skype ID: szhhx168@hotmail.com
Whatsapp: +86-137-6033-4765
QQ: 460604107
Tel: 86-0755-82496832 Fax: 0755-25500780
Mobile: +86-13760334765
6. Transmission Ratio Calculation
Planetary gearbox: first stage: i=(number of teeth of internal gear/number of teeth of sun gear)+1
Multilevel: i=i1 x i2xi3...
7. FQA

Q1: Are you a trading company or a manufacturer?
A:We are a factory which has been specialized in cnc machining, PM/MIM, Plastic injection molding, precision casting etc.

Q2:What's your terms of payment?
A: 50%T/T as the upfront deposit, 50% before delivery,We will show you the photos and package before you pay the balance.

Q3: What about the lead time?
A:Sample need 20-25 days, mass production 25~30 days generally.

Q4. How to get an accurate quotation?
1) Drawings including tolereance requirement or photos or samples of products.

2) Detailed sizes of products.
3) Material of products
4) Surface treatment of products.
5) Ordinary purchasing quantity.
