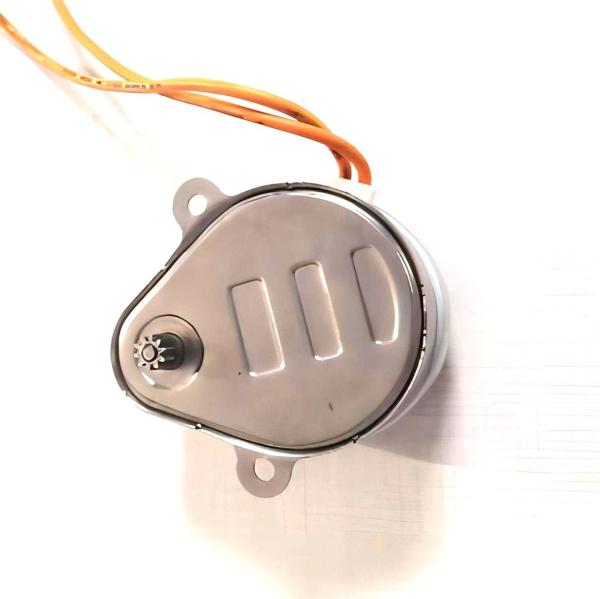

siliver Gear Motor Reducer For Electric Valve Inverter Home Appliances
siliver Gear Motor Reducer For Electric Valve Inverter Home Appliances
siliver Gear Motor Reducer For Electric Valve Inverter Home Appliances
siliver Gear Motor Reducer For Electric Valve Inverter Home Appliances
siliver Gear Motor Reducer For Electric Valve Inverter Home Appliances
siliver Gear Motor Reducer For Electric Valve Inverter Home Appliances
Specifications
Brand Name :
HYX
Model Number :
GM48 gearbox
Certification :
Rohs
Place of Origin :
Shenzhen, China
MOQ :
100 pcs
Price :
15~20 usd
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500000 pcs per month
Delivery Time :
20~25 days after pay
Packaging Details :
50 pcs per carton box with 30cm*40cm*29cm
Color :
siliver
Life Span :
≥1000h
Material :
steel for casings and metal gears
Model :
HYX-metal gear box 003
Noise :
≤50dB
Power :
3~10 W
Product Name :
Gear Motor Reducer
Size :
47mm*59mm*32.7mm
Speed :
1~60 rpm
Temperature Range :
-20℃~+60℃
Type :
Spur Gear Motor Reducer
Voltage :
24V , 120V , 220V/240V /AC
Warranty :
1 Year
output torque :
320 kg.com
Description

Item name: Gear Motor reducer with low noise and long-lifetime used for Electric valve,inverter home appliances ultra-thin fan

1.Applications:
Electric valve,inverter home appliances, ultra-thin fan, air conditioner, microwave oven, decoration toys,

inverter air conditioner,central air conditioner etc.

2. Specification:

*Voltage: 24V , 120V , 220V/240V /AC
*Cycle rate: 50/60Hz
*Output power: 3~10W
*Spindle speed: 1~60RPM
*Brake torque: 1RPM: 320 Kgf-cm↑
*Spindle rotation direction: The direction depends on the speed, and there are forward or reverse rotation respectively.
*Operating temperature: ---
*Insulation withstand voltage: AC 1500V - 1 Min
*Insulation class: A , B Class
*Standard wiring: 1007 X AWG#22 X 200 mm

3. Motor Features:
*low noise.
*Spring returns.
* Long running time.
*The gear set is a combination of copper teeth and steel teeth.
* Locked for a long time, the motor is not easy to burn out.

siliver Gear Motor Reducer For Electric Valve Inverter Home Appliancessiliver Gear Motor Reducer For Electric Valve Inverter Home Appliancessiliver Gear Motor Reducer For Electric Valve Inverter Home Appliances
