Specifications
Brand Name :
HAIYANG
Model Number :
HM01072
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Meter/Meters
Price :
0.5$/m(1~10m);0.43$/m(>1000m)
Supply Ability :
5000 Metric Ton/Metric Tons per Year
Packaging Details :
6m or 12m per piece
Specification :
DN25mm-1000mm
Color :
Black or Customer request
Usage :
Water supply
Raw material :
PE100
Size :
Customized Size
MOQ :
100 Meters
Sample :
Provide Samples
Advantage :
High Performance
Description

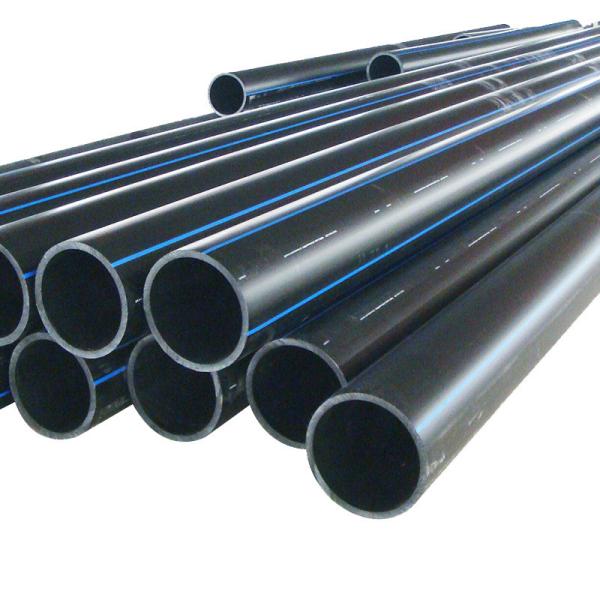

300mm 450mm Large Diameter Plastic Pipe HDPE Water Supply And Drainage Pipe

----------------------------------------

Basic Info.

HDPE is a very common material, that is, high-density polyethylene. HD means high-density, so the name implies. It is harder than ordinary PE plastic, milky white, has good chemical stability, and has a certain high and low temperature resistance. If the process is hygienic, it is a relatively "clean" material. HDPE water supply pipes and PE water supply pipes are both PE pipe fittings. HDPE is high-density polyethylene, and PE is polyethylene. That's the difference. But the physical properties are different.

Outer Diameter
DN (mm)
SDR 9
PN20
SDR 11
PN16
SDR 13.6
PN12.5
SDR 17
PN10
SDR21
PN8
SDR26
PN6
Packing
Loaded into 40GP/Piece
6m or 12m per Piece
Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm)
75 8.4 6.8 5.6 4.5 1085
90 10.1 8.2 6.7 5.4 4.3 754
110 12.3 10 8.1 6.6 5.3 4.2 504
125 14 11.4 9.2 7.4 6 4.8 378
140 15.7 12.7 10.3 8.3 6.7 5.4 304
160 17.9 14.6 11.8 9.5 7.7 6.2 224
180 20.1 16.4 13.3 10.7 8.6 6.9 182
200 22.4 18.2 14.7 11.9 9.6 7.7 143
225 25.2 20.5 16.6 13.4 10.8 8.6 110
250 27.9 22.7 18.4 14.8 11.9 9.6 90
280 31.3 25.4 20.6 16.6 13.4 10.7 72
315 35.2 28.6 23.2 18.7 15 12.1 56
355 39.7 32.2 26.1 21.1 16.9 13.6 42
400 44.7 36.3 29.4 23.7 19.1 15.3 30
450 50.3 40.9 33.1 26.7 21.5 17.2 25
500 55.8 45.4 36.8 29.7 23.9 19.1 20
560 62.5 50.8 41.2 33.2 26.7 21.4 16
630 70.3 57.2 46.3 37.4 30 24.1 12
710 64.5 52.2 42.1 33.9 27.2 9
800 72.7 58.8 47.4 38.1 30.6 6
900 81.8 66.2 53.3 42.9 34.4 6
1000 90.2 72.5 59.3 47.7 38.2 4
1200 88.2 67.9 57.2 45.9
1400 102.9 82.4 66.7 53.5
1500 110.2 88.2 71.4 57.6
1600 117.6 94.1 76.2 61.2



Advantage


Drainage safety:
The orifice is located in the wave trough. Due to the two-way action of the wave crest and the filter fabric, the orifice is not easy to be blocked, which ensures the smooth flow of the water permeable system.
Corrosion resistance:
Compared with soft spring drain pipe, plastic is not easy to rust.
Organic combination of strength and flexibility:
The unique double corrugated structure effectively improves the external pressure strength of the product, and the drainage system will not be deformed by external pressure to affect the drainage effect.
Economical:
Compared with other drainage pipes of the same caliber, its price is lower.


Details

Plastic HDPE Water Supply Drainage Pipe 300mm 450mm Large Diameter High DensityPlastic HDPE Water Supply Drainage Pipe 300mm 450mm Large Diameter High DensityPlastic HDPE Water Supply Drainage Pipe 300mm 450mm Large Diameter High DensityPlastic HDPE Water Supply Drainage Pipe 300mm 450mm Large Diameter High Density

Application


The materials used in HDPE pipes are mainly polyvinyl chloride (PVC), polyethylene (PE) and polypropylene (PP). Compared with other plastic pipes (such as PVC), high-density polyethylene (HDPE) pipes have the characteristics of low density, good toughness, corrosion resistance, good insulation performance, easy construction and installation, and are widely used in municipal and building water supply and drainage, gas , heating and heating, wire and cable threading, agricultural water-saving irrigation and other fields.


Certificate

Plastic HDPE Water Supply Drainage Pipe 300mm 450mm Large Diameter High Density
Plastic HDPE Water Supply Drainage Pipe 300mm 450mm Large Diameter High Density
Plastic HDPE Water Supply Drainage Pipe 300mm 450mm Large Diameter High Density
Company Profile


High Mountain Pipe Industry is a company integrating the production and sales of sewage treatment equipment and municipal water supply and drainage pipelines. It is a large pipeline building material production base in Central South China. With farsightedness, bold practice, and taking advantage of the background of Internet big data, we rely on our own production technology strength to continuously explore the transformation and upgrading strategies of traditional production enterprises, and become a new type of domestic "Internet + pipeline building materials" production enterprise!


Plastic HDPE Water Supply Drainage Pipe 300mm 450mm Large Diameter High Density Plastic HDPE Water Supply Drainage Pipe 300mm 450mm Large Diameter High Density

Plastic HDPE Water Supply Drainage Pipe 300mm 450mm Large Diameter High Density Plastic HDPE Water Supply Drainage Pipe 300mm 450mm Large Diameter High Density

FAQ

Q: Which payment method can your company use?
A: T/T, L/C or full trade insurance. You can choose the one that is convenient for you.

Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.
