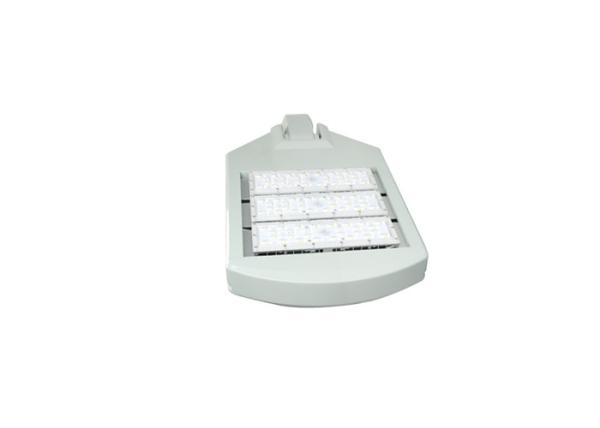

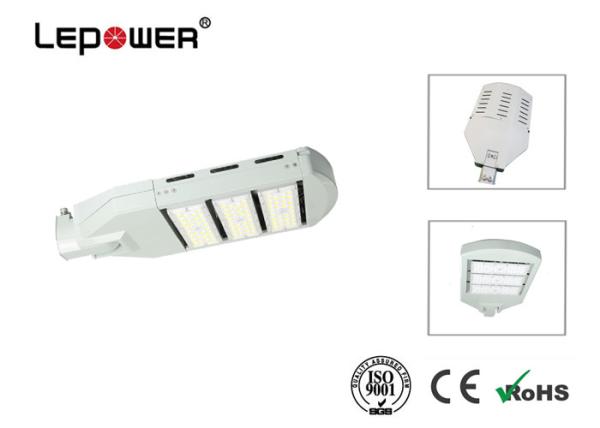

IP66 Waterproof 150W Power LED Street Light With Aluminum Housing 5 Years Warranty

Feature

• High lumen output. The original lumen of LED is 200lm/w,the lumen output of complete lamp is 150-160lm/w,It can save more energy (60%-70%) than normal led lamps and traditional lamps.
• Adoption Lepower exclusive light source and ZAG Lens.Compared with similar products,the luminous efficiency can be rised 8% and light transmittance up to 98%.
• LEDs which packaged by multi-chips is high lumen, stable performance, low light failure and no dead lights.
• With Excellent exterior design, the lamp is waterproof and dustproof, protecting rate: IP66.
• Durable,long lifetime,and last up to 50000 hours; no need to replace frequently and less daily maintenance.
• Green product,no UV or IR radiation, no mercury pollution.
• Minimum 70 CRI; Ra80 optional
• 5 years limited warranty.

Parameter

	Model	LY-L0303
	Power	150W
	CCT	3000K / 4000K / 5000K / 6000K
	CRI	Ra>70
	Luminous Efficiency	150lm/w
	Flux of Lamp	22500lm
	Beam angle	150*70 degree

Other attribute list

• Input voltage: AC 100-277V 50/60Hz

• Driver Efficacy: 92%

• Power factor( PF): >0.95

• THD: 20%

• Light distribution: Type II or Type III

• LifetimeL: >50,000 Hours

• Size of light pole: φ60mm

• Working Environmen: -40℃~50℃,20%~90% H.R

• Storage Temperature: -40℃~85℃10%~90% H.R.

• IP rating : IP66

• Warranty: 5 years

Packing sheet

Application

It is suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.

Service from us

1. Professional engineer to make a Dialux imitate for street lighting,warehouse lighting,stadium lighting and sport centre lighting etc
2. Professional person communicate with you before the order
3. OEM&ODM, also provide customized service
4. Distributorship are offered for your unique design and some our current model
5. Protection of your sales area, ideas of design and all your private information
6. Provide strict quality check for each part,each process before export
7. Provide complete post-sale service,including installation,technical guide
