Waterproof Omni Directional GSM / CDMA / PCS / 3G / WLAN Ceiling Mount Multiband Antenna
Waterproof Omni Directional GSM / CDMA / PCS / 3G / WLAN Ceiling Mount Multiband Antenna
Waterproof Omni Directional GSM / CDMA / PCS / 3G / WLAN Ceiling Mount Multiband Antenna
Waterproof Omni Directional GSM / CDMA / PCS / 3G / WLAN Ceiling Mount Multiband Antenna
Waterproof Omni Directional GSM / CDMA / PCS / 3G / WLAN Ceiling Mount Multiband Antenna
Waterproof Omni Directional GSM / CDMA / PCS / 3G / WLAN Ceiling Mount Multiband Antenna
Waterproof Omni Directional GSM / CDMA / PCS / 3G / WLAN Ceiling Mount Multiband Antenna
Waterproof Omni Directional GSM / CDMA / PCS / 3G / WLAN Ceiling Mount Multiband Antenna
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSC-800-2500-5A
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

Waterproof Omni Directional GSM / CDMA / PCS / 3G / WLAN Ceiling Mount Multiband Antenna

Feature:
● Good appearance
● Full day for working ,waterproof
● Optimized dimension
● Board band

Application:
● Indoor signal coverage
● GSM/CDMA/PCS/3G/WLAN
● Wireless transmission

Specification

Model NO

RSC-800-2500-5A

Electric Spec

Frequency rang-MHz

806～960/1710～2500

Bandwidth -MHz

154/790

Gain -dBi

5

beam width -°

H:115 V:55/H:50 V:40

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

Φ185×90

Antenna weight-kg

0.25

Working Temperature -°c

-40～60

Radome color

white

Mounting way

twisted with screw

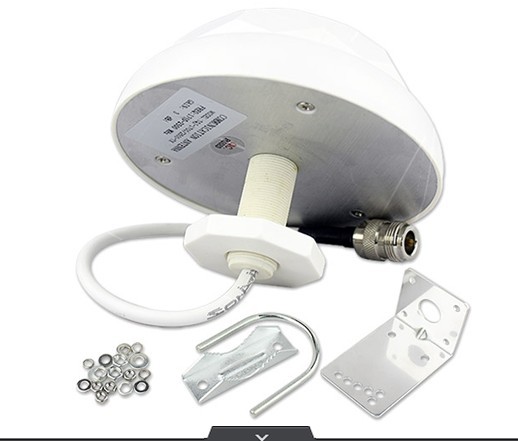

Antenna details :

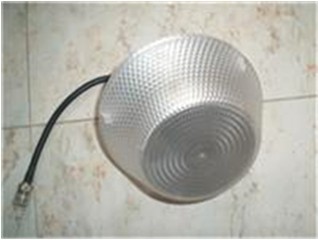

Application Example :

Install demonstration

View of us ;
