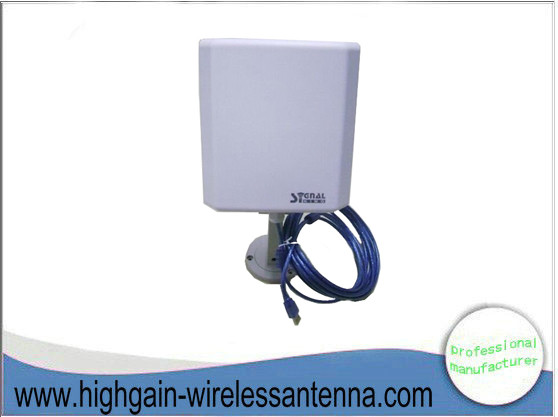

network WLAN Outdoor WI FI PC USB Wireless Adapters 1000mv with 14dbi Antenna
network WLAN Outdoor WI FI PC USB Wireless Adapters 1000mv with 14dbi Antenna
Specifications
Place of Origin :
China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSWK-H150
MOQ :
100
Price :
15~20 USD
Delivery Time :
1 Week after received payment
Payment Terms :
TT in advance
Product name :
PC USB Wireless Adapters
Chipset :
Ralink 3070 (1000mW)
feature :
Waterproof Housing/casing for outdoor use
Comply :
802.11 n/b/g
Operating distance :
up to 1500 meters in free space
Standard :
IEEE 802.11N, IEEE 802.11b, IEEE 802.11g
Description

network WLAN Outdoor WI FI PC USB Wireless Adapters 1000mv with 14dbi Antenna

Feature:

Comply with 802.11 n/b/g

Waterproof Housing/casing for outdoor use

Chipset: Ralink 3070,

Detachable Panel antenna(14DBI)

High Output Power up to 1000mW (30dBm) for extend the coverage range up to 10x than standard USB adapters

Operating distance of up to 1500 meters in free space, depending on surrounding environment

Plug -and-Play compatible with all computers

High security 64/128/256bit WEP Encryption, TKIP, WPA, WPA-PSK/WPA2-PSK encryptions and mechanisms in addition to the adapters QSS (Quick Secure Setup)

Software AP Function, Support PSP, X-Link, QoS, WMM.

Specifications:

Model

RSWK-H150

Standard

IEEE 802.11N, IEEE 802.11b, IEEE 802.11g

Chipset

Ralink 3070 (1000mW)

Frequency Band

2.412GHz ~ 2.484GHz unlicensed ISM band

Access Protocol

CSMA/CA

Number of operation channel

2.412~2.462GHz (Canada, FCC) / 11 Channels

2.412~2.484GHz (Japan, TELEC) / 14 Channels

2.412~2.472GHz (Euro, ETSI) / 13 Channels

Data Rate

IEEE 802.11b: 1, 2, 5.5, 11Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

IEEE 802.11n: 150Mbps

RF Output Power(Typical)

802.11g: up to 27 ± 1 dBm

802.11b: up to 30 ± 1 dBm

802.11n: up to 21+-1dBm

Receive Sensitivity

Operating at 11Mbps:-82dBm@8%PER,54Mbps:-65dBm@10%PER

Power Consumption

Transmit:800mA ; Receive:400mA

Antenna

Panel 14dbi outdoor use

Security

WEP (64/128/256bit), WPA, WPA-PSK, WPA2 TKIP/AES, WPA2-PSK

I/O Interface

USB2.0/1.1

Operating System

Windows98SE, ME, 2000, XP, SP2, Vista, MAC, Linux, Windows 7

Operating Temperature

-20 ~ 70 Celsius

Storage Temperature

-40 ~ 80 Celsius

Humidity

10 ~90% (non-condensing)

Size

118mm x 200mm x 88mm(L x W x H)

Weight

1kg
