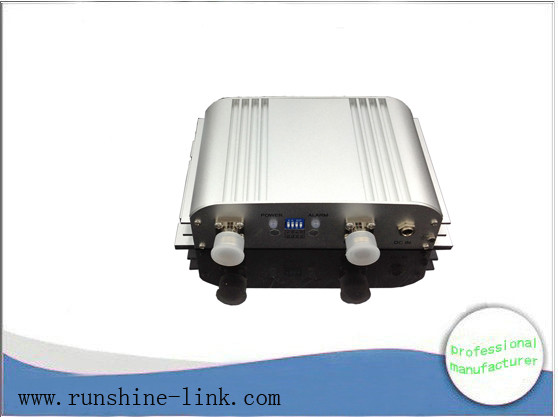

6 W Cell Phone Signal Amplifier , 700MHZ 15dBm and LTE
6 W Cell Phone Signal Amplifier , 700MHZ 15dBm and LTE
Specifications
Place of Origin :
China
Brand Name :
Runshine
Certification :
CE ROSH FCC
Model Number :
RSFD-LTE700-20
MOQ :
10
Delivery Time :
1 Week after confirmed payment
Payment Terms :
TT/ Western union / Paypal / Money gram
Supply Ability :
10000 set / month
Model No :
RSFD-LTE700-20
Frequency Range :
Uplink:746 ~ 756 MHz Downlink:777 ~ 787 MHz
Output Power :
Uplink:15 ±1dBm Downlink:20 ±1dBm
Gain :
Uplink:65 ±2dB Downlink:65 ±2dB
VSWR :
≤2
Power Comsumption :
< 6W
Description


6 W Cell Phone Signal Amplifier , 700MHZ 15dBm and LTE


Function:


●Making your mobile phone signal stronger.
●Making you keep in touch with others smoothly in everywhere
●Cell phone signal amplifier repeater booster designed to solve
the mobile phone weak signal.


Application:


● Designed to solve the mobile phone weak signal.
● Underground parking area, Underground market.
● Department Store, Home, Office, Commercial Center.
● Stadium, School, Hospital, Hotel, Subway station etc.


Feature:


● ALC ensure output level stable and adjustable continuously.
● Low power consumption and avoid to interference to BTS.
● LED indicate and judge to signal level of uplink and downlink.
● AGC and MAC function.
● Customized band selective.
● With the amplified linear power, the intermodulation and and
spuriousness are suppressed effectively.
● Compact design, to easy or and convenient installation.

Model No

RSFD-LTE700-20

Parameter data

Uplink

Downlink

Frequency Range

746 ~ 756 MHz

777 ~ 787 MHz

Output Power

15 ±1dBm

20 ±1dBm

Gain

65 ±2dB

65 ±2dB

Bandwidth

Wide Band

Automatic Gain Control

＞20dB

Ripple in Band

≤5dB

Intermodulation Products

9KHz~1GHz

≤ -36 dBm

1GHz~12.75GHz

≤ -30 dBm

Noise Figure @ max. gain

≤ 6 dB

VSWR

≤2

MTBF

＞50000 hours

Power Supply

AC:90~265V, 50/ 60Hz；DC:5V 2A

Power Comsumption

< 6W

Impedance

50 ohm

Mechanical Specification

RF Connector

N-Female

Cooling

Heatsink Convection cooling

Dimensions (D x W xH )

176*100*44(mm)

Weight

0.8Kg

Installation Type

Wall Installation

Environment Conditions

IP40

Humidity

< 90%

Operating Temperature

-10℃ ~ 55℃
