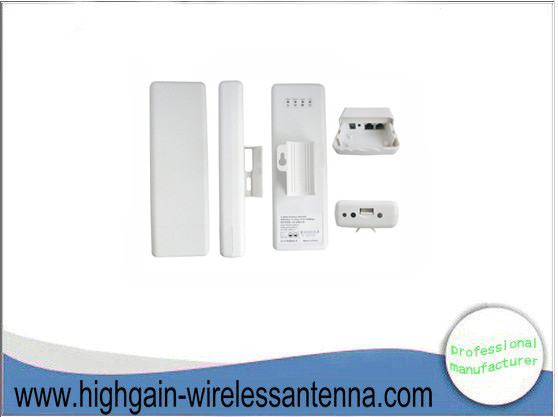

High Transmission Wireless AP Router 12V / 24V PoE , Wireless Access Point
High Transmission Wireless AP Router 12V / 24V PoE , Wireless Access Point
Specifications
Place of Origin :
China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RS-CPE-58
MOQ :
100
Price :
400~450USD
Delivery Time :
within 1 week
Payment Terms :
TT in advance
Supply Ability :
10000/month
Description

High Transmission Wireless AP Router 12V / 24V PoE , Wireless Access Point

Features :

- 2T2R,5.8GHz only

- Data Rate up to 300Mbps

- Signal Strength display(4 levels)

- Multiple SSID up to 4

- QoS:Traffic Control & WMM

- Transmitting power and distance control(ACK Timeout)

- High output transmission power and receiving sensitivity optimized

- Support PTP and PTMP(Point to Multi-point)

- Multi-operation mode :AP/Gateway/ WISP(CR)/WDS /Client Bridge

- WPA2/WPA/AES/TKIP,SSH and 802.1x Authenticator

- MAC & IP Address and URL Filter

- Traffic statistics based port

- Build-in WatchDog Timer

- Supports Ping Watch Dog and Wireless Speed Test

- Built-in NAT and DHCP server supporting Address Reservation

- Supports UPnP, Dynamic DNS, Static Routing

- Supports PPPoE, Dynamic IP, Static IP Internet Access

- 2x LAN(10/100Mbps)FE

- Web-based Administration Manager

- IP65 outdoor Weather-proof housing

- 14dBi dual-polarized antenna to build long distance Wi-Fi connection

- Passive POE(24V input) for flexible deployment

- Emergency Recovery Push button Provide a self-aid page for users in case of firmware upgrade failure

Specification:

Specification
Hardware
MCU AR9344
RF AR9344
Memory 64MB DDR RAM
Flash 8MB(May extend to 16MB)
Interface 2 x RJ-45 for 10/100 Mbps
1 x Reset button(reset & factory defaults)
1 x Power DC Jack
Power 12V/1A DC Jack or 24V/1A Passive POE
RF
Frequency 802.11a/n:
5.180 GHz ~ 5.850 GHz
Modulation OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Throughput 300 Mbps
Sensitivity 802.11n HT40(5.8GHz) 802.11n HT20(5.8GHz) 802.11a
-83dBm @ MCS0 -86dBm @ MCS0 - 89dBm @ 6Mbps
-65dBm @ MCS7 -68dBm @ MCS7 - 73dBm @ 54Mbps
Output Power Radio1(WLAN1)
802.11n(5.8GHz)(± 1.5dBm) 802.11n(5.8GHz)(± 1.5dBm) 802.11a(± 1.5dBm)
HT40 @ MCS0~2/MCS8~10 HT20 @ MCS0~2/MCS8~10 26.5dBm @ 6~24Mbps
26.0dBm @ MCS3/MCS11 26.5dBm @ MCS3/MCS11 26dBm @ 36Mbps
25.5dBm @ MCS4/MCS12 26.0dBm @ MCS4/MCS12 26dBm @ 48Mbps
25.0dBm @ MCS5/MCS13 25.5dBm @ MCS5/MCS13 25dBm @ 54Mbps
24.5dBm @ MCS6/MCS14 25.0dBm @ MCS6/MCS14
24.0dBm @ MCS7/MCS15 24.5dBm @ MCS7/MCS15
Antenna Internal 14dBi directional ANT(Horizontal Beamwidth: 60º/Vertical Beamwidth: 25º)
