Anti-interference 890 - 960 MHZ GSM Whip Magnetic Base Antenna Bandwidth 70 MHz
Anti-interference 890 - 960 MHZ GSM Whip Magnetic Base Antenna Bandwidth 70 MHz
Specifications
Model Number :
RSM-900-3
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

Anti-interference 890 - 960 MHZ GSM Whip Magnetic Base Antenna Bandwidth 70 MHz


Application:
900MHZ GSM System
Special designed for Car using

Feature:
● Good appearance
● Powerful magnetic base
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR,Strongly Anti-interference

Specification

Model NO

RSM-900-3

Electric Spec

Frequency rang-MHz

890～960

Bandwidth -MHz

70

Gain -dBi

3

beam width -°

H:360 V:68

VSWR

≤2

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

SMA Male or others

Mechanical Specification

Size -mm

Φ30*297

Antenna weight-kg

0.085

Working Temperature -°c

-40～60

Radome color

Black

Mounting way

mount by magnetic

Model NO

RSM-900-3

Electric Spec

Frequency rang-MHz

890～960

Bandwidth -MHz

70

Gain -dBi

3

beam width -°

H:360 V:68

VSWR

≤2

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

SMA Male or others

Mechanical Specification

Size -mm

Φ30*297

Antenna weight-kg

0.085

Working Temperature -°c

-40～60

Radome color

Black

Mounting way

mount by magnetic

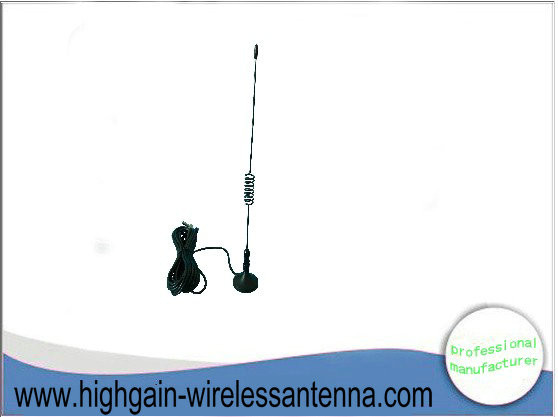

Antenna details :

Application example:

View of us ;
