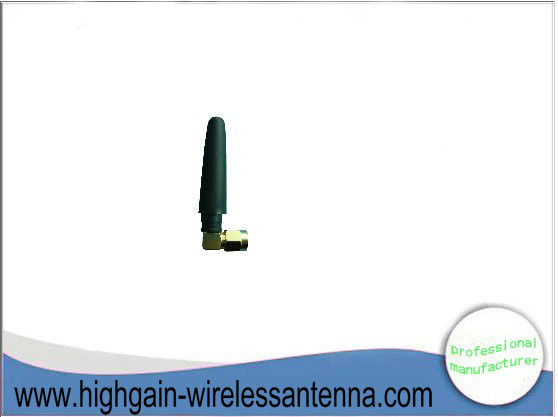

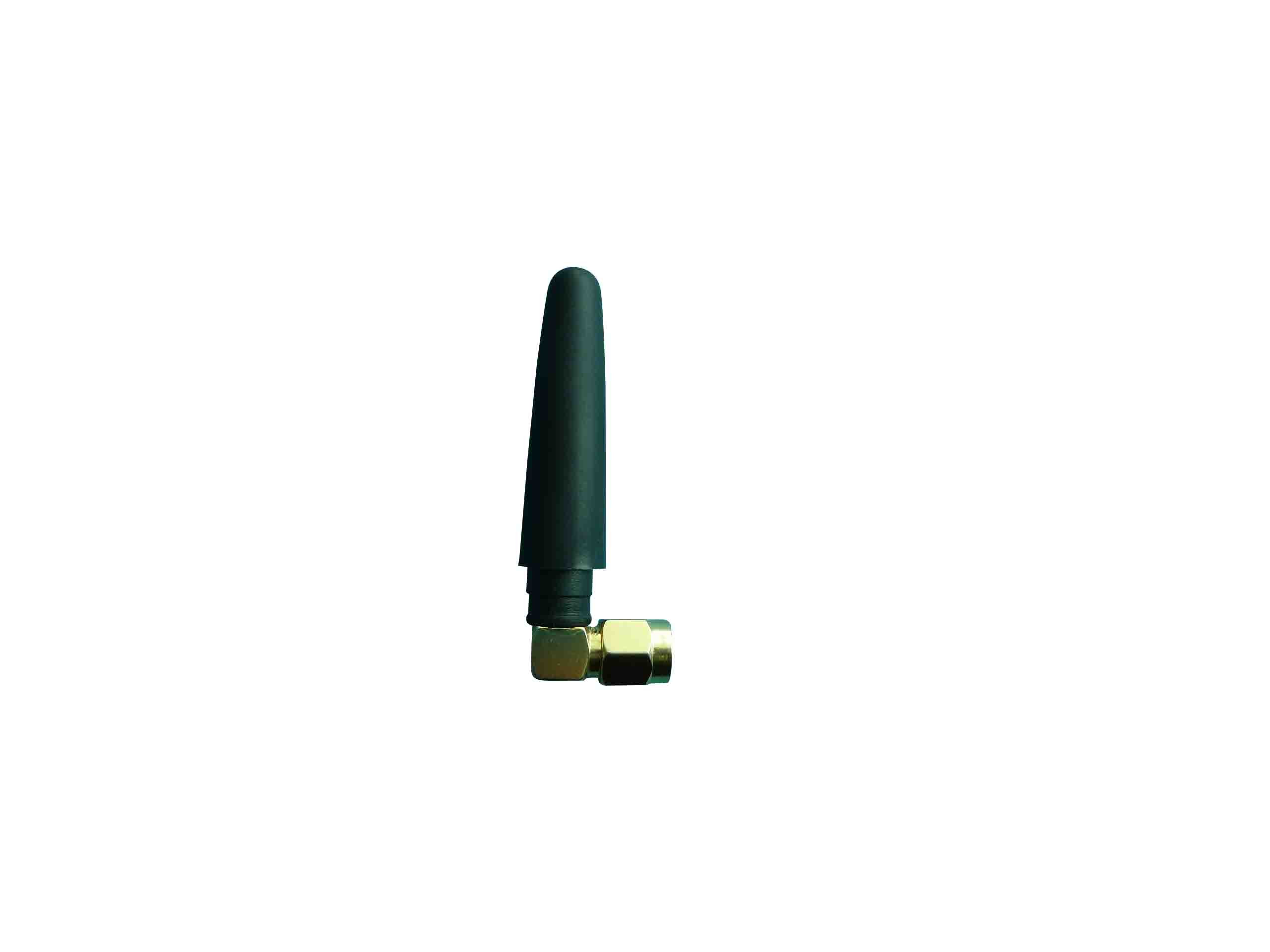

50.5 mm short Black Vertical Rubber Duck Antennas / Terminal Antenna 315MHZ
50.5 mm short Black Vertical Rubber Duck Antennas / Terminal Antenna 315MHZ
50.5 mm short Black Vertical Rubber Duck Antennas / Terminal Antenna 315MHZ
50.5 mm short Black Vertical Rubber Duck Antennas / Terminal Antenna 315MHZ
50.5 mm short Black Vertical Rubber Duck Antennas / Terminal Antenna 315MHZ
50.5 mm short Black Vertical Rubber Duck Antennas / Terminal Antenna 315MHZ
Specifications
Model Number :
RST-315-2
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
Rubber Duck Antenna
Feature :
Full day for working ,waterproof,High Gain, Lower VSWR
Radome color :
Black
Frequency rang-MHz :
315+/-10
Bandwidth -MHz :
20
Gain -dBi :
2.5
Description

50.5 mm short Black Vertical Rubber Duck Antennas / Terminal Antenna 315MHZ

Application:


● Terminal Antenna
● 315MHZ RIFID system
● Wireless data transmission

Feature:

● Full day for working ,waterproof
● Good appearance
● Durable, corrosion resistance
● Optimized dimension
● High Gain, Lower VSWR,Strongly Anti-interference

Specification

Model NO

RST-315-2

Electric Spec

Frequency rang-MHz

315+/-10

Bandwidth -MHz

20

Gain -dBi

2.5

beam width -°

H:360 V:65

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

SMA Male or others

Mechanical Specification

Size -mm

50.5

Antenna weight-kg

0.02

Working Temperature -°c

-40～60

Radome color

Black

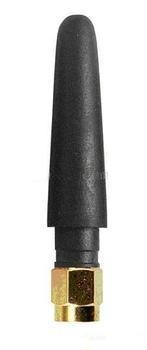

Antenna details :
