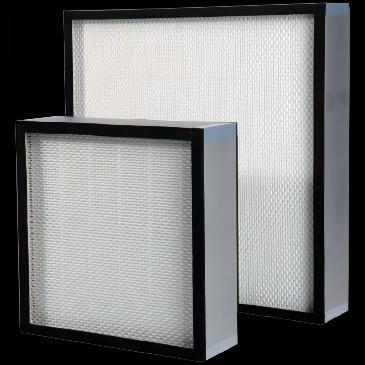

PGHP Series High-Temperature Resistant High-Efficiency Particle Air HEPA Filter Cartridge
PGHP Series High-Temperature Resistant High-Efficiency Particle Air HEPA Filter Cartridge
Specifications
Brand Name :
Pullner
Model Number :
PGHP
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5-8 working days
Packaging Details :
Carton Box
Description
1. Technical Data
Dimensions Filter Grade Rated Air Flow Initial Resistance at Rated Air Flow Recommended Air Flow
610x610x150mm H11 H13 H14 1000m³/h ≤200/235262Pa 600~1000m³/h
610x457 X150mm 750m³/h 450~750m³/h
305 x 610x150mm 500m³/h 300~500m³/h
915x610x150mm 1500m³/h 900~1500m³/h
1220 x 610 x 150mm 2000m³/h 1200~2000m³/h
630 x 630 x 220mm 1500m³/h 900~1500m³/h
945 x 630 x 220mm 2200m³/h 1300~2200m³/h
1260 x 630x150mm 2000m³/h 1200~2000m³/h
1260 x 630 x 220mm 3000m³/h 1800~3000m³/h
610x 610x292mm 2000m³/h 1200~2000m³/h
305x610x292mm 1000m³/h 600~1000m³/h
  • H11 99.5~99.94%@0.3μm
  • Test Error of Initial Resistance: ≤15%
  • H13 99.95~99.994%@0.3μm
  • H14 99.995~99.9994%@0.3μm

2. Specifications
Model PGHP
Dimensions Customizable
Frame Material Galvanized Sheet/304 Stainless Steel/Aluminum Alloy
Filter Medium Ultra-Fine Glass Fiber
Separator Material Aluminum Foil
O-ring Rubber/Silicone
Seal Adhesive High-Temperature Silicone/Glass Fiber Felt
Operating Temperature 150℃/250℃/300℃/350℃
MPPS Efficiency H13≥99.95%/H14≥99.995%

3. Applications
Ventilation and air conditioning systems in high-humidity conditions and environments with high fire resistance requirements
Cleanrooms and other environments requiring strict air cleanliness
