10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration
10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration
10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration
10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration
10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration
10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration
10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration
10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration
Specifications
Brand Name :
Pullner
Model Number :
PRS
Certification :
ISO9001,ISO14001
Place of Origin :
Shanghai, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100 pcs/day
Packaging Details :
Export standard packaging
Description
PRS Series Capsule Filter for Lithium Battery Slurry Filtration
Product Introduction

The PRS series integrated filter cartridge is engineered for ultra-high flow applications, making it ideal for high-speed coating production lines. This advanced design incorporates seven wound filter cores that significantly extend service life and reduce replacement frequency, meeting the rigorous demands of high-speed coating processes. The bottom features a specialized drain outlet for efficient liquid recovery and reuse.

Application Fields
  • Slurry filtration
  • Coating liquid filtration
  • Colloidal product filtration
  • Filtration of liquids containing toxic or hazardous substances

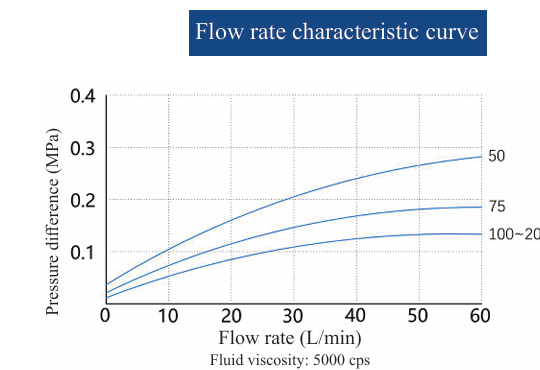

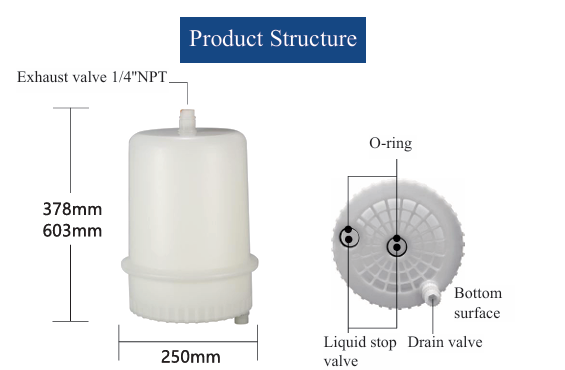

Flow Rate Curve and Product Structure
10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration
Product Specifications
Model PRS
Length 378mm
OD 250mm
Media Material PP
Material of Outer Core PP
Thread type of the vent valve 1/4" NPT
Design Pressure 0.8Mpa
Maximum Operating Pressure 0.5Mpa@20℃
Maximum Operating Temperature 80℃
Order Information

PRS --10-- 100H-- E

Series Length Micron O-ring
PRS 10=10" 0500=5μm 1000=10μm 1500=15μm 3000=30μm 5000=50μm 7500=75μm 100H=100μm 120H=120μm 150H=150μm 200H=200μm 250H=250μm 300H=300μm E=EPDM
Frequently Asked Questions
Q1: Who is the manufacturer and brand of the filter cartridges?
A1: Shanghai Pullner Filtration Technology Co., Ltd.
Q2: Can you provide samples?
A2: We offer 1-2 free samples. Buyers only need to cover the shipping cost.
Q3: What is the delivery time?
A3: Delivery time is usually within 5-10 working days depending on the order quantity.
Product Name Daily Production Capacity
High Flow Filter Cartridge 500 pcs/day
Condensate Filter Element 200 pcs/day
Microporous Pleated Filter Cartridge 200 pcs/day
Membrane Filter Cartridge 100 pcs/day
Q4: Is the filtration accuracy nominal or absolute?
A4: Our standard products use nominal rating. However, we can customize absolute-rated filters based on your application requirements.
Q5: Which brands can your filters replace?
A5: Our filters can be used as replacements for major brands such as PALL, 3M, PARKER, GARVER, and others.
Q6: What is the minimum order quantity (MOQ)?
A6: As a manufacturer, we accept a minimum order quantity of just 1 piece.
