Description

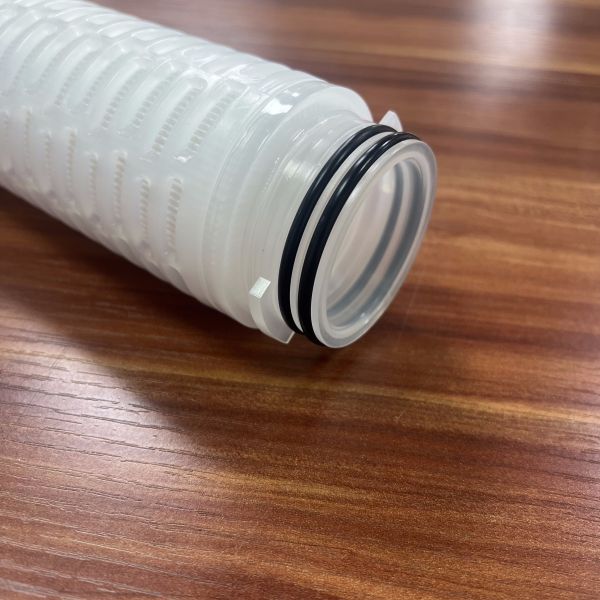

30inch PP Pleated Filter Cartridge
High-performance PP Pleated Filter Cartridge with 68.5mm outer diameter, designed for efficient water and liquid filtration across various industrial applications.
Applications
  • Food and Beverage: Beer, wine, juice, soda, oral liquid filtration; additives and oil filtration
  • Water Treatment: Urban water supply, industrial water filtration; power plant condensate filtration
  • Metal Processing: Cutting fluid and coolant filtration; lubricating oil filtration
  • Fine Chemicals: Catalyst filtration; cosmetics raw materials and finished products filtration; chemical auxiliary filtration
  • Petrochemical Industry: Aviation kerosene filtration; diesel and fuel filtration
30inch PP Pleated High Flow Filter Cartridge with 0.45um Polypropylene Media for Water Filtration
Technical Specifications
Parameter Specification
Filter Medium Polypropylene (PP)
Support/Drainage Polypropylene (PP)
Core/Cage/End Cap Polypropylene (PP)
Outside Diameter 2.7" (68.5mm)
Length 10", 20", 30", 40"
Micron Ratings 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um
Filtration Area 0.4-0.7m²
Max Operating Differential Pressure ΔP≤0.35MPa at 25℃
Max Operating Differential Pressure (Reverse) ΔP≤0.28MPa at 60℃
Max Operating Temperature 80℃ (Stainless steel support recommended above 50℃)
Sterilization Temperature 30 minute cycles @121℃
Max Operating Pressure 4bar/21℃, 2.4bar/80℃
Material Construction
Component Material
Filter Media Polypropylene (PP)
Support/Drainage Polypropylene (PP)
Cage/Core/End Caps Polypropylene (PP)
Seal Material Silicone, NBR, Vit, EPDM
Manufacturer Profile
30inch PP Pleated High Flow Filter Cartridge with 0.45um Polypropylene Media for Water Filtration
Shanghai Pullner Filtration Technology Co., LTD.
Established: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, and related filtration products.
Domestic Offices in China
Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China
Global Branches and Offices
UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow)
30inch PP Pleated High Flow Filter Cartridge with 0.45um Polypropylene Media for Water Filtration 30inch PP Pleated High Flow Filter Cartridge with 0.45um Polypropylene Media for Water Filtration
Certifications
30inch PP Pleated High Flow Filter Cartridge with 0.45um Polypropylene Media for Water Filtration 30inch PP Pleated High Flow Filter Cartridge with 0.45um Polypropylene Media for Water Filtration 30inch PP Pleated High Flow Filter Cartridge with 0.45um Polypropylene Media for Water Filtration 30inch PP Pleated High Flow Filter Cartridge with 0.45um Polypropylene Media for Water Filtration
Frequently Asked Questions
What is the brand name of this product?
The brand name is PULLNER.
What is the model number of this product?
The model number is PLZ.
Where is this product manufactured?
This product is made in China.
What is the main function of this product?
The main function of this product is to filter beverages and various industrial liquids.
What is the recommended usage time for this product?
The recommended usage time for this product is 6-12 months.
