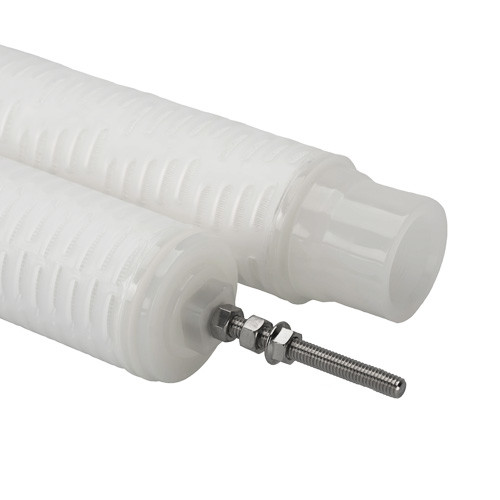

The High Flow Pleated PHZ Filter Cartridge is engineered for high-volume water filtration applications. Utilizing deep-pleated polypropylene (PP) or glass fiber media, this cartridge delivers exceptional high flow rates, low pressure drop, and extended service life.

Featuring a 6" (152 mm) large diameter design with no center core and dedicated inside-to-outside flow direction, contaminants and particles are efficiently retained inside the cartridge. This design enhances maintenance efficiency and extends filtration cycles while reducing the number of cartridges and housing size required, significantly lowering capital investment, installation space, and labor costs.

• High filtration area, high flow rate - Large effective filtration area provides low differential pressure and high throughput
• High dirt-holding capacity, longer service life - Multi-layer gradient pore structure (deep media design) improves particle retention and dirt loading capacity, extending replacement intervals and reducing operating costs
• Wide micron ratings and multiple lengths available - Micron ratings from 1 µm to 70 µm and lengths of 20" / 40" / 60" to match diverse filtration requirements

• Drinking water treatment
• Commercial water filtration
• RO pre-filtration for seawater desalination

• Energy, coatings, graphite
• Petrochemical, electroplating
• Mining, machining, industrial water treatment

• Make-up water
• Condensate water
• Cooling water pre-filtration

• Outer Diameter (OD): 6" (152 mm)
• Length: 20" (508 mm), 40" (1016 mm), 60" (1524 mm)

• Filter Media: Polypropylene (PP), pleated depth
• Support/Drainage: Polypropylene
• End Caps: Glass Fiber Reinforced Polypropylene
• Seal Materials: NBR / Silicone / EPDM / Viton

• Micron Ratings: 1 µm, 5 µm, 10 µm, 15 µm, 20 µm, 40 µm, 70 µm
• Max. Operating Temperature: 82°C
• Max. Differential Pressure (Inside → Outside): 3.44 bar @ 82°C
• Recommended Replacement ΔP: 2.5 bar @ 20°C
• Max. Flow Rate: 40": 70 m³/h, 60": 110 m³/h
• Filtration Direction: Inside to outside



Ordering information:
