Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Specifications
Brand Name :
PULLNER
Model Number :
PHSF
Certification :
ISO45001/19001/14001
Place of Origin :
CHINA
MOQ :
1 PC
Price :
Negotiate
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Supply Ability :
100PCS Per Month
Delivery Time :
20-25 work days
Packaging Details :
Wooden carton after poly bag.
Description

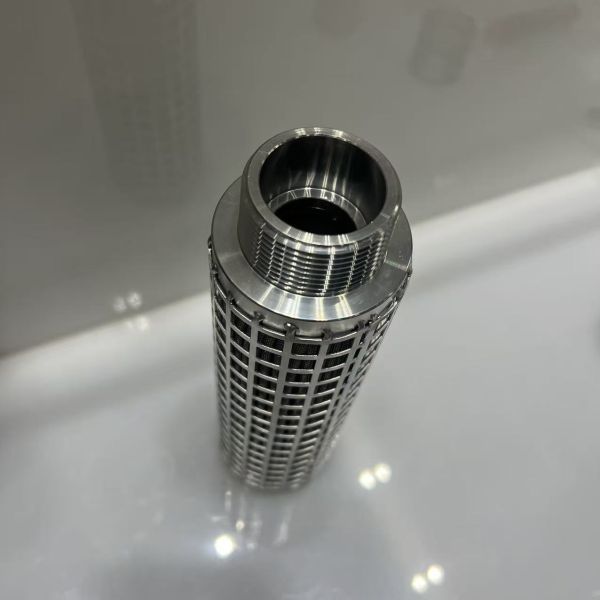

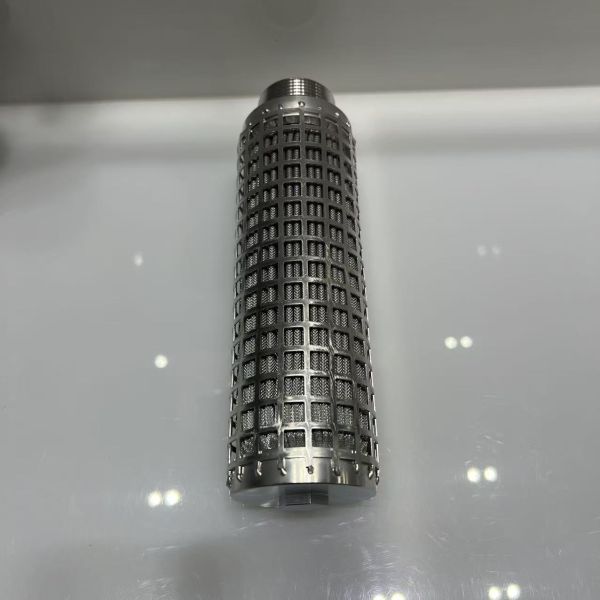

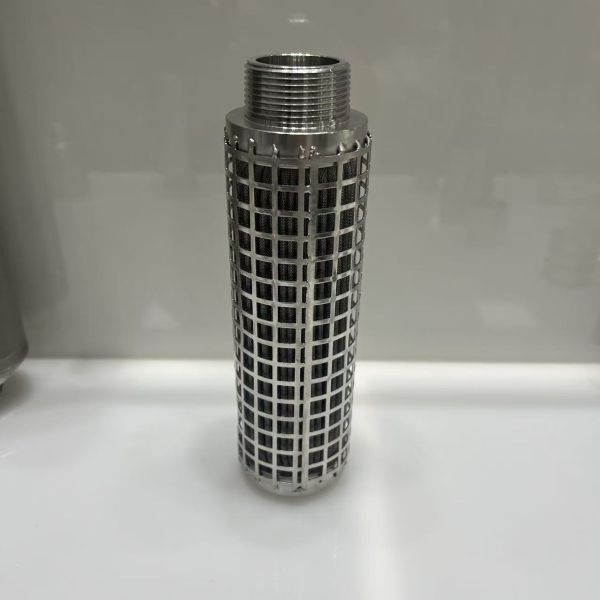

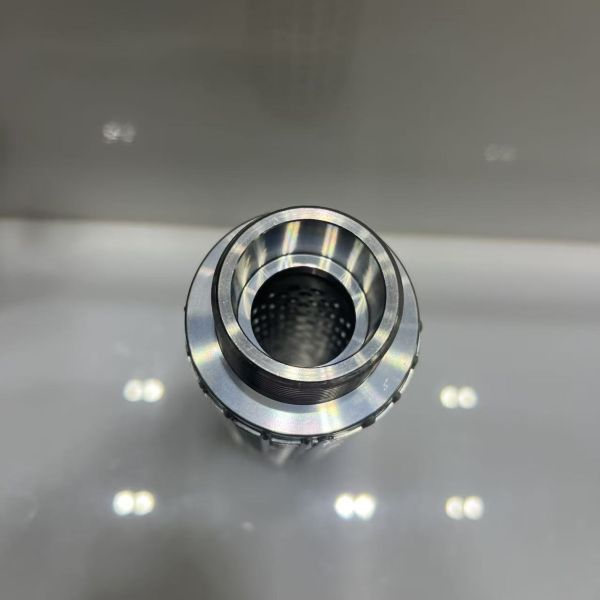

PHSF Stainless Steel Pleated Felt Filter Cartridges constructed with stainless steel sintered felt and shaped during the pleating process. These filters have a large filtration area. The stainless steel sintered felt is made from stainless steel fiber, which is then sintered under high temperature to form the porous depth filtration material.
PHFS Filter Cartridges features including a graded pore size from coarse upstream to fine downstream, which results in a higher dirt holding capacity and longer service life.
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Specification
Core/Outer Guard
SUS 304/316L Stainless steel porous plate
Filter Medium
Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh

Filter net: Required accuracy of stainless steel wire mesh

Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh
End caps
SUS 304/316L Stainless steel
Max. operating differential pressure
5.0bar
Max. operating temperature
480℃
Standard OD
Standard Length
Filter area
65mm

Customized on request
5in.(127mm)
0.096m2
10in.(254mm)
0.19 m2
20in.(508mm)
0.38 m2
30in.(762mm)
0.57 m2
40in.(1016mm)
0.76 m2
Company Profile
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Temperature Resistance, Graded Pore Size, and Large Filtration Area
Shanghai Pullner Filtration Technology Co.,Ltd.
Our company has a domestic first-class physical and chemical laboratory with mass spectrometer (ICP-MS), gas chromatography (GC-MS), liquid chromatography (LC-MS), scanning electron microscope (including EDS energy spectrum), particle counter (5 sets), cartridge efficiency test bench (IFTS, France), membrane pore size distribution instrument, online particle detector, membrane test bench, permeability tester, cartridge It can test and evaluate the performance of filter materials, cartridges and filtration equipment, and also help customers analyze the difficult problems of filtration on the production line.
