Specifications
Brand Name :
Pullner
Model Number :
PLX
Certification :
ISO, FDA
Place of Origin :
Shanghai, China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
,D/A,L/C,D/P,T/T,Western Union
Supply Ability :
1000 pcs per week
Packaging Details :
Export standard packaging
Description
PLX Series String Wound Filter Cartridge

The PLX series filter cartridge is engineered using textile fibers—including polypropylene, absorbent cotton, or glass fiber—manufactured through a specialized winding process. These fibers are tightly wound around a porous framework constructed from either polypropylene (PP) or stainless steel (SS) porous tubes.

This unique manufacturing process creates a honeycomb filtration structure characterized by sparse outer layers and dense inner layers, providing exceptional filtration performance for industrial applications.
Key Performance Features:
  • Effective removal of suspended solids from fluids
  • Efficient filtration of rust particles and various impurities
  • Minimal pressure drop across the filter media
  • High contaminant holding capacity for extended service life
  • Robust construction suitable for demanding industrial environments
Material Construction



Filter media

PP:Polypropylene

CO:Degreasing Cotton

GF:Glass Fiber

FO:Organic Fiber
Center Core PP, Stainless Steel 304, 316L

PLX series filter cartridge is made of textile fiber (polypropylene, absorbent cotton or glass fiber) according to a specific process, tightly wound on a porous framework (PP or SS porous tube) to form a honeycomb structure with sparse outside and dense inside, which can effectively filter suspended solids in the fluid, Rust, particles and other impurities, with the characteristics of small pressure drop and large pollutant holding capacity.

Performance



Maximum Operating Temperature

PP:60℃

CO:120℃

GF:200℃

FO:120℃
Maximum Operating Differential Pressure 4.0bar
Recommend change-out Differential Pressure 2.0bar
Ordering Information

PLX A3 0500 40

Series Filter Layer/Center core Material Micron Length
PLX A1=PP/PP 0100 =1.0μm 05 =5"

A2=PP/SS(Stainless Steel) 0300 =3.0μm 10 =10"

A3=Degreasing Cotton/SS 0500 =5.0μm 20 =20"

A4=Glass Fiber/SS 1000 =10μm 30 =30"

A5=FO/SS 2500 =25μm 40 =40"


7500 =75μm 50 =50"


10000 =100μm 60 =60"


15000 =150μm 70 =70
Manufacture workshop

String Wound High Flow Filter Cartridge with Honeycomb Structure for seawater treatment plant

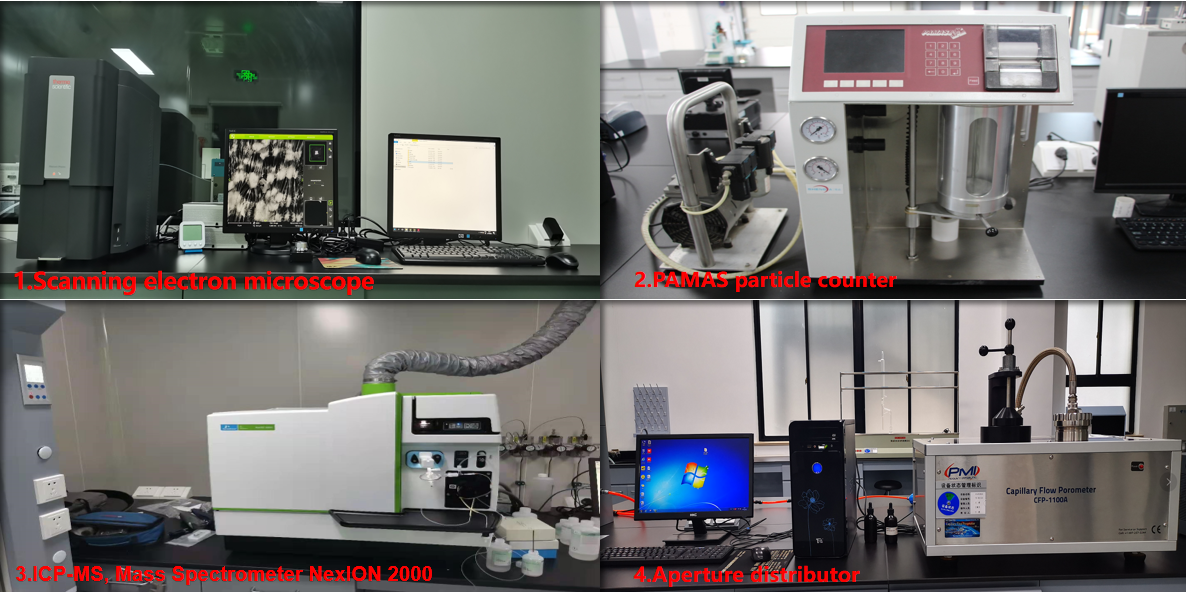

Pullner laboratory facilities:

String Wound High Flow Filter Cartridge with Honeycomb Structure for seawater treatment plant

FAQ
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
Q: Can I use our own designed package?
A: Yes, if you place formal order, size, color, logo and packaging style all can be customized.
Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
