40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration
40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration
40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration
40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration
40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration
40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration
40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration
40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration
40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration
40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration
Specifications
Brand Name :
PULLNER
Model Number :
PHFLH
Certification :
ISO9001, ISO45001, ISO14001
Place of Origin :
Shanghai, China
MOQ :
1 PC
Price :
To be negotiated
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100PCS Per Day
Delivery Time :
7-12 working days
Packaging Details :
Export standard carton box after poly bag. 4pcs per carton.
Description
Product Overview

PHFLH Series High Flow Filter Cartridge is engineered for demanding industrial applications requiring high-temperature resistance and exceptional flow rates.

Applications
  • Pharmaceutical industry: Pre-filtration of drugs, distilled water, biological products, various antibiotics
  • Electronics industry: Filtration of industrial water for electronics, microelectronics, and semiconductors
  • Industrial filtration: Energy, coatings, graphite, petrochemical, electroplating, mining, machining, industrial water treatment
Product Features
  • Single cartridge achieves flow rates up to 110m³/h
  • Special materials suitable for high-temperature conditions
  • Stainless steel outer cage ensures high structural strength
  • Filtration systems are 50% smaller than typical systems
  • Inside-to-outside flow direction captures all contaminants effectively
Technical Specifications
Outside Diameter 6" (152mm)
Length 20"/40"/60"
Model PHFLH
Filter Media Polyester
Support/Drainage Polyester
End Caps Glass Fiber Reinforced Polypropylene
Seals Material NBR, EPDM, Silicone
Micron Ratings 1μm, 5μm, 10μm, 15μm, 20μm, 40μm, 70μm, 100μm
Maximum Operating Temperature 121℃
Maximum Operating Differential Pressure 3.44bar @ 121℃
Suggested Replacement Pressure 2.5Bar @ 20℃
Suggested Design Flow 40": 70m³/h | 60": 110m³/h
Certifications
40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration

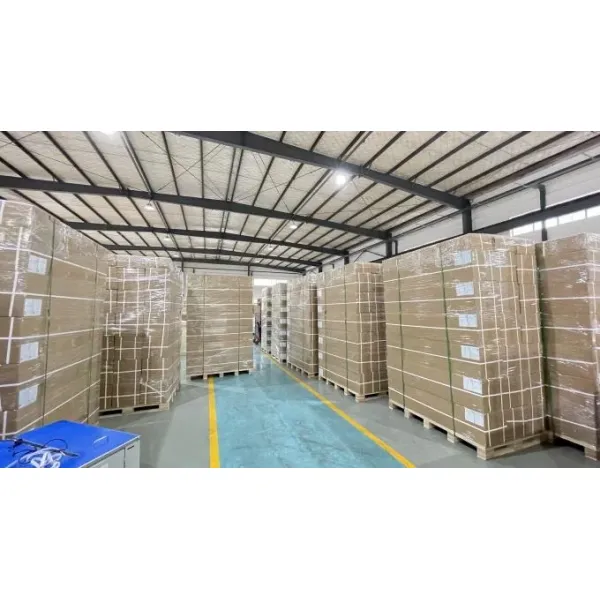

Packaging & Shipping

The High Flow Filter Cartridge is packaged in durable containers designed to ensure safe delivery and protect against damage during transit.

Each container is sealed to prevent dust and dirt contamination, and products are shipped via trusted carriers with careful handling and monitoring throughout transit.

40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration 40'' High Temperature Stainless Steel Filter Cartridge with 110m3/h Flow Rate for Industrial Filtration
