Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
Specifications
Brand Name :
Pullner
Model Number :
PHSF
Certification :
ISO45001
Place of Origin :
Shanghai, China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100 pcs per day
Packaging Details :
Export standard packaging
Description
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance

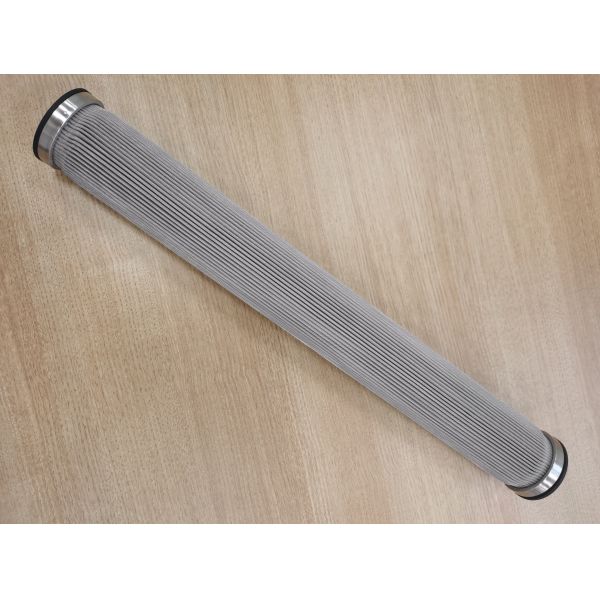

Stainless Steel Sintered Fiber Felt Filter Cartridge
The stainless steel sintered fiber felt filter cartridge is engineered for high-temperature and high-pressure filtration applications where strength, durability, and filtration efficiency are critical requirements.
This cartridge features a stainless steel inner support core and sintered stainless steel fiber felt media, delivering exceptional mechanical stability and consistent pore structure. An optional outer support cage can be integrated to enhance pressure resistance and extend service life in demanding operating environments.
With its all-metal construction, the filter cartridge provides outstanding resistance to high temperature, high pressure, corrosion, and thermal shock, making it ideal for continuous operation and repeated cleaning cycles.
Key Features
  • All-stainless-steel construction with no adhesives or binders
  • Sintered stainless steel fiber felt media with high porosity and permeability
  • Stainless steel inner core for robust mechanical support
  • Optional outer support cage for enhanced pressure resistance
  • High dirt holding capacity and stable filtration efficiency
  • Excellent resistance to high temperature and high pressure
  • Cleanable and reusable, suitable for backwashing and chemical cleaning
Typical Applications

Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance

Material Options
  • Filter media: Stainless steel fiber felt
  • Inner core: Stainless steel
  • Outer cage (optional): Stainless steel
  • Available grades: 304 / 316L / 310 / 904L (customizable)
Customization
Filter length, diameter, micron rating, end caps, and connection types can be customized according to application requirements. OEM and replacement designs are available.
Technical Specifications
Item Options / Range Description
Filter Media Stainless steel fiber felt High porosity, stable pore structure
Material Grade 304 / 316L / 310 / 904L Selectable based on temperature and corrosion resistance
Filtration Rating 20 / 40 /50/ 60 µm Other micron ratings available on request
Length 5" / 10" / 20" / 30" / 40" Customized lengths supported
Outer Diameter 60 /63/ 65 / 70 mm Or customized
Inner Core Stainless steel perforated tube Provides mechanical strength
Outer Support Cage None / Stainless steel cage Optional for high pressure conditions
Max Operating Temperature Up to 480°C Depending on material grade
Max Differential Pressure Up to 5.0 MPa Varies by structure and cage option
Sealing Type Flat gasket / O-ring Silicone, viton, PTFE optional
End Cap Type DOE / SOE / Customized Compatible with standard housings
Cleaning Method Backwash / Ultrasonic / Chemical Reusable and cleanable
Application Media Gas / Liquid / Polymer melt High temperature & high pressure service
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
Production Facilities
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
Packaging and Delivery
Stainless Steel Sintered Fiber Felt Filter Cartridge with High Temperature, Pressure, and Corrosion Resistance
