Backwashable High Flow PP Pleated Filter Cartridge for Water Treatment

General Description

The High Flow Pleated Filter Cartridge is designed for high-volume water filtration. It uses deep-pleated polypropylene (PP) or glass fiber media to deliver high flow, low pressure drop, and long service life.
With a 6" (152 mm) large diameter design, no center core, and a dedicated inside-to-outside flow direction, contaminants and particles are retained inside the cartridge, making maintenance more efficient and extending filtration cycles.
Its ultra-high flow capacity helps reduce the number of cartridges and housing size required, significantly lowering capital investment, installation space, and labor cost.

Key Features & Benefits

• High filtration area, high flow rate
Large effective filtration area provides low differential pressure and high throughput.

• High dirt-holding capacity, longer service life
Multi-layer gradient pore structure (deep media design) improves particle retention and dirt loading capacity, helping extend replacement intervals and reduce operating cost.

• Wide micron ratings and multiple lengths available
Micron ratings from 1 µm to 70 µm and lengths of 20" / 40" / 60" to match different filtration requirements.

Applications

Water Treatment

• Drinking water treatment

• Commercial water filtration

• RO pre-filtration for seawater desalination

Industrial Filtration

• Energy, coatings, graphite

• Petrochemical, electroplating

• Mining, machining, industrial water treatment

Power Plant

• Make-up water

• Condensate water

• Cooling water pre-filtration

Dimensions (Nominal)

• Outer Diameter (OD): 6" (152 mm)

• Length: 20" (508 mm), 40" (1016 mm), 60" (1524 mm)

Materials of Construction

(PP Pleated Depth Media)

• Filter Media: Polypropylene (PP), pleated depth

• Support/Drainage: Polypropylene

• End Caps: Glass Fiber Reinforced Polypropylene

• Seal Materials: NBR / Silicone / EPDM / Viton

(PP Melt Blown Media)

• Filter Media: PP melt blown

• Support/Drainage: /

• End Caps: Glass Fiber Reinforced Polypropylene

• Seal Materials: NBR / Silicone / EPDM / Viton

Filter Performance

• Micron Ratings: 1 µm, 5 µm, 10 µm, 15 µm, 20 µm, 40 µm, 70 µm

• Max. Operating Temperature: 82°C

• Max. Differential Pressure (Inside → Outside): 3.44 bar @ 82°C

• Recommended Replacement ΔP: 2.5 bar @ 20°C

• Max. Flow Rate:

  • 40": 70 m³/h

  • 60": 110 m³/h

• Filtration Direction: Inside to outside

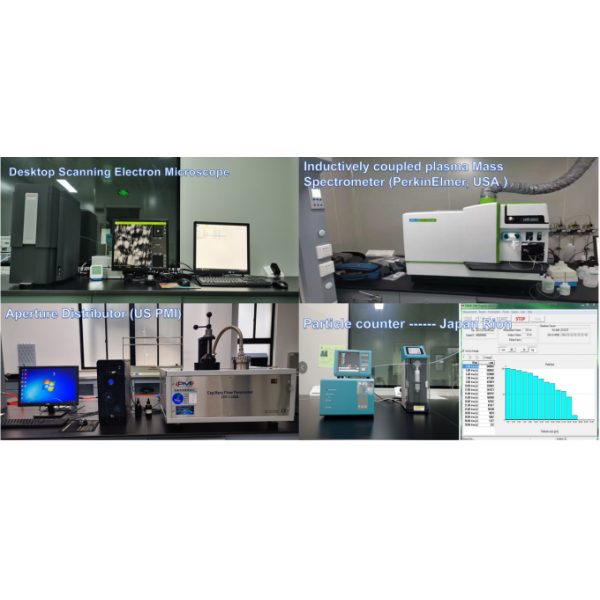

Pullner Laboratory:
