10inch PRS Series Integrated Saccular Filter Cartridge for New Energy Applications
PRS series filter cartridge

The PRS series integrated filter cartridge is engineered for ultra-high flow applications, making it ideal for high-speed coating production lines. This advanced design incorporates seven wound filter cores that significantly extend service life and reduce replacement frequency, meeting the rigorous demands of high-speed coating processes. The bottom features a specialized drain outlet for efficient liquid recovery and reuse.


Product Model PRS
Filter Cartridge Length 10inches,20inches
Outer Diameter 250mm
Enclosure Material PP
Filter Material PP
Exhaust valve thread model 1/4" NPT
Design pressure 0.8Mpa
Maximum working pressure differential 0.4Mpa@20℃
Highest working temperature 80℃
Series Length Micron Sealing Ring Material
PRS 10=10"
20=20''		 1000=10μm
1500=15μm
3000=30μm
5000=50μm
7500=75μm
100H=100μm		 120H=120μm
150H=150μm
200H=200μm
250H=250μm
300H=300μm		 E=EPDM
10inch PRS Series Integrated Saccular Filter Cartridge for New Energy Applications

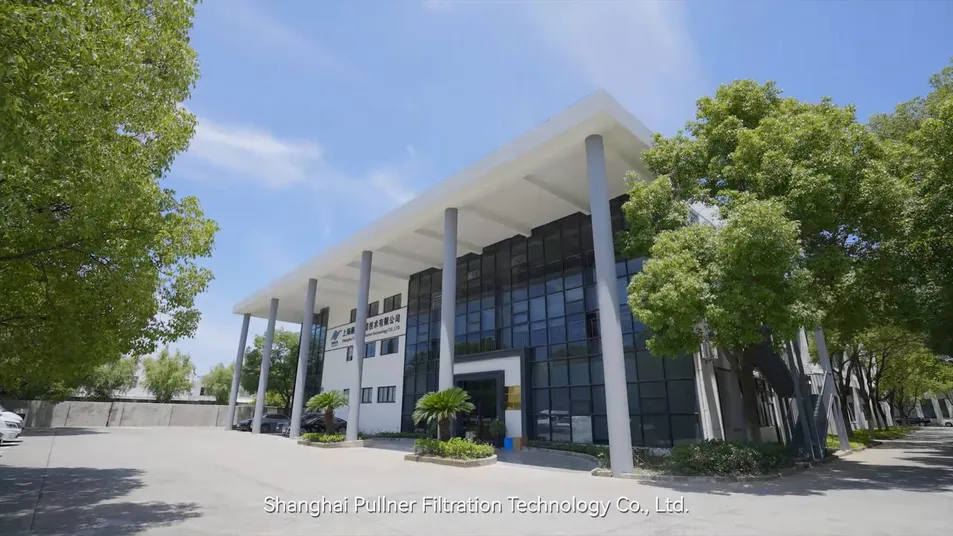

Shanghai Pullner Filtration Technology Co., LTD.

Shanghai Pullner Filtration Technology Co., Ltd., established in 2013, is a professional manufacturer of filter cartridges and filtration solutions.

Certifications
10inch PRS Series Integrated Saccular Filter Cartridge for New Energy Applications
10inch PRS Series Integrated Saccular Filter Cartridge for New Energy Applications
Shipping10inch PRS Series Integrated Saccular Filter Cartridge for New Energy Applications
FAQ
  • Q1: Who is the manufacturer and brand of the filter cartridges?

    A1: Shanghai Pullner Filtration Technology Co., Ltd.

  • Q2: Can you provide samples?

    A2: We offer 1–2 free samples. Buyers only need to cover the shipping cost.

  • Q3: Is the filtration accuracy nominal or absolute?

    A3: Our standard products use nominal rating. However, we can customize absolute-rated filters based on your application requirements.

  • Q4: Which brands can your filters replace?

    A4: Our filters can be used as replacements for major brands such as 3M, PARKER, GARVER, and others.
