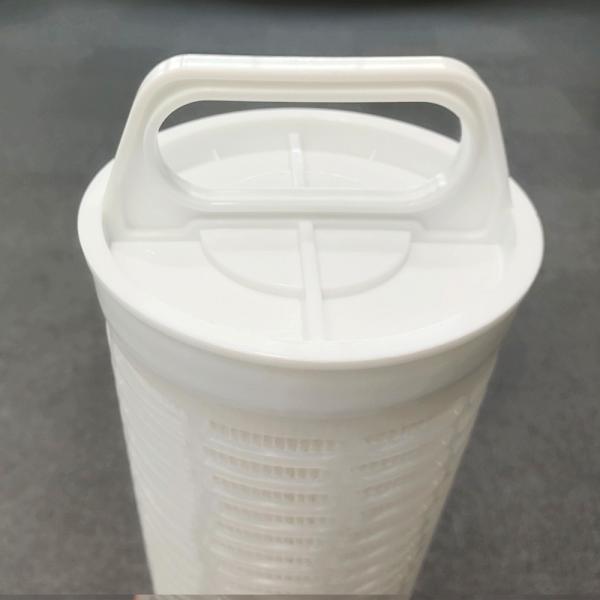

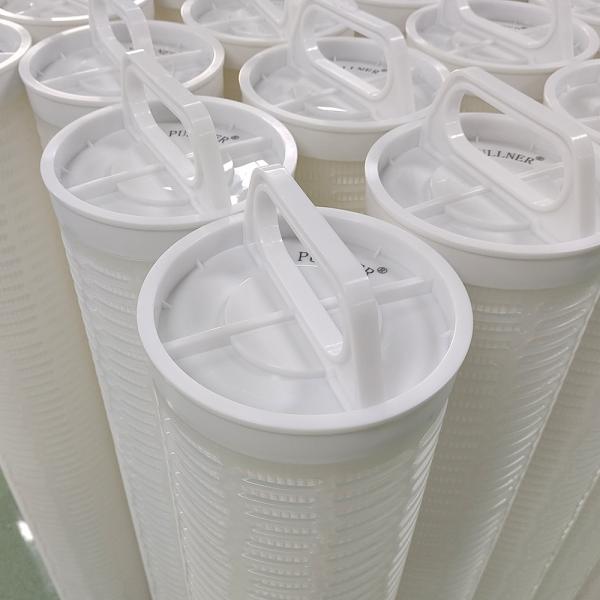

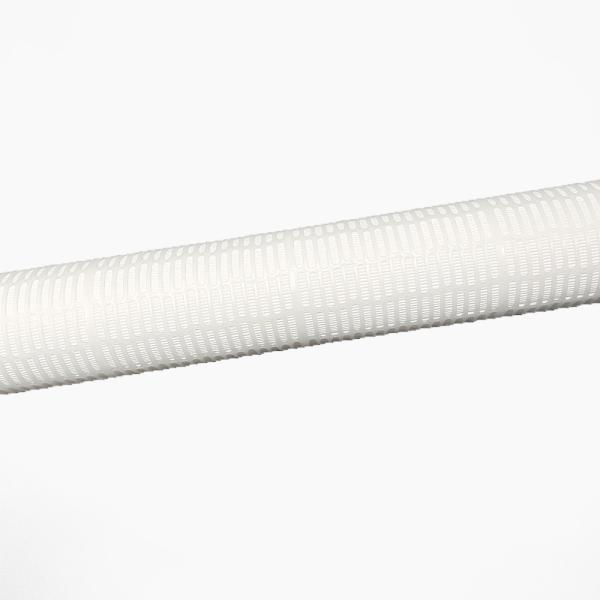

6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge
6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge
6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge
6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge
6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge
6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge
6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge
6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge
6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge
6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge
Specifications
Brand Name :
PULLNER
Model Number :
PHFM
Certification :
ISO 14001 ISO 45001
Place of Origin :
China
MOQ :
1 pieces
Price :
CNY 300-800 PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 piece a month
Delivery Time :
2 week
Packaging Details :
The plastic packed and put into the carton
Diameter :
6.5 inches
Length :
1026mm
Suggestion flow rate :
18-25 cube meter per hour
Max. flow rate :
110 cube meter per hour
Micron :
1-100 Um
Material :
Polypropylene
Description

General Description

PHFM High Flow Filter Cartridge is made of diameter 6.5’’(165mm)and pleated design with big flow area dirt holding capacity. It can meet different flow requirements, with a wide range of chemical compatibility, can be applied to various fields.

Application

Power plant condensation water filtration;

RO Pre-filtration, desalination pretreatment;

Biopharmaceutical industry pharmaceutical raw materials solvents, water filtration;

Food and Beverage process water treatment ;

Material Structure

Filter Material

PP:Deep Pleated PP/

Melt PP

 FO:Organic Fiber GF:Glass Fiber/Polyester

Support/Diversion

 PP Organic Fiber Polyester
End Cap Fiberglass reinforced polypropylene Fiberglass reinforced polypropylene Fiberglass reinforced polypropylene

Operating Characteristic

Maximum Temperature

PP:82°C

FO:120℃

GF:121℃
Maximum Differential Pressure

PP:3.44bar / 21°C

FO:3.44bar / 120°C

GF:3.44bar / 121°C

Design Parameter

Size

(Diameter*Length)

Design Flow

(m3/h)

Maximum Flow

(m3/h)

Filter Area

(㎡)
6"*20" 15 40 2.6
6"*40" 30 80 5.2
6"*60" 45 120 7.8

6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge6.5 Inches 110m3/H PHFM 3M CUNO Polypropylene Filter Cartridge
