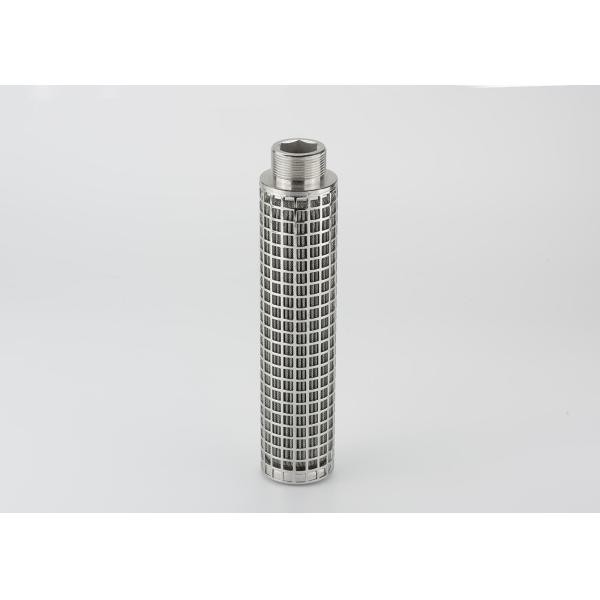

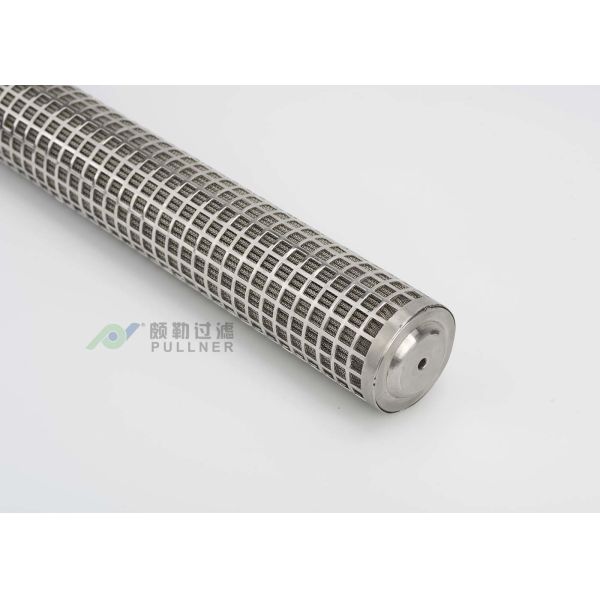

PHSF 5 bar Pleated 5um 316L Sintered Stainless Steel Filter
PHSF 5 bar Pleated 5um 316L Sintered Stainless Steel Filter
PHSF 5 bar Pleated 5um 316L Sintered Stainless Steel Filter
PHSF 5 bar Pleated 5um 316L Sintered Stainless Steel Filter
Specifications
Brand Name :
PULLNER
Model Number :
PHSF
Certification :
ISO 9001 ISO 18000
Place of Origin :
Shanghai
MOQ :
1 pieces
Price :
CNY 1000-2000 PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 pieces per month
Delivery Time :
1 month
Packaging Details :
The plastic packed and put into the carton
Material :
All stainless steel construction
Filter media :
Upstream Support
Max. operating differential pressure :
5.0 Bar
Max. operating temperature :
480 ℃
Micron :
5-60 Um
Length :
5'' to 40''
Seals :
NBR Silicone
Description

PHSF Stainless Steel Pleated Felt Filter Cartridges constructed with stainless steel sintered felt and shaped during the pleating process. These filters have a large filtration area. The stainless steel sintered felt is made from stainless steel fiber, which is then sintered under high temperature to form the porous depth filtration material.

PHFS Filter Cartridges features including a graded pore size from coarse upstream to fine downstream, which results in a higher dirt holding capacity and longer service life.

Materials Construction

Filter Media 316L/304Stainless Steel
Cage/Core/End Cap 316L/304 Stainless Steel

Operating Conditions

Maximum Operating Temperature 480℃
Maximum Operating Differential Pressure 5bar
