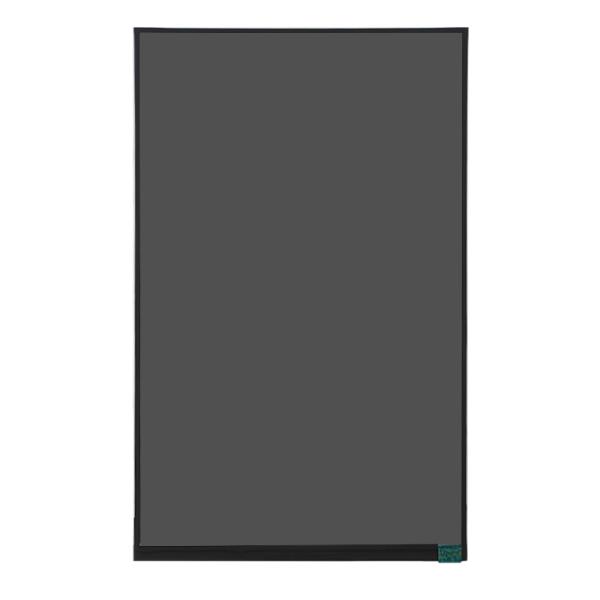

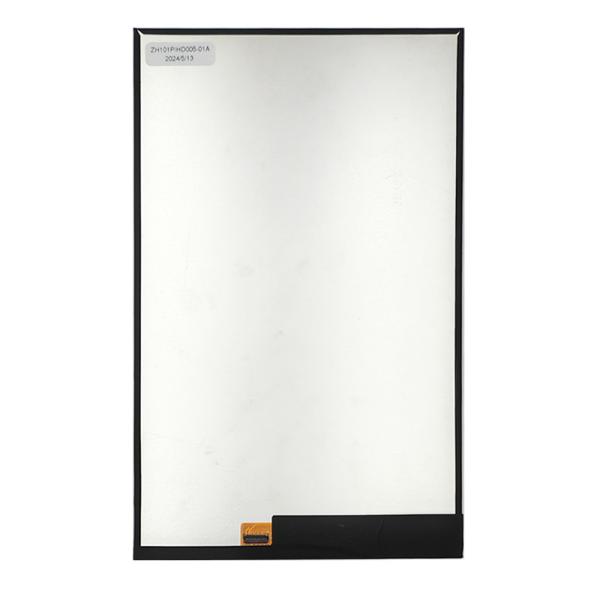

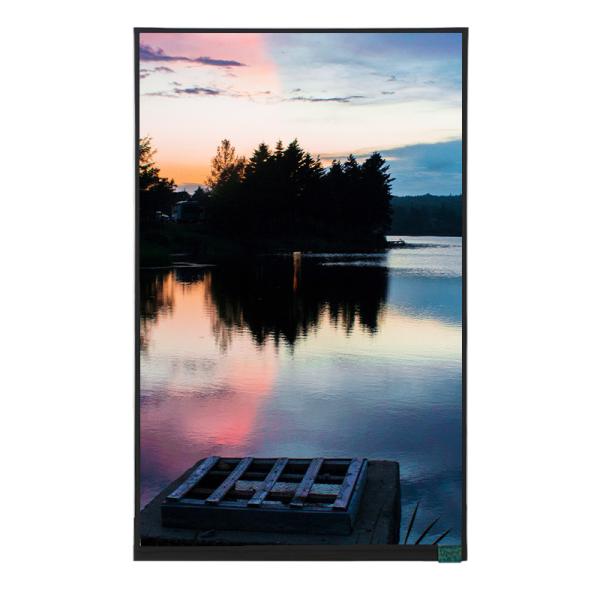

10.1 Inch TFT LCD Screen Display 800x1280 Resolution With MIPI Optional Touch
10.1 Inch TFT LCD Screen Display 800x1280 Resolution With MIPI Optional Touch
10.1 Inch TFT LCD Screen Display 800x1280 Resolution With MIPI Optional Touch
10.1 Inch TFT LCD Screen Display 800x1280 Resolution With MIPI Optional Touch
10.1 Inch TFT LCD Screen Display 800x1280 Resolution With MIPI Optional Touch
10.1 Inch TFT LCD Screen Display 800x1280 Resolution With MIPI Optional Touch
10.1 Inch TFT LCD Screen Display 800x1280 Resolution With MIPI Optional Touch
10.1 Inch TFT LCD Screen Display 800x1280 Resolution With MIPI Optional Touch
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH101PIHD005-01A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
10.1 Inch
Resolution :
800x1280
Brightness :
250 cd/m² （Typ.）
Display type :
IPS,Normally Black
Outline Dimensions :
143(W) x228.6(H) x 2.6(T) mm
Operating Temperature :
-20℃~+60℃
Description

10.1 Inch TFT LCD Screen 800x1280 Resolution with MIPI Optional Touch

The 10.1-Inch IPS TFT LCD Screen delivers sharp visuals, wide viewing angles, and stable performance for demanding industrial and commercial applications.

250 cd/m² typical brightness, IPS technology, and optional capacitive touch panel integration, this TFT LCD Screen is an ideal choice for embedded systems, control interfaces, medical devices, and portable equipment.

Key Features of the 10.1-Inch TFT LCD Screen
High-Quality Visual Performance
IPS technology ensures consistent color accuracy and clarity across wide viewing angles.

Optimized Resolution
800x1280 resolution delivers detailed images and sharp text for professional interface applications.

Durable & Long-Life Backlight
Equipped with a 28-chip white LED backlight (140mA, 12V) with a lifetime of 20,000 hours minimum for reliable, long-term use.

Flexible Integration
MIPI 31-pin interface allows seamless integration into industrial, automotive, and commercial devices.

Optional Touch Panel
Customizable with a capacitive touch option for intuitive and responsive operation.

Wide Operating Range
Designed to function in temperatures from -20℃ to +60℃, with storage capability from -30℃ to +60℃, suitable for diverse application environments.

​​

Applications
The 10.1-Inch TFT LCD Screen is suitable for:

Industrial HMI control panels

Medical imaging and monitoring equipment

POS systems and kiosks

Navigation and transportation displays

Portable measurement and testing devices

Product Specification

item ZH101PIHD005-01A
Screen Size 10.1 Inch
Resolution 800x1280
Brightness 250 cd/m²(Typ.)
Display Mode IPS, Normally Black
Driver IC JD9365DA-H3
Interface MIPI, 31pins Connector
Lifetime 20,000Hrs.(Min.)
Active Aera 135.36(W) x216.576(H) mm
Outline Dimension 143(W) x228.6(H) x 2.6(T) mm
Backlight 28-Chip white LED, 140mA 12V
Operating Temperature -20℃~+60℃
Storage Temperature -30℃~+60℃
Touch Panel Optional Touch Panel

Product Drawing

10.1 Inch TFT LCD Screen Display 800x1280 Resolution With MIPI Optional Touch

10.1 Inch TFT LCD Screen Display 800x1280 Resolution With MIPI Optional Touch

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Screen!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
