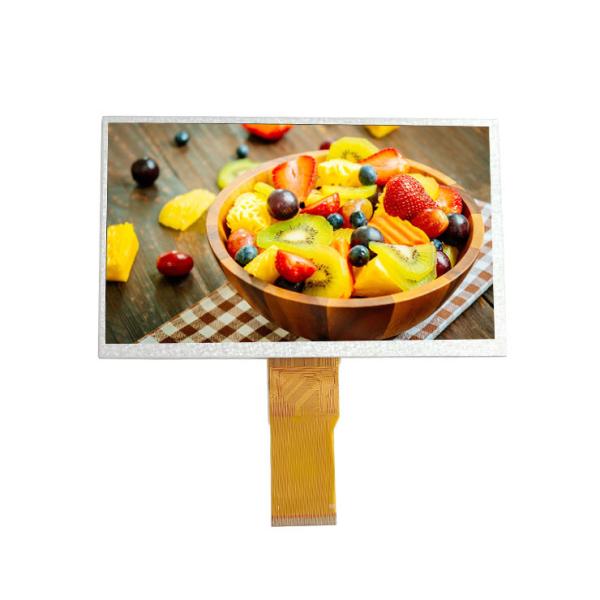

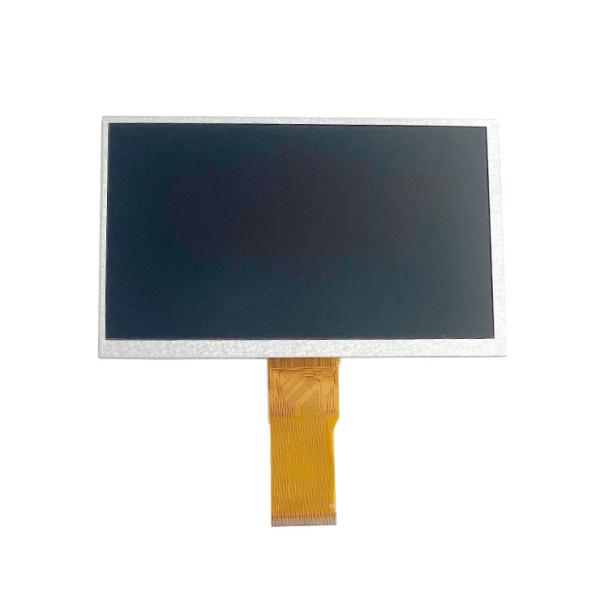

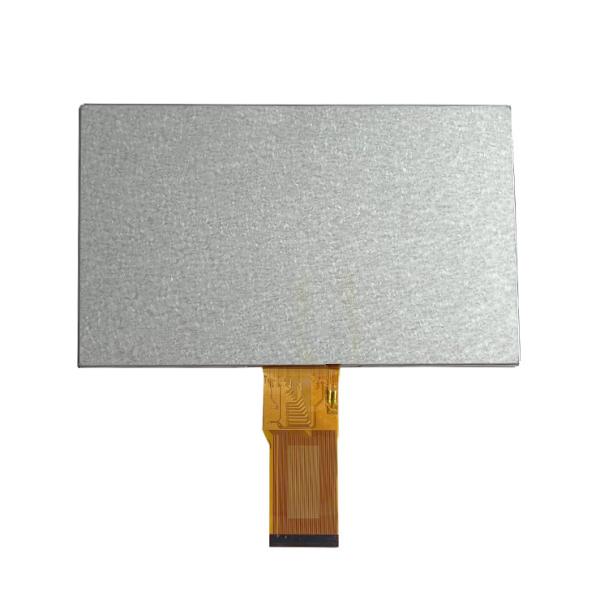

7-inch TFT LCD Screen1024x600 dots 50 pin RGB interface custom touch screen

This high-quality 7 Inch TFT LCD Screen features a crisp 1024x600 resolution for crisp, clear visuals and vibrant colors. Designed for versatility, this display supports a 50-pin RGB interface for seamless integration with a wide range of embedded systems, industrial control and multimedia applications.

1024×600 HD resolution: Sharp, undistorted visuals

50-pin RGB connector: Reliable signal transmission for seamless integration.

Custom touchscreen options: Custom resistive or capacitive touch solutions (available upon request).

7 inch TFT LCD Screen Active area: 154.2144 mm (W) × 85.92 mm (H) for precise mechanical fit.

Rugged design: Ideal for industrial environments, medical devices, IoT hubs, and kiosks.

Technical Specifications:

Display Type: TFT LCD Screen

Size: 7-inch

Resolution: 1024 × 600

Interface: 50-pin RGB

Active Area (AA): 154.2144 mm × 85.92 mm

Touch Panel: Customizable (resistive/capacitive)

Our ​​7-inch TFT LCD Screen​​ is built for durability and performance, with customizable touch options to fit your specific needs. Whether for prototyping or mass production, we provide reliable displays with ​​fast shipping and competitive pricing​​.

Company's focus on the core

• Industrial-Grade TFT/OLED Displays (0.96" to 32")
• Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
• Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
• Touch Solutions: Resistive/Capacitive/Cover Glass
• TN/IPS Panels | Custom Backlight Systems

Product Specification

Product Drawing

Why Choose ZhanHui TFT LCD Screen?

• Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
• A powerful engineering support team offers a one-stop integrated solution
• Flexible and efficient customization capabilities, with rapid response to demands
• Strict quality control system (such as through IATF 16949, ISO 9001)
• Global logistics and localized service support
• Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

• Upgrade your device visibility with this premium TFT LCD Screen!

• Request a Quote Today!

• Download Full Datasheet (Link)

• Contact Sales for Volume Pricing

• Integrate Brilliance - Order Samples Now!
