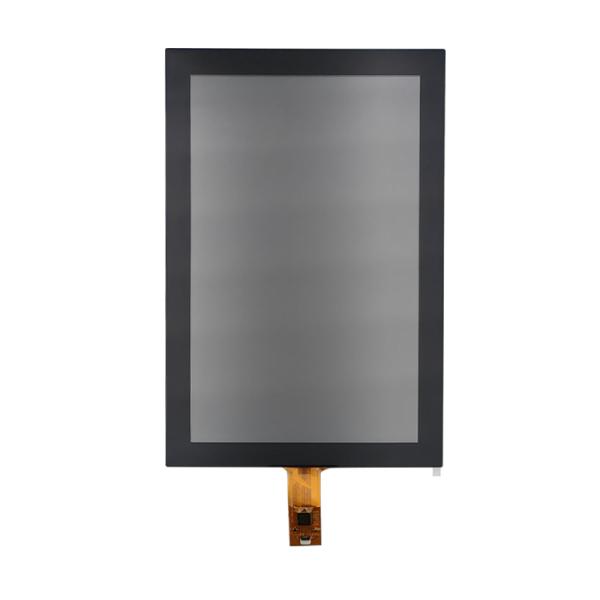

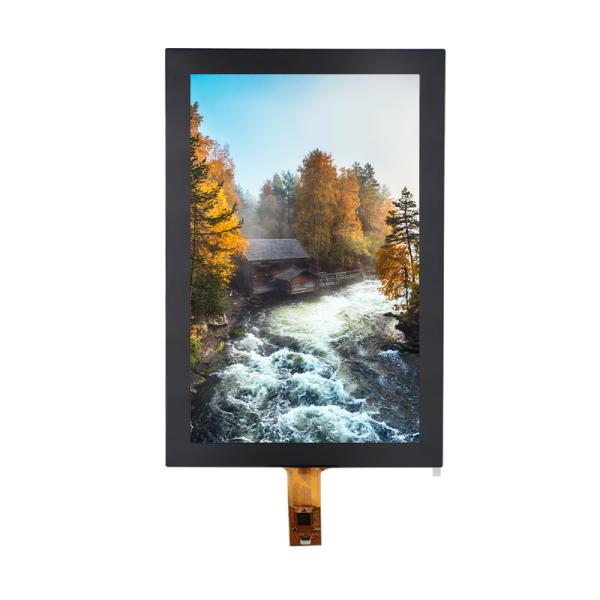

TFT CTP Touch Panel 800x1280 Resolution 8 Inch LCD Display MIPI 31 Pin
TFT CTP Touch Panel 800x1280 Resolution 8 Inch LCD Display MIPI 31 Pin
TFT CTP Touch Panel 800x1280 Resolution 8 Inch LCD Display MIPI 31 Pin
TFT CTP Touch Panel 800x1280 Resolution 8 Inch LCD Display MIPI 31 Pin
TFT CTP Touch Panel 800x1280 Resolution 8 Inch LCD Display MIPI 31 Pin
TFT CTP Touch Panel 800x1280 Resolution 8 Inch LCD Display MIPI 31 Pin
TFT CTP Touch Panel 800x1280 Resolution 8 Inch LCD Display MIPI 31 Pin
TFT CTP Touch Panel 800x1280 Resolution 8 Inch LCD Display MIPI 31 Pin
Specifications
Brand Name :
OEM/Customzied
Model Number :
ZH080BH034-02B-TQ1_V0
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
8.0 Inch
Resolution :
800x1280
Brightness :
200 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
114.6(W)x184.1(H)x4.25(T) mm
Operating Temperature :
-10℃~+50℃
Description

8 Inch TFT Touch Screen CTP 800x1280 Resolution LCD Display MIPI 31 Pin

The ZH080BH034-02B-TQ1_V0 CTP Touch Display delivers superior image clarity, responsive multi-touch performance, and robust construction for demanding B2B applications. Engineered with a G+G (Glass+Glass) capacitive touch panel and IPS technology, it ensures wide viewing angles, high touch accuracy, and long-term durability.

With an 800x1280 resolution and 200 cd/m² brightness, this 8.0-inch CTP Touch Display provides clear and stable visuals, making it an ideal choice for industrial control systems, POS terminals, medical devices, and portable instrumentation.

Key Features of the 8 Inch CTP Touch Display
High-Quality Visuals
8.0-inch IPS panel with 800x1280 resolution for sharp, true-to-life image reproduction and consistent color accuracy.

Advanced Capacitive Touch Technology
Integrated CTP (Capacitive Touch Panel) with G+G structure and GT911 touch IC ensures precise, responsive, and durable multi-touch performance.

Robust and Durable Design
6H surface hardness protects against scratches and wear, extending the product’s operational life in high-usage environments.

Energy-Efficient Backlight
21-chip white LED backlight (140mA, 8V) provides uniform brightness while maintaining low power consumption.

Wide Compatibility
Standard MIPI 31-pin interface ensures seamless integration into embedded systems and custom equipment.

​

Product Specification

item ZH080BH034-02B-TQ1_V0
Screen Size 8.0 Inch
Resolution 800x1280
Brightness 200 d/m²(Typ.)
Display Mode IPS, Normally Black
Driver IC JD9365DA
Active Aera 107.64(W)x172.22(H) mm
Outline Dimension 114.6(W)x184.1(H)x4.25(T) mm
Backlight 21-Chip White LED 140mA 8V
Interface MIPI,31pins Connector
Operating Temperature -10℃~+50℃
Storage Temperature -20℃~+60℃
Touch Panel With Touch Panel
Touch IC GT911
Surface Hardness 6H
Structure G+G
Touch Point 5 Point

Product Drawing

TFT CTP Touch Panel 800x1280 Resolution 8 Inch LCD Display MIPI 31 Pin

TFT CTP Touch Panel 800x1280 Resolution 8 Inch LCD Display MIPI 31 Pin

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Screen!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
