Specifications
Brand Name :
OEM/Customized
Model Number :
NV140XTM-N52
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
14 Inch
Resolution :
3840x1100
Brightness :
300 cd/m² (Typ.)
Display type :
IPS, Normally Black
Outline Dimensions :
350.52(W)x108.75(H)mm
Operating Temperature :
0℃~+50℃
Description

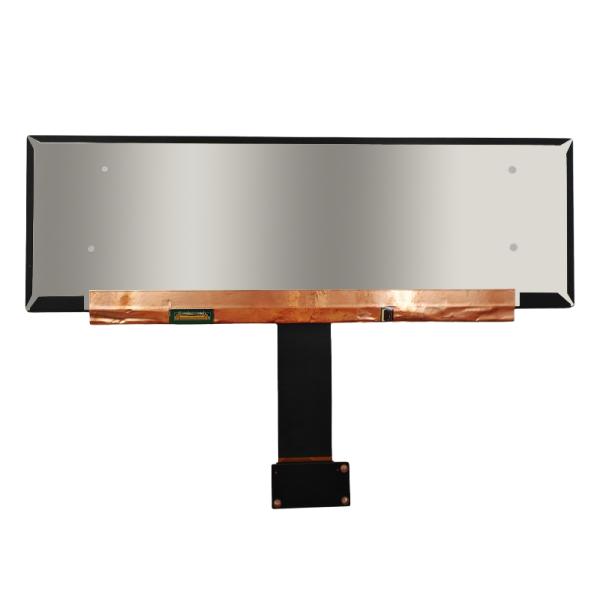

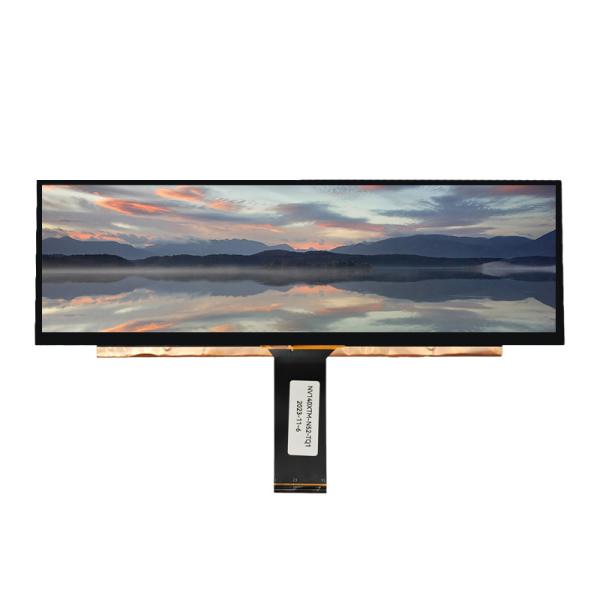

BOE NV140XTM-N52 Bar Type LCD Display 14 Inch with 3840x1100 resolution

The NV140XTM-N52 is 14-inch bar-type LCD display designed to meet the demands of modern B2B applications. Boasting an impressive 3840x1100 resolution and IPS technology, this display ensures vibrant colors, sharp images, and wide viewing angles. With its long-lasting backlight, this display is ideal for industrial applications, digital signage, and interactive kiosks that require high performance and reliability.

The NV140XTM-N52 is built for flexibility with optional touch panel integration, allowing you to turn it into a highly interactive solution for various applications. Whether for commercial signage, POS systems, or monitoring systems, this bar-type LCD display offers both the quality and versatility your business needs.

Applications for The NV140XTM-N52 Bar-Type LCD Display

POS Systems: The display’s optional touch panel makes it a great choice for point-of-sale systems, where customer interaction and durability are paramount.

Interactive Kiosks: With its optional touch panel, this bar-type LCD display can easily be transformed into an interactive kiosk, ideal for use in retail, hospitality, or public information points.

Industrial Applications: The 15,000-hour lifetime and wide operating temperature range make this display well-suited for use in industrial control systems, monitoring equipment, and robotic interfaces.

Product Specification

Item Number NV140XTM-N52
Screen Size 14 Inch
Resolution 3840x1100
Brightness 300 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface 2 Lane EDP, 30pins Connector
Active Aera 344.2176(W)x98.604(H) mm
Outline Dimension 350.52(W)x108.75(H)x2.5 (T) mm
Lifetime 15,000 Hrs(Min.)
Surface treatment HC+APF
Surface hardness 3H
Operating Temperature 0℃~+50℃
Storage Temperature -20℃~+60℃
Touch Panel Optional Touch Panel

Product Drawing

BOE NV140XTM-N52 IPS Bar Type LCD Display 14 Inch 3840x1100 Resolution

BOE NV140XTM-N52 IPS Bar Type LCD Display 14 Inch 3840x1100 Resolution

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Module!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
