Wide Temperature Industrial 7 Inch TFT Display 480nits Brightness Optional Touch Panel
Wide Temperature Industrial 7 Inch TFT Display 480nits Brightness Optional Touch Panel
Wide Temperature Industrial 7 Inch TFT Display 480nits Brightness Optional Touch Panel
Wide Temperature Industrial 7 Inch TFT Display 480nits Brightness Optional Touch Panel
Wide Temperature Industrial 7 Inch TFT Display 480nits Brightness Optional Touch Panel
Wide Temperature Industrial 7 Inch TFT Display 480nits Brightness Optional Touch Panel
Wide Temperature Industrial 7 Inch TFT Display 480nits Brightness Optional Touch Panel
Wide Temperature Industrial 7 Inch TFT Display 480nits Brightness Optional Touch Panel
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH070CIWVG002-01A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
7.0 Inch
Resolution :
800x480
Brightness :
480 cd/m² （Typ.）
Display type :
IPS,Normally Black
Outline Dimensions :
166.6(W) x 109.4(H) x 5.7(T)mm
Operating Temperature :
-30℃~+85℃
Description

Wide Temperature Industrial 7-inch TFT Display 480nits Brightness Optional Touch Panel

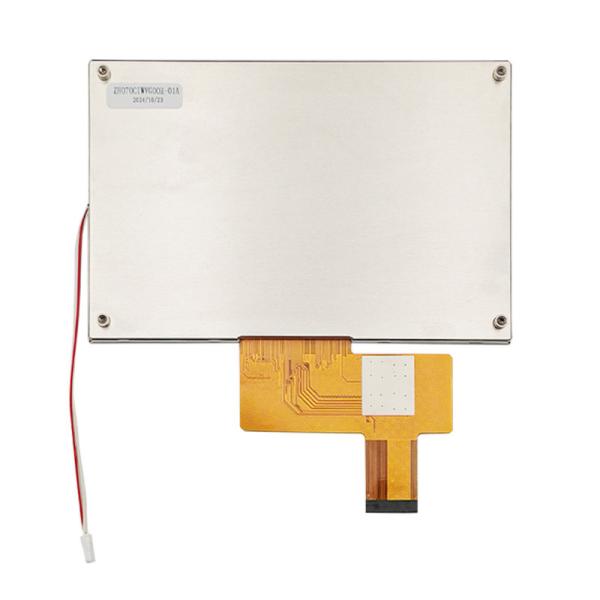

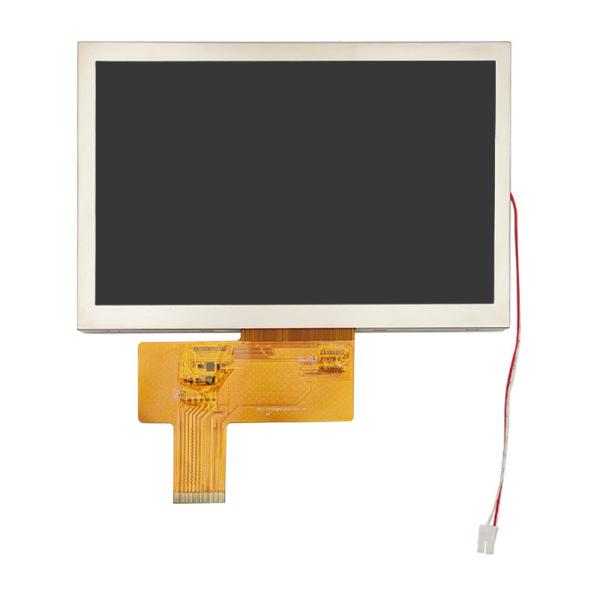

ZH070CIWVG002-01A is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices.
This product is composed of a TFT LCD panel, a drive IC, a PCB, and a WLED-backlight unit.The active display area is 7.0 inches diagonally measured and the native resolution is 800*RGB*480. Features of this product are listed in the following table.

The TFT LCD Display Module has Wide operating temperature (-35°C to +85°C).

Reliable in extreme conditions: Ideal for industrial automation, outdoor kiosks, and automotive applications.

The 7 inch Wide Temperature LCD brightness 480 nits : Ensures clear visibility in direct sunlight.

80% uniformity: Eliminates dark spots for consistent display quality.

The 7 inch Wide Temperature LCD IPS Panel is full viewing angle: Ideal for multi-user applications.

The product 7 inch Wide Temperature LCD has 30,000 hours LED backlight life: Reduces maintenance costs for 24/7 operation.

with LVDS 4Lane interface: reduced EMI.

Optional touch panel: Resistive or capacitive touch screens available upon request. ( Support the requirement to Customzied)

RoHS and industrial standards compliant

Anti-glare finish: Durable with scratch-resistant coating.

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems

Product Specification

item ZH070CIWVG002-01A
Screen Size 7.0 Inch
Resolution 800x480
Brightness 480 cd/m²(Typ.)
Interface LVDS 4Lane, 40 pins Connector
Display Mode
IPS,Normally Black
CR 1000 (Typ.)
Viewing Angle 80/80/80/80 (Typ.)
Life time 30,000 Hrs (Min.)
Active Aera 152.4(W) x91.44(H) mm
Outline Dimension 166.6(W) x 109.4(H) x 5.7(T)mm
Backlight 27-Chip white LED, 360mA, 9.9V
Operating Temperature -35℃~+85℃
Storage Temperature -40℃~+90℃
Touch Panel Optional Touch Panel

Product Drawing

Wide Temperature Industrial 7 Inch TFT Display 480nits Brightness Optional Touch Panel

Wide Temperature Industrial 7 Inch TFT Display 480nits Brightness Optional Touch Panel

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium Wide Temperature LCD!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Integrate Brilliance - Order Samples Now!
