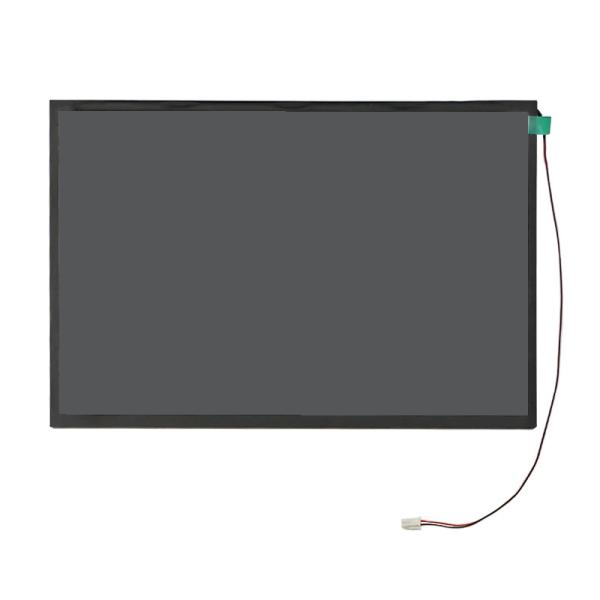

12.1 Inch IPS LCD Panel 1280x800 Wide Temperature 1000nit LVDS TFT LCD Module
12.1 Inch IPS LCD Panel 1280x800 Wide Temperature 1000nit LVDS TFT LCD Module
12.1 Inch IPS LCD Panel 1280x800 Wide Temperature 1000nit LVDS TFT LCD Module
12.1 Inch IPS LCD Panel 1280x800 Wide Temperature 1000nit LVDS TFT LCD Module
12.1 Inch IPS LCD Panel 1280x800 Wide Temperature 1000nit LVDS TFT LCD Module
12.1 Inch IPS LCD Panel 1280x800 Wide Temperature 1000nit LVDS TFT LCD Module
12.1 Inch IPS LCD Panel 1280x800 Wide Temperature 1000nit LVDS TFT LCD Module
12.1 Inch IPS LCD Panel 1280x800 Wide Temperature 1000nit LVDS TFT LCD Module
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH121QIHD001-01A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
12.1 Inch
Resolution :
1280x800
Brightness :
1000 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
278(W) x184.1(H) x5.65(T) mm
Operating Temperature :
-30℃~+80℃
Description

12.1 IPS LCD Panel 1280x800 Wide Temperature 1000nit LVDS Tft Lcd Module

The ZH121QIHD001-01A is a 12.1-inch Wide Temperature LCD designed for industries where temperature resilience and high brightness are critical. With a 1000 cd/m² brightness, this display ensures optimal visibility even in high-light environments, making it suitable for both indoor and outdoor applications.

This Wide Temperature LCD excels in demanding environments, with an operating temperature range of -30℃ to +80℃, making it ideal for industrial, automotive, and outdoor applications. Additionally, the AG (Anti-Glare) surface treatment with a 3H hard coating enhances its durability, making it resistant to scratches and reducing reflections for better readability.

The optional touch panel further enhances its interactivity, making it an ideal choice for applications that require user interaction. Whether you're building a kiosk, industrial control panel, or medical device, the ZH121QIHD001-01A provides the durability, clarity, and performance your business requires.

Applications
The ZH121QIHD001-01A Wide Temperature LCD is ideal for a variety of B2B applications, including:

Automotive Displays: This display is ideal for automotive dashboards or control interfaces, where clarity, high brightness, and resilience to temperature extremes are required.

Outdoor Digital Signage: With its high brightness and wide temperature range, the ZH121QIHD001-01A is perfect for outdoor kiosks, advertising displays, and public information systems.

Medical Equipment Displays: The display’s rugged features and clear visuals make it suitable for medical equipment that requires high visibility and interaction in diverse conditions.

Product Specification

item ZH121QIHD001-01A
Screen Size 12.1 Inch
Resolution 1280x800
Brightness 1000 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 30pins Connector
Active Aera 261.12(W) x 163.2(H) mm
Outline Dimension 278(W) x184.1(H) x5.65(T) mm
Backlight 50-Chip white LED, 320mA 30V
Operating Temperature -30℃~+80℃
Storage Temperature -30℃~+85℃
Surface Treatment AG type, 3H hard coating
Touch Panel Optional Touch Panel

Product Drawing

12.1 Inch IPS LCD Panel 1280x800 Wide Temperature 1000nit LVDS TFT LCD Module

12.1 Inch IPS LCD Panel 1280x800 Wide Temperature 1000nit LVDS TFT LCD Module

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Module!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
