1100nits Brightness PCAP Touch Display 18.5 Inch 1920x1080 TFT LCD Module Optional HDMI Board kits
1100nits Brightness PCAP Touch Display 18.5 Inch 1920x1080 TFT LCD Module Optional HDMI Board kits
1100nits Brightness PCAP Touch Display 18.5 Inch 1920x1080 TFT LCD Module Optional HDMI Board kits
1100nits Brightness PCAP Touch Display 18.5 Inch 1920x1080 TFT LCD Module Optional HDMI Board kits
1100nits Brightness PCAP Touch Display 18.5 Inch 1920x1080 TFT LCD Module Optional HDMI Board kits
1100nits Brightness PCAP Touch Display 18.5 Inch 1920x1080 TFT LCD Module Optional HDMI Board kits
1100nits Brightness PCAP Touch Display 18.5 Inch 1920x1080 TFT LCD Module Optional HDMI Board kits
1100nits Brightness PCAP Touch Display 18.5 Inch 1920x1080 TFT LCD Module Optional HDMI Board kits
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH185PIFHD004-01C-TK1
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
18.5 Inch
Resolution :
1920x1080
Brightness :
1100 Cd/m² （Typ.）
Display Type :
IPS, Normally Black
Outline Dimensions :
430.6(W) X254.8(H) X7.0(T) Mm
Operating Temperature :
-20℃~+80℃
Description

1100nits Brightness PCAP Touch Display 18.5 Inch 1920x1080 TFT LCD Module Optional HDMI Board kits


ZH185BIFHD004-01C-TK1 is a high-brightness PCAP (Projected Capacitive) touch display, specifically engineered for scenarios demanding exceptional visibility and smooth interaction—such as outdoor equipment, commercial terminals, and professional workstations. This 18.5-inch display integrates FHD (Full High Definition) visualization, responsive touch control, and versatile connectivity, delivering reliable and consistent performance to meet diverse application requirements.


Key Features of this PCAP Touch Display:

  • 1100nits High Brightness & PCAP Touch

1100nits ultra-high brightness ensures vivid visuals even under direct sunlight; projected capacitive touch supports multi-point operation with fast, precise response.

  • 18.5 Inch FHD TFT LCD

1920×1080 full HD resolution delivers sharp images and true-to-life colors, meeting professional display requirements.

Optional HDMI Board Kits:Detachable HDMI board kits are available, enabling plug-and-play connectivity with various devices like computers and controllers for simplified integration.

  • Stable Performance

Operates stably in -10°C to +60°C, with scratch-resistant glass surface, suitable for long-term use in commercial and industrial environments.


Applications:

  • Outdoor Digital Signage: Clear display under sunlight for advertising and information release.
  • Commercial Kiosks: Smooth touch experience for self-service terminals in malls and airports.
  • Industrial Monitoring: High-definition display for equipment status and data monitoring.
  • Professional Workstations: Suitable for medical, logistics, and other fields requiring high-brightness interactive displays.

Product Specification


Item Number ZH185PIFHD004-01C-TK1
Screen Size 18.5 Inch
Resolution 1920x1080
Brightness 1100 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 30pins Connector
Active Aera 408.96(W) x230.04(H) mm

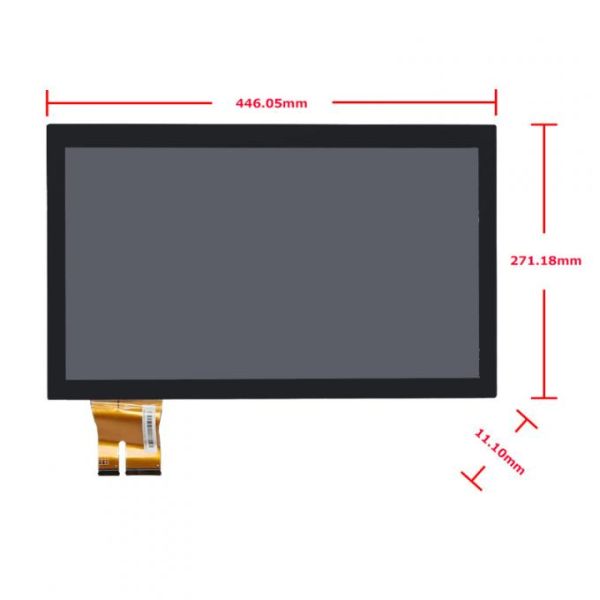

Outline Dimension 446.05(W) x271.18(H) x11.1(T) mm
Backlight input current 480mA 49V
Operating Temperature -20℃~+80℃
Storage Temperature -30℃~+80℃
touch panel with touch panel
touch interface USB
Touch driver IC ILI2510
HDMI Board Optional HDMI Board kits

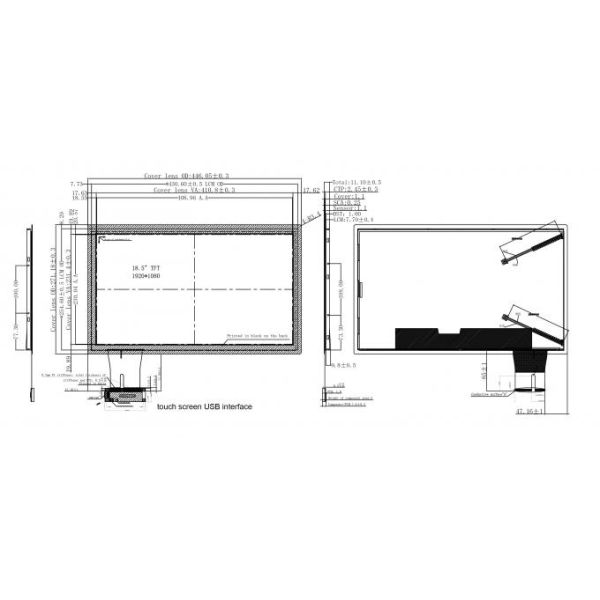

Product Drawing

1100nits Brightness PCAP Touch Display 18.5 Inch 1920x1080 TFT LCD Module Optional HDMI Board kits

1100nits Brightness PCAP Touch Display 18.5 Inch 1920x1080 TFT LCD Module Optional HDMI Board kits


FAQ

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.


2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.


3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display


5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!


Call to Action :

  • Upgrade your device visibility with this premium High Brightness LCD Display!
  • Request a Quote Today!
  • Download Full Datasheet (Link)
  • Contact Sales for Volume Pricing
  • Integrate Brilliance - Order Samples Now!
