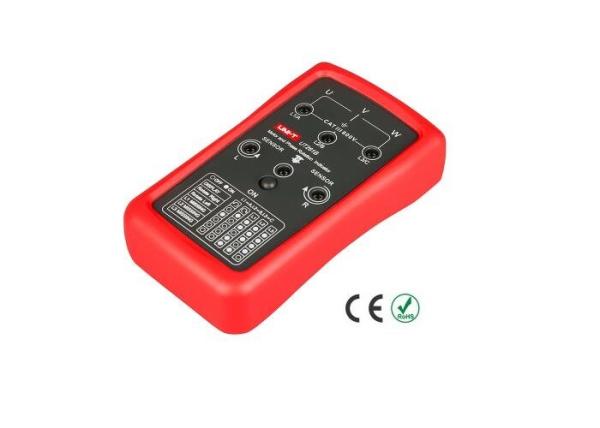

Portable Motor Rotation Indicator / Three Phase Power Phase Sequence Tester
Portable Motor Rotation Indicator / Three Phase Power Phase Sequence Tester
Portable Motor Rotation Indicator / Three Phase Power Phase Sequence Tester
Portable Motor Rotation Indicator / Three Phase Power Phase Sequence Tester
Portable Motor Rotation Indicator / Three Phase Power Phase Sequence Tester
Portable Motor Rotation Indicator / Three Phase Power Phase Sequence Tester
Portable Motor Rotation Indicator / Three Phase Power Phase Sequence Tester
Portable Motor Rotation Indicator / Three Phase Power Phase Sequence Tester
Specifications
Brand Name :
Fanke High-voltage
Model Number :
UT-261A and UT-261B
Certification :
ISO9001
Place of Origin :
Wuhan , China
MOQ :
One unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20units/1months
Delivery Time :
5-10work days
Packaging Details :
Export standard wooden case with fumigation free
Usage :
Phase Sequence and Motor Rotation Indicator
Appliaction :
Phase Sequence and Motor Rotation Testing
AC voltage :
Range : 90V~600V(261A);40V~690V(261B)
Frequency :
Range: 15Hz~400Hz
Functions :
Phase sequence/Missing phase/Motor rotation indication
Power :
UT261A: No battery required; UT261B: 9V battery (6F22)
Product net weight :
UT261A: 160g; UT261B: 180g
Product size :
123mm x 71mm x 29mm
Description

Portable Phase Sequence and Motor Rotation Indicator , Three Phase Power Phase Sequence Tester

I. Product Description and Why select the test meter :

UT261 series is used for determining 3-phase power phase sequence, missing phase indication, and motor phase rotation (UT261B). UT261A and UT261B can measure AC voltage of 40~700V and 90~600V respectively. These devices can operate in frequency range of 15~400Hz. UT261 are durable devices which can withstand impact from 2 meter' s height. Test leads with protective tubing are included in optional accessories.

II. Main technical parameters and Model comparision:

Specifications Range UT261A UT261B
AC voltage (V) 90V~600V 　 √
40V~690V √ 　
Frequency (Hz) 15Hz~400Hz √ √
Working current (A) 　 ＜1mA <3mA
Features
Phase sequence indication 　 LCD LED
Missing phase indication 　 LCD LED
Motor rotation indication 　 　 LED
General Characterisitics
Power UT261A: No battery required; UT261B: 9V battery (6F22)
Product color Red and grey
Product net weight UT261A: 160g; UT261B: 180g
Product size 123mm x 71mm x 29mm
Standard accessories Battery (UT261B), test lead with alligator clip x 3
Standard individual packing Gift box, English manual, carrying bag
Standard quantity per carton 20pcs
Standard carton measurement 450mm x 325mm x 340mm
Standard carton gross weight UT261A: 9.8kg; UT261B: 10.3kg

III. Standard accessories view

Portable Motor Rotation Indicator / Three Phase Power Phase Sequence Tester
