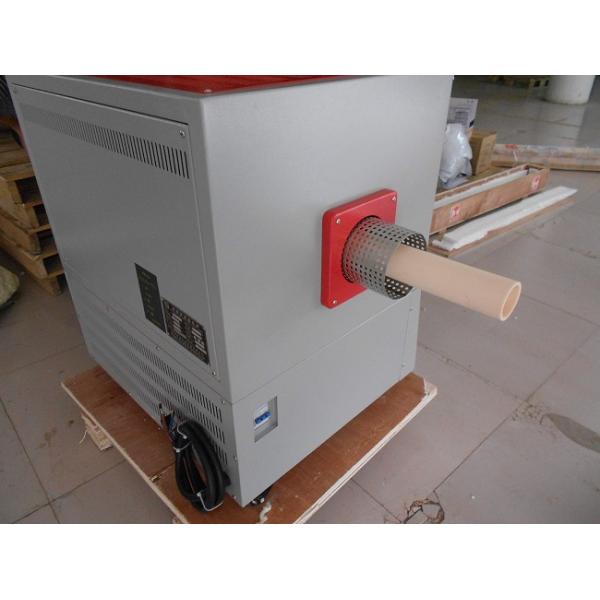

1700C Corundum High Temperature Tube Furnace Vacuum Argon Atmosphere 50 X 400mm
1700C Corundum High Temperature Tube Furnace Vacuum Argon Atmosphere 50 X 400mm
Specifications
Brand Name :
SP
Model Number :
SP-1700T-54
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300sets/month
Delivery Time :
10-15 working days
Packaging Details :
plywood case
Goods name :
High Temperature Tube Furnace
Max. Temperature :
1700℃
Operation Temp :
1100℃
Heating tube size :
OD50*400mm
Tube material :
ceramic tube
Heating element :
MoSi2 rod
Insulation material :
light alumina ceramic fiber board
Vacuum degree :
-0.1MPa
Protect gas :
Nitrogen , Argon ...
Application :
lab testing
Description

1700Type Corundum Tube High Temperature Furnace

Vacuum Argon Atmosphere 50x400mm

SUPER High Temperature furnace advantages:

a) 1700C high efficiency electric tube furnace,using MoSi2 rod as heating element . When tube furnace heating, can ensure uniform temperature in the furnace and strong and durable.

b) Tube furnace chamber use advanced light weight aluminum oxide material molding, traditional muffle furnace compared the weight, reduce 40% . Heat preservation effect is good,temperature increase speed increased a times, save energy. Furnace service life by four times.

c) Use double deck ventilation cooling structure, muffle furnace work in high temperature, and the furnace shell surface keep low temperature, avoid scald the operating personnel, safety is greatly increased.

d) The 30 segments programmable intelligent digital temperature controller control temperature, high degree of automation, convenient operation.

e) It can be installed computer communication module and RS485 communication interface, to realize the remote control.

1700C Corundum High Temperature Tube Furnace Vacuum Argon Atmosphere 50 X 400mm

Technical parameter of high temperature furnace :

Product name and model 1700℃ high efficiency vacuum electric tube furnace
Heating tube size(OD×L) Dia50x400mm(heating length) (2" x 16")
Chamber insulation materials light weight aluminum oxide fiber ceramic
Maximum temperature 1700°C working time ( < 3 hours)
Working temperature 400-1600°C (adjustable, for long time )
Temperature control Intelligent 30 segments programmable and PID auto control
Heating rate 1-15℃/min (adjustable)
Temperature accuracy ±1℃
Thermocouple K type
Heating element MoSi2 rod
Ultimate vacuum -0.1Mpa
Vacuum pump specifications model 0.5A, pumping rate 0.5L/S, power 120W
Furnace shell Double shell with fan cooling
Temperature display mode Four Figure Liquid Crystal Display
Working power AC 1-phase, 110V-240V, 50Hz/60Hz
Rated power 2.5KW
Spare function installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added

Standard model of SP company 1700C vacuum tube furnace:

Model Heating zone (OD×L mm) Work power Vacuum pump specifications
SP-1700T-53 Φ50x300 mm(2.0"x12")

AC

1-phase/3-phase

110V-400V

50Hz/60Hz.

 TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-54 Φ50x400 mm(2.0"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-55 Φ50x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-63 Φ60x300 mm(2.5"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-64 Φ60x400 mm(2.5"x16") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-65 Φ60x500 mm(2.0"x20") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-83 Φ80x300 mm(3.2"x12") TW-0.5A;0.5L/S;120W;110V/220V
SP-1700T-84 Φ80x400 mm(3.2"x16") TW-1A;1L/S;120W;110V/220V
SP-1700T-104 Φ100x400 mm(4.0"x16") TW-1A;1L/S;120W;110V/220V

Special requirement on the tube furnace is also available . We our company also supply chamber muffle furnace , vacuum chamber furnace, gold melting furnace , metal melting furnace and heat treatment furnace. Welcome to send your demands on these furnace ,we are glad to supply service to you .
