160 LMW LED High Bay Warehouse Lighting Fixture 120W Cold Storage SAA NSF Certificated
160 LMW LED High Bay Warehouse Lighting Fixture 120W Cold Storage SAA NSF Certificated
160 LMW LED High Bay Warehouse Lighting Fixture 120W Cold Storage SAA NSF Certificated
160 LMW LED High Bay Warehouse Lighting Fixture 120W Cold Storage SAA NSF Certificated
Specifications
Brand Name :
SUNLUXX
Model Number :
CHBL-120
Certification :
ETL, CE,SAA,ROHS,NSF
Place of Origin :
China
MOQ :
1
Price :
US$116.45/PCS unit for EXW item
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
48cm*48cm*22cm/1pcs
Wattage :
120W
Color Temperature :
4000K 5000K 5700K 3000K
Installation Way :
Hook and Pendant
Input Voltage :
100-277VAC,50/60Hz
Luminous Flux :
19200Lm
Warranty :
5 years
LED Qty :
208PCS
CRI :
>70
Description

160 LM/W Food Grade High Bay Light 120W LED High Bay Cold Storage Lighting Fixture SAA,NSF Certificate


NSF Food High Bay Light Parameters

Item Number CHBL-120
Power 120W
Input Voltage 90-305VAC
Input Current 0.47A@220VAC
PF >0.90@220VAC
Dimming Option MOSO 2 in 1 dimming (PWM, 0-10V)
Dimming Option

Meanwell

 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali
Ra>80

Luminous Flux

 16800Lm
Ra>70

Luminous Flux

 19200Lm
LED Brand Cree SMD 3030 / LUMILEDS 3030

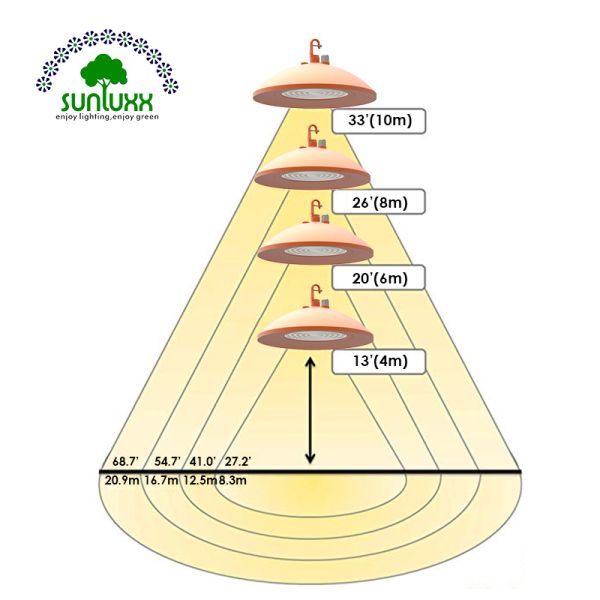

Beam Angle 60°90°120°
Operation Temp -40℃ ~ +45℃
Storage Temp -40℃ ~ +85℃
Lifespan 25℃ 50000Hours

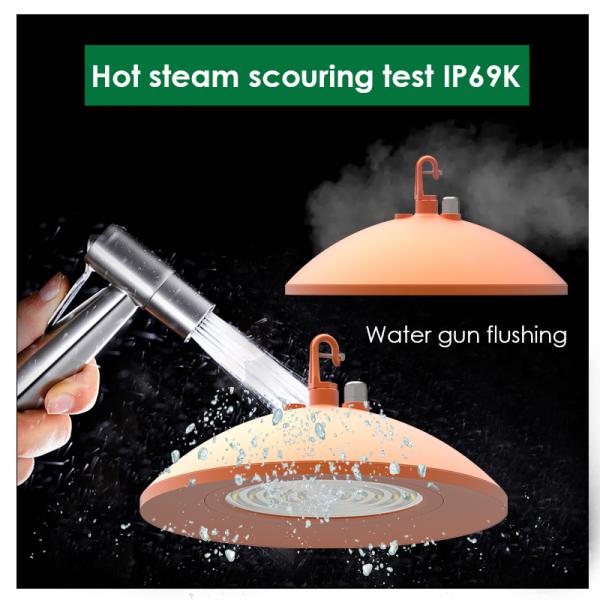

IP rating IP69K
IK rating IK10
Certificates ETL, CE,SAA,ROHS,NSF
Lamp Body Color Orange( RAL2004)
Product Size(mm) 480*480*220
Gross Weight(kg) 6.8kg
Installation Way Hook Mount/Pendant Mount
Housing Die-Casting Aluminum


Features of LED Food High Bay Fixture

  • Smooth design, no glass and NSF rated materials with safety performance.
  • Die-Cast Aluminum cooling good heat dissipation
  • Super Brightness, >160LM/W
  • IP65 rated , stronger corrosion-resistant & anti-aging performance
  • 0-10v dimming , DALI system control options
  • New type led high bay application for food processing lighting area.
  • 100w/120w/150w/120w are available.
  • 100-277V
  • 60°/90°/120° beam angle optional
  • 4KV/6KV surge protection over temperature protection
  • 304 stainless steel hook & Safe rope
  • 5 years warranty
  • The front surface is clean, no screws no silicone sleeve on that.

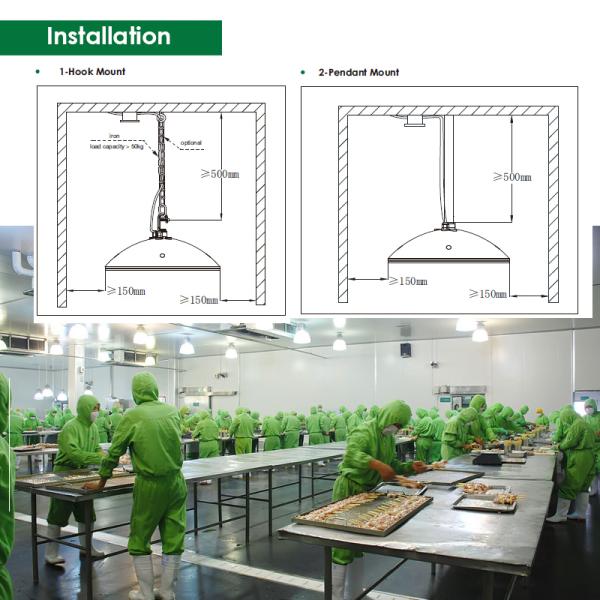

NSF Food High Bay Light Installation & Application


NSF Food High Bay Light has two installation way, one is pendant, the other one is hook.

It can be widly used in below area:

  • Cold Storage
  • Workshop
  • Food Storage
  • Bread Factory
  • Meat Processsing plant
  • Industrial Area


160 LMW LED High Bay Warehouse Lighting Fixture 120W Cold Storage SAA NSF Certificated

Why choose LED from Sunluxx ?


Our service
1.OEM & ODM are offered.
2.Professional R&D engineer.All your questions will be replied in 24 hours.
3.Distributorship is offered for your unique design and some our currect models.
4.Protection of your sales area,Ideas of design and all your private information.
5.If the oder more than 500pcs,we will return back the payment of samples.


Reliability
1.As long as 72h aging test with automatic switching before each shipment.
2.100% vibratility test will make sure the fastness of the assembling.
3.100% resist voltage test makes sure those tubes compatible for both 100v 277v.
4.More than 95% lumen maintenance based on the 6000h LM-80-08 test

5.-40°C to 50°C(-40°F to 122°F) extreme environment compliant.


Trade Terms
- Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.
- Production lead time for 100~500pcs: 7days, 500~1000pcs:10days
- Sample can be delivered in 3 days
- Shipping port: SHENZHEN
- Discounts are offered based on order quantities




Shipping


160 LMW LED High Bay Warehouse Lighting Fixture 120W Cold Storage SAA NSF Certificated
