NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type
Specifications
Brand Name :
SUNLUXX
Model Number :
FAL-150W
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
US$145.6/PC, EXW Price
Payment Terms :
T/T, Western Union
Supply Ability :
6000 PCS per Month
Delivery Time :
3 - 5 working days
Packaging Details :
54cm*46cm*19cm / 2pcs / 13.5kg / carton
Watts: :
150W
Lumens: :
21000lm
Voltage: :
90-305VAC
Efficiency: :
140lm/W
LED Chip: :
Nichia 3030
CCT: :
3000K - 5700K
CRI: :
>70 or >80
Beam Angle: :
ANB,AWB,SNB,SWB
Operating Temperature: :
-40℃ to +45℃
IP: :
66
IK: :
10
Installation Way: :
Adjustable bracket
Driver: :
Sosen
Warranty: :
5 yrs
Item Type: :
Flood light
LED Type: :
SMD
Description

Aluminum Yard Sport File 150W LED Area Flood Light , IP66 , IK10 , Outdoor Area Lighting

Features

• NICHIA 3030 LED chips, high brightness, 140lm/W, low consumption, green for environment.

• Easy to install and use, secure and reliable.

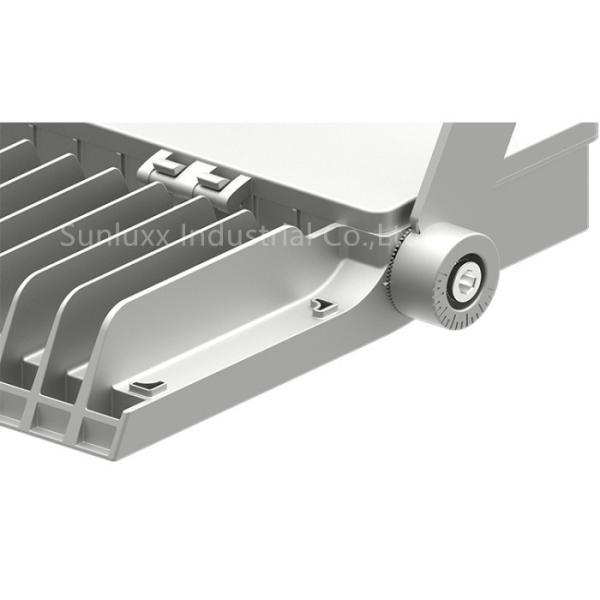

• Aluminum die-casting lamp body, strong and no shape change. Streamline design, Farrari idea solution, high quality.

• Technical design, reduce hermetic case presure, avoid water vapor or hamful gas.

• With adjustable bracket, satisfy different lighting angle requirements.

• Various beam angle: ANB, AWB, SNB, SWB, professional for different lighting situations.

• Strong Wind resistance, long life span > 50,000hrs, protection grade is IP66, IK10.

Technich Data

Power 150W
Input Voltage 90 - 305VAC
Input Current 0.68A@220VAC
PF >0.9@220VAC
DC Output Voltage 48V
DC Output Current 2.9A
Dimming (Optional) 3 in one dimming(PMW, 1-10V,Resistor), DALI
CCT 4000k, 5000k, 5700K, 3000K and 2700K can be customized
Ra>80,5000K Typical Flux 19500lm±10%
Efficiency 130lm/W±10%
Ra>70,5000K Typical Flux 21000lm±10%
Efficiency 140lm/W±10%
LED Brand NICHIA 3030
Light Type Asymmetric and symmetric polarized light
Operation Temp. -40 ℃ to + 45 ℃
Storage Temp. -40 ℃ to + 85 ℃
Lifespan 45℃ , 50,000 hours
IP Class 66
IK Class 10
Lamp Body Color Grey or as customized
Product Size(mm) 330*373*50
Net Weight(kg) 4.76
Packing size(mm) 540*460*190
Gross Weight(kg) 13.5
Product Quantity Per Carton 2pcs
Installation Method Bracket Mount

NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type

NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body TypeNICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type

Product Size

NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type

Beam Angle

ANB AWB SNB SWB

NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type

Installation Manual

NICHIA 3030 LED Area Flood Lights 150W Aluminum Die Casting Lamp Body Type

Applications

  • Outdoor lighting
  • Architectrural lighting
  • Storage spaces
  • Golf courts
  • Landscape lighting
  • Gym lighting
  • Warehouse lighting
  • Square, park, wall of buildings, church, bridge, public area.
