Specifications
Regulating range of frequency :
30Hz-300Hz
Insulation resistance :
No less than 22MΩ
Number of Detectors :
>40db
Customized support :
OEM, ODM, OBM
Dimension :
Fid, Tcd, Ecd, Fpd, Npd (Optional)
Accuracy Class :
High Accuracy
Display :
192*64 LCD
Voltage :
380 V, 220 V
Packaging Details :
carton
Temperature rise :
< 60℃
Max. output current :
1A single piece (could be customized)
Accuracy :
±1%
Warranty :
2 Years
Utmost output capacity :
3*300VA
Max. output voltage :
300kV (could be customized)
Model Number :
MY DGA
Application :
Auto Testing, Electrical Testing
Three phase coarse tuning :
0°~360°, 300 phase shifting each step.
Start Sampling :
Manual, Auto
Type :
Testing Machine
Place of origin :
Hubei, China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Power :
300W
Phase of output :
single-phase
Temperature Control Area :
6 Loops
Protection Class :
IP65
MOQ :
1
Output current AC: :
0~20A
Place of Origin :
China Mainland
Programmed Temperature Order :
16
External :
4 Loops
Brand Name :
MINGYANG
Price :
10000usd
Delivery Time :
1 week
Insulation level :
under 1.1 times and keeping 1 min, normal
Noise level :
no more than 65dB
Description
Portable Transformer Oil Test Insulating Oil Chromatography Oil Dissolved Gas Analyzer
Advanced portable testing instrument designed for comprehensive analysis of transformer oil and insulating oil through chromatography and dissolved gas analysis.
Technical Specifications
Parameter Specification
Operating Display 192*64 lattice sinicized liquid crystal
Temperature Control Zones 6 routes
Temperature Range Indoor temperature +5℃～400℃, increment: 1℃, precision: ±0.1℃
Temperature Program Steps 16 steps
Heating Rate 0.1～40℃/min
Pneumatic Control Mechanical valve control mode or electronic pressure flow control mode (optional)
External Events 4 routes
Sample Injector Types Fill column, capillary, six way valve gas injection, automatic headspace injection, etc. (optional)
Detection Configuration 5 entries: FID, TCD, ECD, FPD, NPD (optional)
Sample Start Manual or automatic (selectable)
Communication Port Ethernet: IEEE802.3

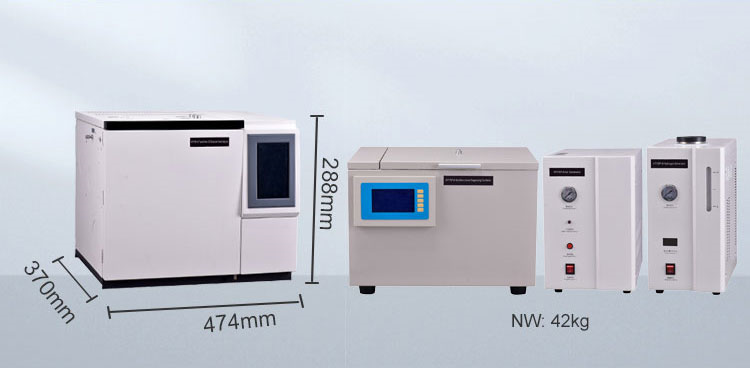

System Components & Dimensions
Main Unit: Gross weight: 59kg, Dimensions: 70*60*65cm³
Oscillation Device: Gross weight: 42kg, Dimensions: 61*46*57cm³
Air Gas Generator: Gross weight: 42kg, Dimensions: 65*40*77cm³
Hydrogen Generator: Gross weight: 21kg, Dimensions: 53*36*55cm³
Gas Cylinders: Gross weight: 17kg, Dimensions: 96*21.5*21.5cm³
Product Images
Portable Transformer Oil Test Insulating Oil Chromatography Oil Dissolved Gas Analyzer
Portable Transformer Oil Test Insulating Oil Chromatography Oil Dissolved Gas Analyzer
Portable Transformer Oil Test Insulating Oil Chromatography Oil Dissolved Gas Analyzer
Portable Transformer Oil Test Insulating Oil Chromatography Oil Dissolved Gas Analyzer
High Voltage Transformer in use with clamp transformers during dielectric strength testing
Portable Transformer Oil Test Insulating Oil Chromatography Oil Dissolved Gas Analyzer
High Voltage Transformer measurement setup and configuration
Portable Transformer Oil Test Insulating Oil Chromatography Oil Dissolved Gas Analyzer
Detailed view of High Voltage Transformer controls and electrical connections
