Specifications
Brand Name :
MINGYANG
Model Number :
MY -202
Place of Origin :
China Mainland
MOQ :
1
Price :
6600usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
1 week
Packaging Details :
carton
Type :
Testing Machine
Voltage :
220V Electrical Equipment
Accuracy :
±0.5%
Customized support :
OEM, ODM, OBM
Warranty :
2 Year
Color :
blue
Primary current :
0-1000A
Primary voltage :
0-2500V
MOQ :
1 Set
Protection Class :
IP65
Place of origin :
Hubei, China
Power :
20VA
Accuracy Class :
Standard Accuracy
Power supply :
220V 50Hz
Ratio :
≤0.5%
Secondary current :
0-5A
Description
High Accuracy CT PT Analyzer for Protective Current Transformer and Voltage Transformer
Product Overview

MY-103 is a full automatic PT, CT characteristics tester. The instrument can complete tests including: CT Volt-ampere characteristics test, PT Volt-ampere characteristics test, CT Polarity test, PT Polarity test, CT variable ratio Polarity test, PT variable ratio Polarity test, Automatic computing CT arbitrary point error curve, CT/PT variable ratio.

Key Features
  • Full Function: Comprehensive CT and PT testing capabilities
  • Output Keeping: Boost function for measurement, detection, and secondary AC withstand voltage test
  • True Effective Value Sampling: All voltage and current signals are true effective values
  • Single Power Supply: Easy operation with AC220V input only
  • U Disk Save: Test data transmission to PC via USB
  • Date and Clock: Built-in system time for test record tracking
  • No Contact Test: High safety with fully computerized operation
  • Large Output Capacity: AC voltage output up to 2000V, current output up to 25A short time
  • Large 8-inch Color Touch Screen: High-resolution 1024*768 LCD with Chinese graphical interface
  • Touch Screen Operation: Advanced touch technology for simple, convenient operation
  • Ultra Large Capacity Data Storage: 50 groups of test data storage with U disk backup
CT Test Functions
  • Volt ampere characteristic curve
  • Automatic calculation of curve inflection point
  • 5% and 10% error curve
  • Ratio and polarity
  • Differential and angular difference measurement
  • Secondary side circuit load testing
  • Secondary winding AC withstand voltage
  • Secondary DC resistance test
  • Flow test
PT Test Functions
  • Volt ampere characteristic curve
  • Automatic calculation of curve inflection point
  • 5% and 10% error curve
  • Ratio and polarity
  • Difference, angular difference measurement
  • Secondary side circuit load testing
  • Secondary winding AC withstand voltage
  • Secondary DC resistance test
Technical Parameters
Parameter Range/Value Resolution
Power input voltage AC 220 V -
CT volt ampere characteristic test 0~2500 V, 0~20A 1mV, 1mA
CT variable ratio error, angle error test 0~1000A (primary), 0~5A (secondary) 1mA
CT secondary loop load 0~5A, 0~10Ω 1mA, 0.001Ω
PT Volt-ampere characteristic test 0~200V, 0~10A 1mV, 1mA
PT variable ratio, ratio angle error test 0~2500V (primary), 100V/57.7V/100/3V (secondary) 1mV
Accuracy class - Volt ampere characteristic test < 0.5% -
Accuracy class - 5% and 10% error curve < 1% -
Working environment temperature -10℃ - +50℃ -

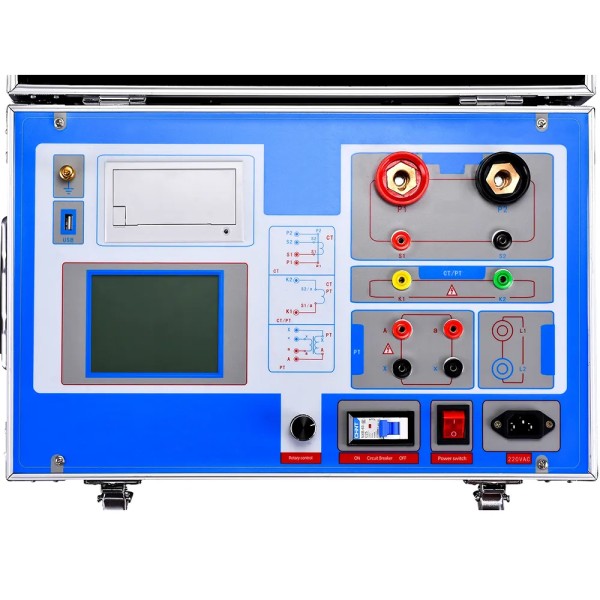

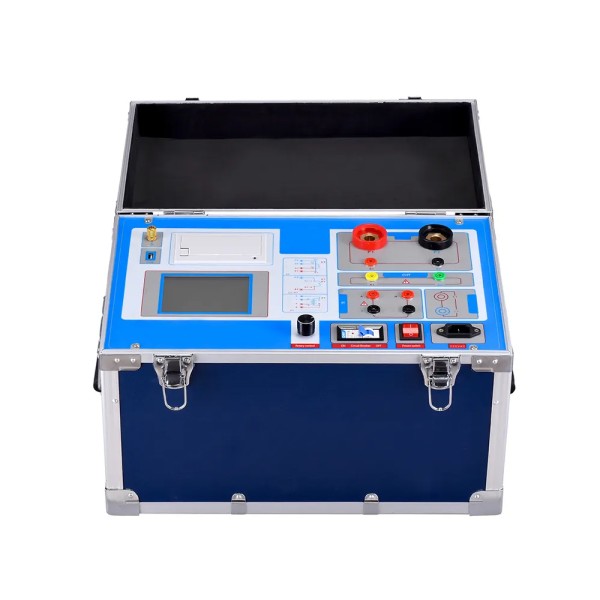

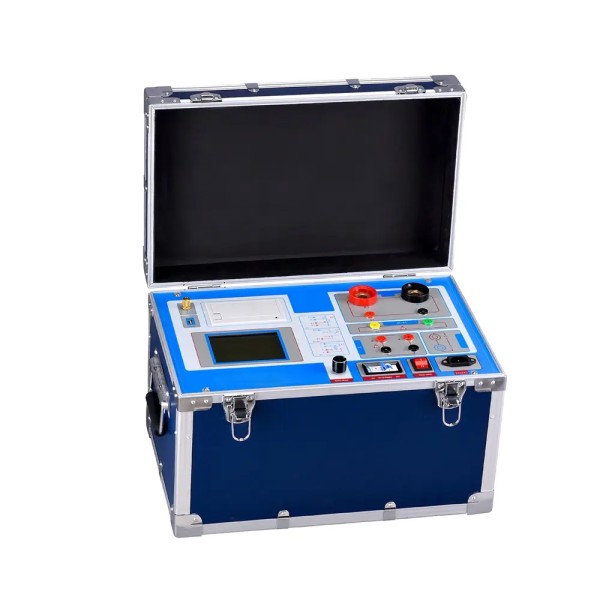

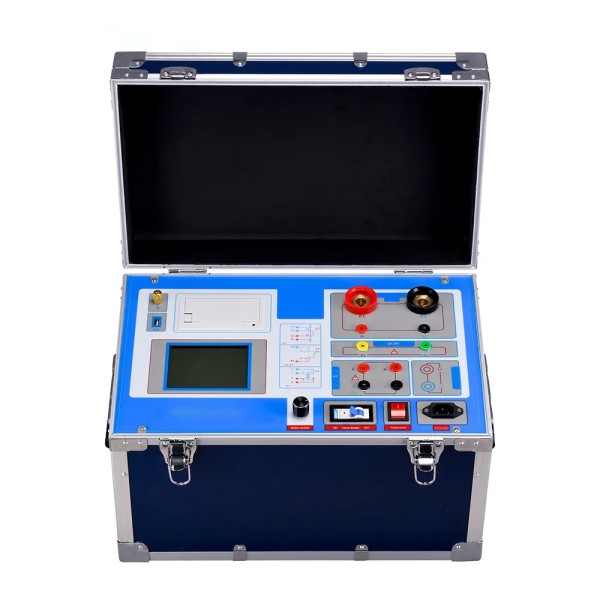

Product Images
