Specifications
Brand Name :
MINGYANG
Place of Origin :
China Mainland
MOQ :
1
Price :
7000usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
1 week
Packaging Details :
carton
Model Number :
MY-A30
Warranty :
2 Years
Technology :
Time Domain Reflection (TDR) technology
Inner package :
Plastic case+foam plate+dust bag
Place of origin :
Hubei, China
3 capacitors :
2uF/30kV
Test content :
Cable open circuit
Outer packaging :
Standard wooden box for import and export
Online services :
Training/Technical support
Description
Cable Fault Finder Location System
Underground Cable Fault Locator for Pile Integrity Tests
Product Overview
The multiple pulse cable fault tester consists of a distance measurement host and pulse signal coupling unit. This dedicated system equipment was developed specifically for power cable fault testing to meet the evolving demands of the power industry. It provides comprehensive testing capabilities for various cable faults and establishes cable archives for maintenance and management.
Advanced TDR Technology
Utilizing the highest level of time-domain reflectometry (TDR) technology, this system features automatic fault distance determination with clear, simple waveforms. The multiple pulse technology based on TDR fundamentally transforms complex high-resistance fault waveforms into easily identifiable low-voltage pulse short-circuit fault waveforms, eliminating interpretation challenges.
The system converts any complex high-resistance waveform into familiar low-voltage pulse short-circuit fault waveforms, completely solving the long-standing problem of identifying complex high-resistance fault waveforms.
Key Features
  • Applicable to various faults in power cables up to 35kV: open circuit, short circuit, low resistance, high resistance leakage and high resistance flashover faults
  • Compatible with multiple testing methods: low-voltage pulse, impulse flashover, three-pulse, eight-pulse and velocity measurement methods
  • Fully Chinese operation software with intuitive touch screen interface and text prompts
  • Industrial-grade 10.4-inch color touch LCD screen with synchronous global and local waveform display
  • Simultaneous collection of 8 real waveforms for easier interpretation and reduced testing errors
  • Internal battery power for extended use in environments without power supply
  • Compact, lightweight design with high fault detection success rate and testing accuracy
  • Stable performance in any environment with safe high-voltage protection measures
  • Internal storage/retrieval function for convenient data and waveform analysis
  • Multiple pulse widths eliminate testing blind spots
Technical Specifications
Sampling Methods Low-voltage pulse, impulse flashover, three-pulse, eight-pulse, velocity measurement
Sampling Rate 200 MHz, 100 MHz, 80 MHz, 40 MHz, 20 MHz, 10 MHz
Pulse Width 0.05 μs, 0.1 μs, 0.2 μs, 0.5 μs, 1 μs, 2 μs, 8 μs
Wave Velocity Setting Cross-linked ethylene, polyvinyl chloride, oil-impregnated paper, non-dripping oil and automatic unknown type
Impulse High Voltage 40 kV and below
Test Distance < 60 km
Resolution 1 m
Test Accuracy 1 m
Display Industrial-grade 10.4-inch color touch LCD screen
Operating Modes Touch screen operation, physical knob operation
Continuous Operation > 4 hours (internal battery or external power supply)
Protection Rating IP67 industrial-grade safety protection box
Dimensions 365 mm * 269 mm * 169 mm
Weight 3.8 kg
Product Images

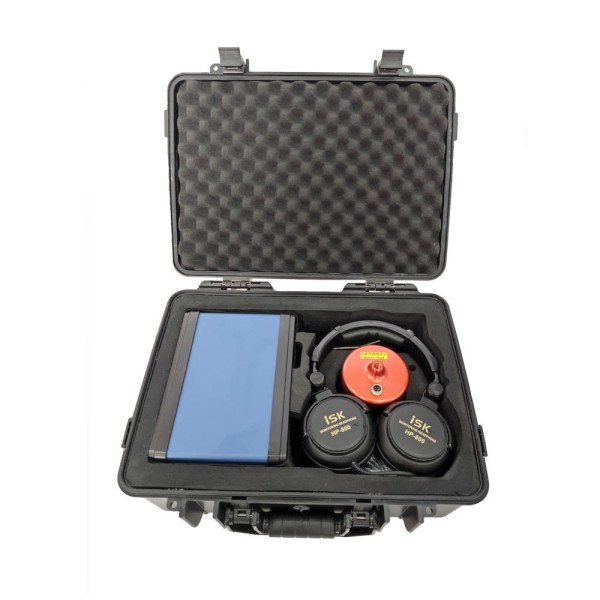

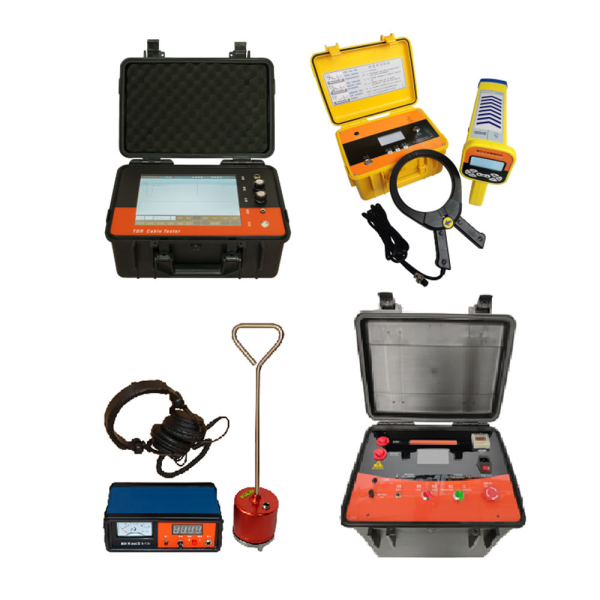

Full Set Cable Fault Tester with TDR, Path Tracer, Pinpointer and High Voltage Surge Generator for 0-35kV Power Cables

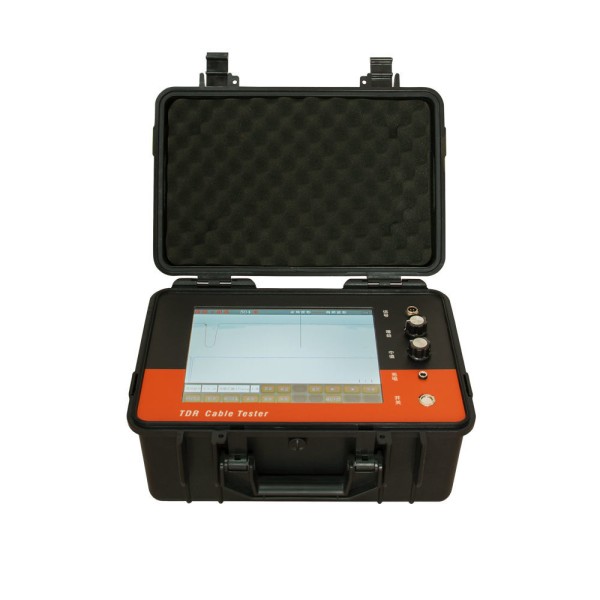

Full Set Cable Fault Tester with TDR, Path Tracer, Pinpointer and High Voltage Surge Generator for 0-35kV Power Cables

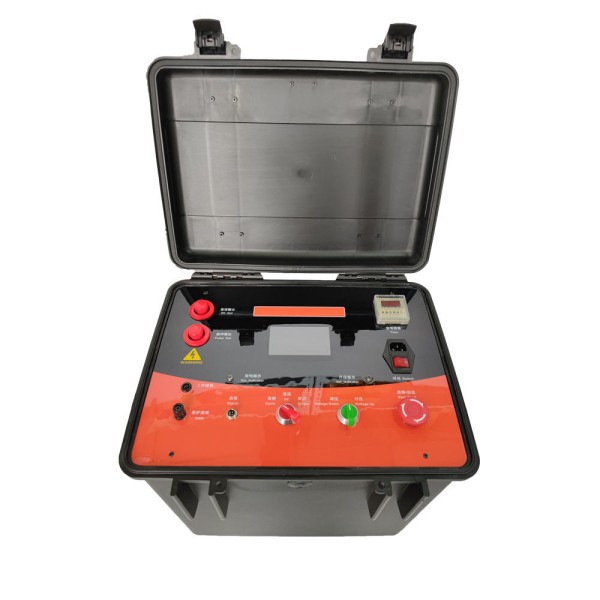

Full Set Cable Fault Tester with TDR, Path Tracer, Pinpointer and High Voltage Surge Generator for 0-35kV Power Cables
