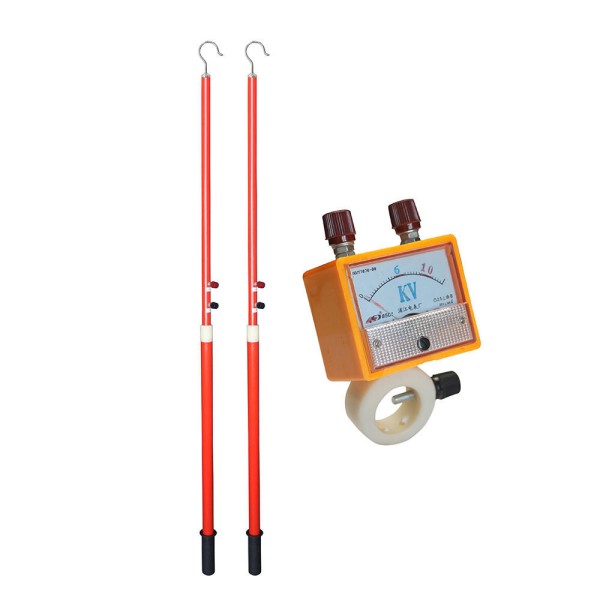

Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
Specifications
Brand Name :
MINGYANG
Model Number :
MY-2000B
Place of Origin :
China Mainland
MOQ :
1
Price :
180usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
1 week
Packaging Details :
carton
Type :
Testing Machine
Protection Class :
IP65
Power :
10
Application :
Electrics
Function :
Phase checking
Voltage :
Other
Customized support :
OEM
Accuracy :
0.05
Place of origin :
Hubei, China
Warranty :
2 Years
Support :
OEM,wholesales,dropshipping
Feature :
High Efficiency
Package :
Safety Box
Description
High Voltage Phasing Sticks Tester HV Phase Detector HV Detector
Professional high voltage phasing sticks tester designed for accurate phase detection in high voltage electrical systems.
Key Features
  • Clear audio and visual indicators for phase identification
  • Low voltage testing capability (220V or 380V) for equipment verification
  • Automatic power management with energy-saving operation
Material Characteristics
Property Unit Value
Heat resistance (longitudinal) ℃ ≥ 200
Shock resistance (longitudinal) mpa/cm ≥ 147
Bending resistance (longitudinal) mpa ≥ 343
Surface resistivity (after water immersion) Ω ≥ 10*10¹¹
Volume resistivity (normal) Ω/cm ≥ 10*10³¹
Impact Withstand Voltage Test
Rated Voltage (kV) Impact Withstand Voltage (kV) Polar Distance
10 100 0.4
Insulation Tube Specifications
Rated Voltage (kV) Attenuation Components Active Length (M) Handheld Length (M) Whole Length (M)
6-10 0.55-0.7M, 36-50MΩ 0.8 0.8 1.6
Phase Identification Signals
Condition Language/Display Audio Light
Different Phase Voltage indication Audio prompt Bright
Same Phase No indication No audio Not bright
Standard Accessories
Item Name Quantity
1 Tester One
2 Test line One
3 Insulating rod One
4 Specification One
5 Inspection Report One
6 Certification One
Product Images
Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
