High Accuracy IP67 Insulation Resistance Tester For Transformer Maintenance Motors Cables
High Accuracy IP67 Insulation Resistance Tester For Transformer Maintenance Motors Cables
High Accuracy IP67 Insulation Resistance Tester For Transformer Maintenance Motors Cables
High Accuracy IP67 Insulation Resistance Tester For Transformer Maintenance Motors Cables
High Accuracy IP67 Insulation Resistance Tester For Transformer Maintenance Motors Cables
High Accuracy IP67 Insulation Resistance Tester For Transformer Maintenance Motors Cables
Specifications
Brand Name :
MINGYANG
Model Number :
MYJY-10kV
Place of Origin :
China Mainland
MOQ :
1
Price :
450usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
1 week
Packaging Details :
carton
Type :
Insulation Resistance Tester
Accuracy Class :
High Accuracy
Application :
Universal Testing
Voltage :
Other
Warranty :
2 Years
Power :
NO
Display Type :
Analogue and Digital
Dimensions :
244*188*85mm
Accuracy :
±1%
Customized support :
OEM, ODM, OBM
Protection Class :
Ip67
Measuring Method :
Earth Voltage
Resolution :
0.001
Test voltage range :
0 - 600V
Usage :
Voltage test
Function :
Voltage Test
Description
Digital Megohmmeter High Accuracy IP67 Protection Insulation Resistance Tester
Product Overview

Professional digital megohmmeter designed for high-accuracy insulation resistance testing of transformers, motors, and cables. Features IP67 protection rating for reliable operation in demanding industrial environments.

Key Functions
  • Insulation resistance testing
  • Voltage testing (AC/DC)
  • DC current measurement
  • Capacitance testing
  • Absorption ratio and polarization index measurement
Technical Specifications
Model Comparison
Model Rated Voltage Insulation Resistance Range Resolution
ES3045 100V, 250V, 500V, 1000V, 2500V, 5000V 0.01MΩ - 10TΩ 0.01MΩ
ES3045E 250V, 500V, 1000V, 2500V, 5000V, 10KV 0.01MΩ - 35TΩ 0.01MΩ
ES3045F 500V, 1000V, 2500V, 5000V, 10KV, 15KV 0.01MΩ - 50TΩ 0.01MΩ
Measurement Capabilities
Test Voltage: Rated voltage * (1±10%)
DC Voltage Range: 0-1000V (Resolution: 0.1V)
AC Voltage Range: 0-750V (Resolution: 0.1V)
DC Current: 0.1nA-6mA (Resolution: 0.1nA)
Capacitance: 10nF-50μF (Resolution: 10nF)
Output Short-circuit Current: ≥6mA @ 15KV
Display & Interface
Display: 4-bit large LCD with gray screen backlight
LCD Size: 108mm * 65mm
Backlight: Controllable gray screen, suitable for dim environments
USB Interface: Software monitoring, data upload to computer
Data Storage: 500 groups with "FULL" indicator
Data Review: "MR" symbol display for data review function
Power & Physical Specifications
Power Supply: 12.6V rechargeable battery
Power Consumption: Standby: 30mA max, Measurement: 200mA max
Automatic Shutdown: 15 minutes after boot

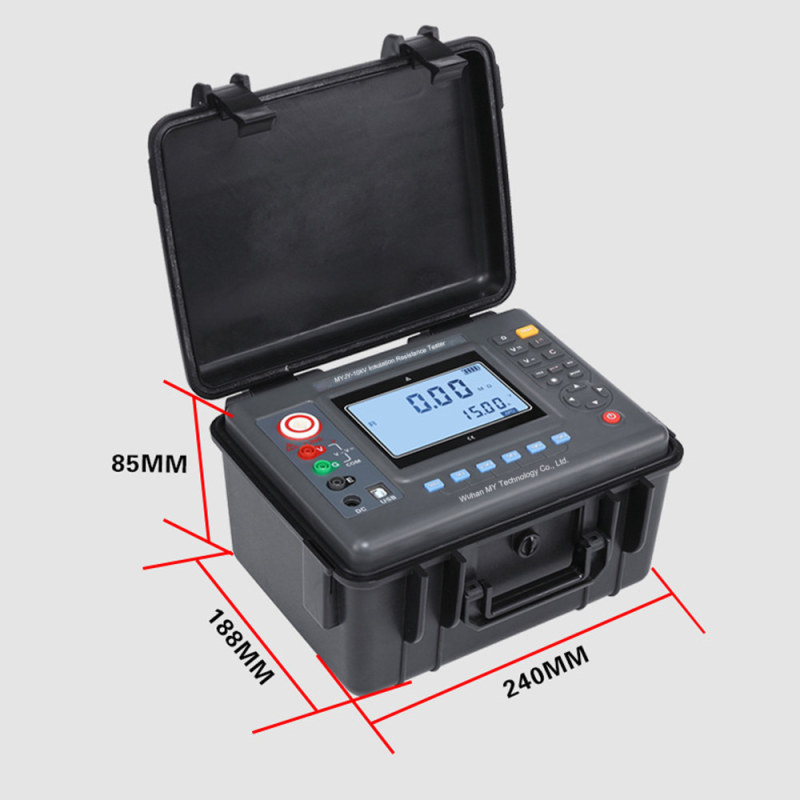

Instrument Size: 240mm * 188mm * 85mm
Instrument Weight: 2750g (including battery)
Environmental & Safety Specifications
Working Conditions: -10℃ to +50℃, <85% RH
Storage Conditions: -15℃ to +55℃, <90% RH
Insulation Resistance: ≥50MΩ (between measuring line and housing)
Pressure Resistance: AC 3kV/50Hz for 1 minute
Safety Standards: IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54)
Included Accessories
  • USB communication cable (1 piece)
  • High voltage probe red (3 meters)
  • High voltage test line black (1.5 meters)
  • High voltage test line green (1.5 meters)
Product Images
High Accuracy IP67 Insulation Resistance Tester For Transformer Maintenance Motors Cables High Accuracy IP67 Insulation Resistance Tester For Transformer Maintenance Motors Cables High Accuracy IP67 Insulation Resistance Tester For Transformer Maintenance Motors Cables High Accuracy IP67 Insulation Resistance Tester For Transformer Maintenance Motors Cables
