Specifications
Brand Name :
MINGYANG
Model Number :
MY-2670
Place of Origin :
China Mainland
MOQ :
1
Price :
220usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
1 week
Packaging Details :
carton
Max. Ac Voltage :
5kV
Display Type :
Digital Only
Operating Temperature :
0-40℃
Max. AC Current :
20mA
Dimensions :
320*270*180mm
Application :
Industrial Measurement
Output voltage :
AC:0~5kV
Test accuracy :
±(5%+3 characters)
Transformer capacity :
100VA
Power requirements :
AC:220V+10% 50Hz/60Hz±3Hz
Test current :
AC:0~2/20mA
PLC :
interface Optional
Description
High Voltage Tester Withstand Voltage Electronic Measuring Instrument
The High Voltage Tester is a precision instrument designed for measuring voltage strength, providing accurate and rapid testing of breakdown voltage, leakage current, and other critical electrical safety performance indicators. This instrument serves as a reliable high voltage source for comprehensive testing of both components and complete systems.
Compliance Standards
This tester series complies with major international and domestic standards including: Household appliance standards (IEC6035, GB4706.1-2001, GB4793.1-2007), lighting standards (IEC60598-1-1999, GB7000.1-2000), and information technology standards (GB8898-2001, GB12113, GB4943-2001, IEC60065, IEC60950).
Application Fields
Components: Diodes, transistors, high voltage silicon stacks, electronic transformers, connectors, high voltage electrical components
Household Appliances: Televisions, refrigerators, air conditioners, washing machines, dehumidifiers, electric blankets, chargers
Insulation Materials: Heat shrink bushing, capacitor film, high voltage bushing, insulating paper, insulating shoes, insulating rubber gloves, PCB circuit boards
Instruments & Meters: Oscilloscopes, signal generators, DC power supplies, switching power supplies
Lighting Equipment: Ballasts, street lamps, stage lights, hand lamps
Electric Tools: Electric drills, pistol drills, gas cutting machines, grinders, welding machines
Wire & Cable: High voltage wire, cable, silicone rubber cable
Performance Characteristics
  • Output voltage regulated through precision voltage regulation with high reliability and durability
  • High brightness LED digital display for real-time monitoring of test time, voltage, current, and breakdown values
  • Continuously adjustable preset alarm current values
  • Three-digit display for precise test timing
  • PLC signal input/output interface for integration into comprehensive test systems

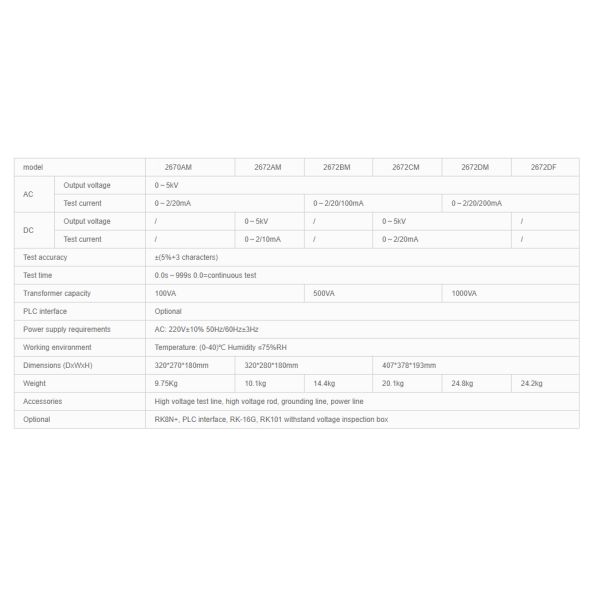

Technical Specifications
5kV AC High Voltage Withstand Tester With Digital Display Industrial Grade
5kV AC High Voltage Withstand Tester With Digital Display Industrial Grade
Cable Fault Finder in use with clamp transformers
5kV AC High Voltage Withstand Tester With Digital Display Industrial Grade
Cable Fault Finder measurement setup
5kV AC High Voltage Withstand Tester With Digital Display Industrial Grade
Cable Fault Finder detailed controls and connections
