Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Specifications
Brand Name :
MINGYANG
Model Number :
MY-2571
Place of Origin :
China Mainland
MOQ :
1
Price :
250usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
1 week
Packaging Details :
carton
Warranty :
2 years
Power :
Electronic
Customized support :
OBM, ODM, OEM, Software Reengineering
The environment temperature :
0℃~+45℃
Place of origin :
Hubei, China
Maximum power loss :
≤2W
Weight :
≤1.4kg
Dimension :
220*200*105mm3
Allowable ground voltage :
≤5V,error≤±5%
Resistance :
0~2Ω(10mA),2~20Ω(10mA),20~200Ω(1mA)
Description
Portable Digital Grounding Resistance Tester
Professional Earth Resistance Measurement Meter

This portable digital grounding resistance tester provides accurate earth resistance measurement for electrical testing applications. The unit comes with a 2-year warranty and features electronic power source operation.

Technical Specifications
Operating Conditions
Parameter Specification
Environment Temperature 0℃～+45℃
Relative Humidity ≤85%RH
Measurement Range & Constant Current (RMS)
Measurement Type Range
Resistance 0～2Ω (10mA), 2～20Ω (10mA), 20～200Ω (1mA)
Voltage AC 0～19.99V
Measurement Accuracy & Resolution
Parameter Specification
Precision 0～0.2Ω ≤ ±3% ±1d
0.2Ω～199.9Ω ≤ ±1.5% ±1d
1～19.99V ≤ ±3% ±1d
Resolution 0.001Ω, 0.01Ω, 0.1Ω, 0.01V
Measurement Error Specifications
Parameter Specification

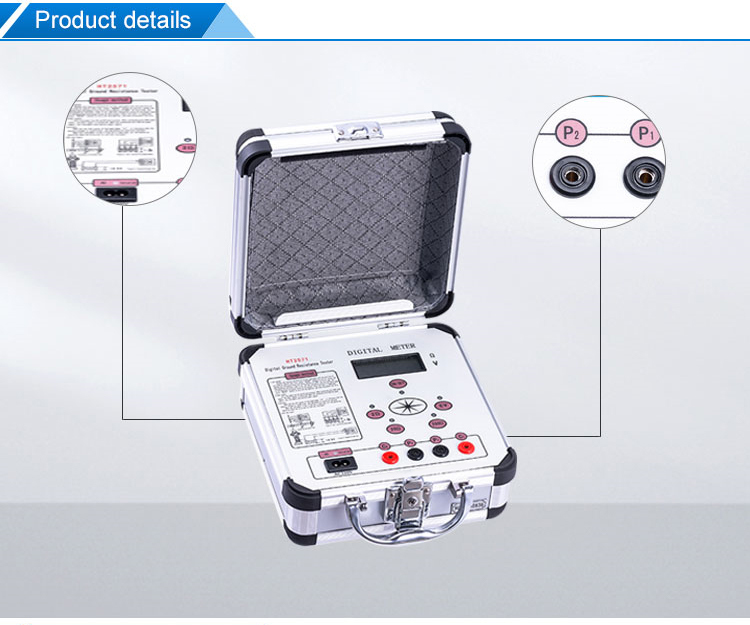

Allowable Auxiliary Grounding Resistance RC (Between C1 and C2):
0～2Ω, 2～20Ω ≤ 1kΩ
20～200Ω ≤ 2kΩ
RP (Between P1 and P2) < 40kΩ, error ≤ ±5%
Allowable Ground Voltage (Power Frequency RMS) ≤5V, error ≤ ±5%
Power Specifications
Parameter Specification
Maximum Power Loss ≤2W
DC Power 8 × 1.5V (AA, R6) Battery
AC Power 220V/50Hz

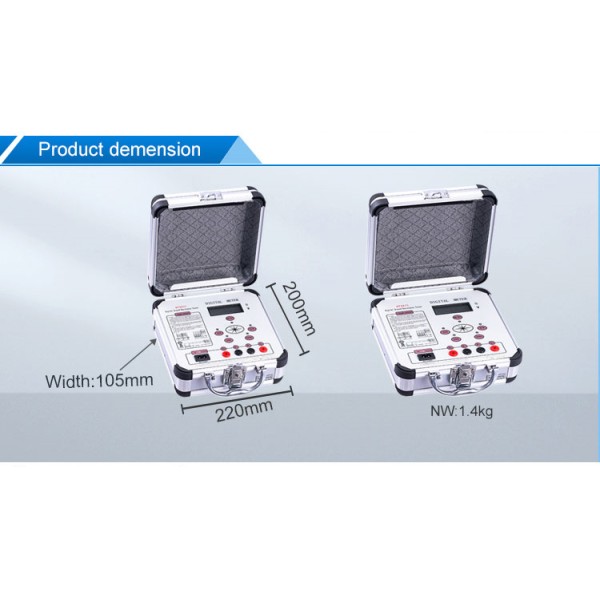

Physical Specifications
Parameter Specification
Dimensions 220 × 200 × 105 mm³
Weight ≤1.4kg

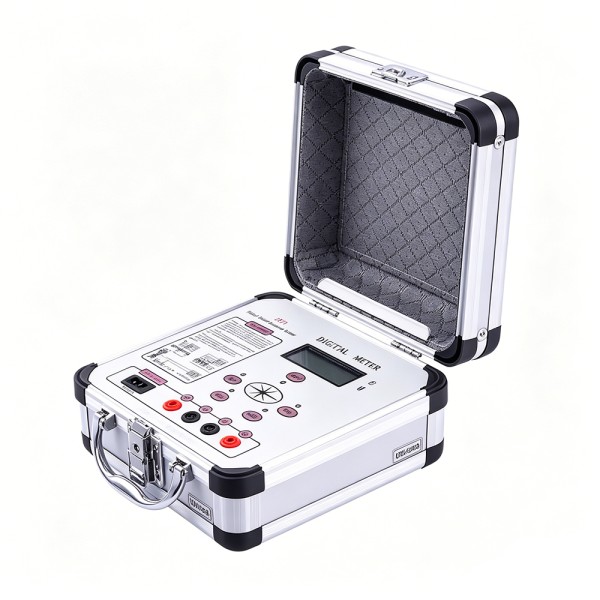

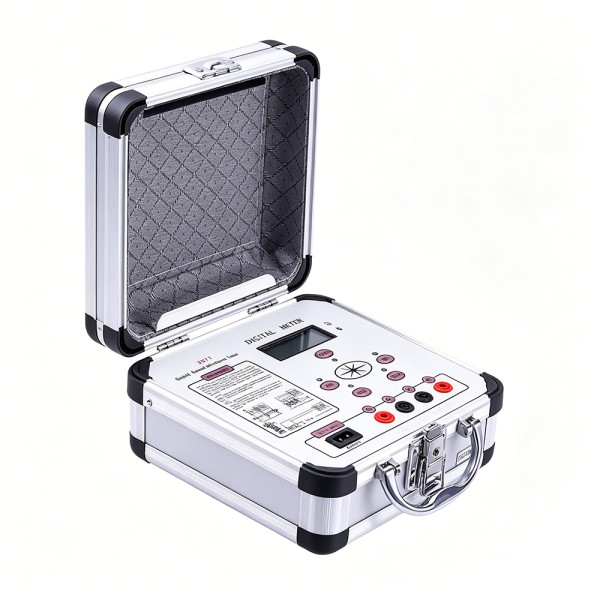

Product Images
Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
