10mA Insulation Resistance Meter, 0.01MΩ~1999GΩ with 500kV Anti-Interference
10mA Insulation Resistance Meter, 0.01MΩ~1999GΩ with 500kV Anti-Interference
10mA Insulation Resistance Meter, 0.01MΩ~1999GΩ with 500kV Anti-Interference
10mA Insulation Resistance Meter, 0.01MΩ~1999GΩ with 500kV Anti-Interference
Specifications
Brand Name :
MINGYANG
Model Number :
MYJY-20kV
Place of Origin :
China Mainland
MOQ :
1
Price :
1000usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
1 week
Packaging Details :
carton
Type :
Testing Machine
Voltage :
220 V
Accuracy Class :
High Accuracy
Protection Class :
IP55
Accuracy :
±5%
Power :
10mA
Place of origin :
Hubei, China
Customized support :
OBM, ODM, OEM, Software Reengineering
Measurement range :
20~2000MΩ
Short circuit current :
10mA
Measurement voltage range :
0.1kV,0.25kV,0.5kV,1kV,2.5kV,5kV
Resistance measurement range :
0.01~1999MΩ
Temperature :
-20℃~+40℃
Relative humidity :
20%~90%
Weight :
5.5kg
Description
Digital Electricians Portable Insulation Resistance Meter
High Voltage Megohmmeter Megohm Resistance Tester for Transformer applications, designed for professional electrical testing in demanding industrial environments.
Key Features & Benefits
  • Superior Anti-Interference for Live Substation Testing: Exceptional anti-electric field interference capability up to 2mA (50Hz), enabling insulation resistance testing of 500kV large-scale transformers without removing overhead lines. Powerful noise rejection eliminates extensive disconnection work, dramatically reducing testing time and enhancing safety in high-voltage substation environments.
  • High Short-Circuit Current for Large Inductive Loads: Engineered with 10mA short-circuit current output, specifically designed for testing high-capacity transformers and high-inductance equipment. Robust current capability ensures rapid charging of large inductive loads, delivering stable insulation resistance readings on massive power apparatus.
  • Ultra-Wide Resistance Measurement Range: Covers extensive range from 0.01MΩ to 1999GΩ with high resolution, providing accurate readings across diverse applications from low-resistance equipment to high-value insulation systems. Ideal single instrument for testing everything from small motors to large power transformers and high-voltage cables.
  • Broad Adjustable Output Voltage: Flexible output voltage selection including 0.5kV, 1kV, 2.5kV, 5kV, 10kV, and 20kV, with smooth continuous adjustment from 0V to any desired value. Versatility enables comprehensive insulation testing across multiple voltage classes, allowing technicians to perform polarization index, dielectric absorption ratio, and step-voltage tests with a single instrument.
Technical Specifications
Measurement Voltage Range 0.5kV, 1kV, 2.5kV, 5kV, 10kV, 20kV
Measurement Voltage Accuracy ±(5% + 10V)
Short Circuit Current 10mA

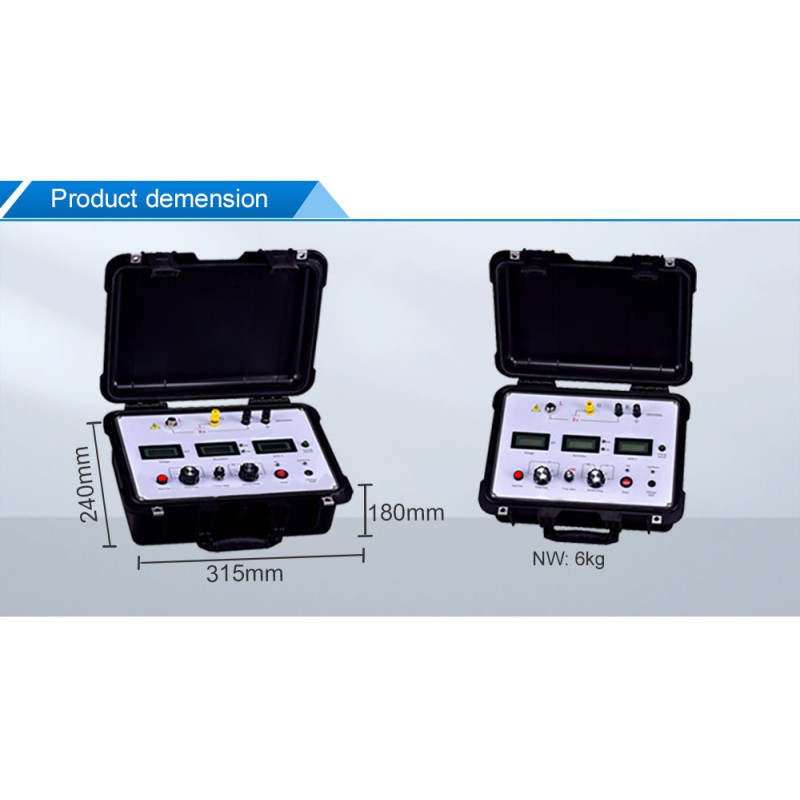

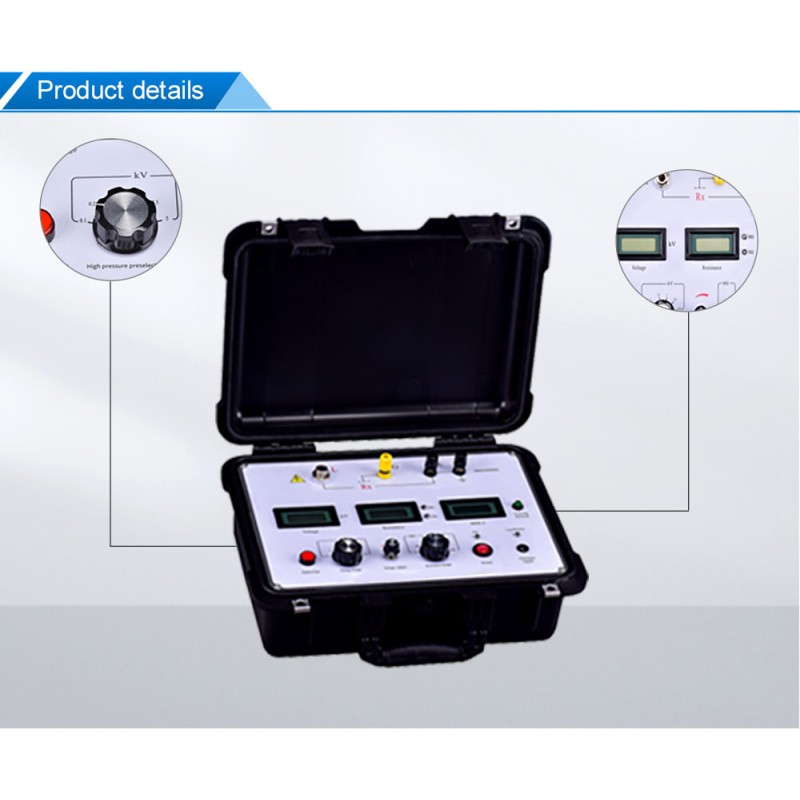

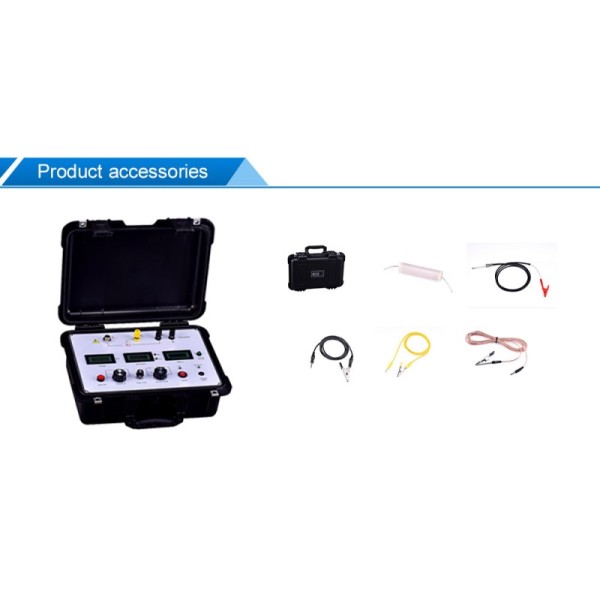

Product Images
