Fully Automatic Tan Delta Tester High Precision Anti-interference Dielectric Loss Power Factor Test Set

Product Description

Product overview
Dielectric Loss Measurement is very basic insulation testing method which can effectively found the deterioration damp deterioration of electrical equipment insulation, as well as local defects. In electrical manufacturing, electrical equipment installation, transfer and preventive tests are widely used. Measuring dielectric loss of transformers, CT/PT, reactors, capacitors, and bushings, surge arresters and other is the most basic measure of its insulating properties. HTJS-M tan delta tester breaks the traditional bridge measurement method, using variable frequency power supply technology, using SCM, and modern electronic technology for automatic frequency conversion, analog / digital conversion and data operations. With strong anti-jamming capability, fast test speed, high precision, automatic digitization, easy to operate; use switching power supply, 45Hz and 55Hz pure sine wave output, automatic apply voltage, providing a voltage up to 10 kV; automatically filter 50Hz interference, suit for substation and other strong electromagnetic interference field testing. Widely used in the power industry transformers, CT/PT, bushings, capacitors, surge arresters and other dielectric loss measurement equipment.

Products features

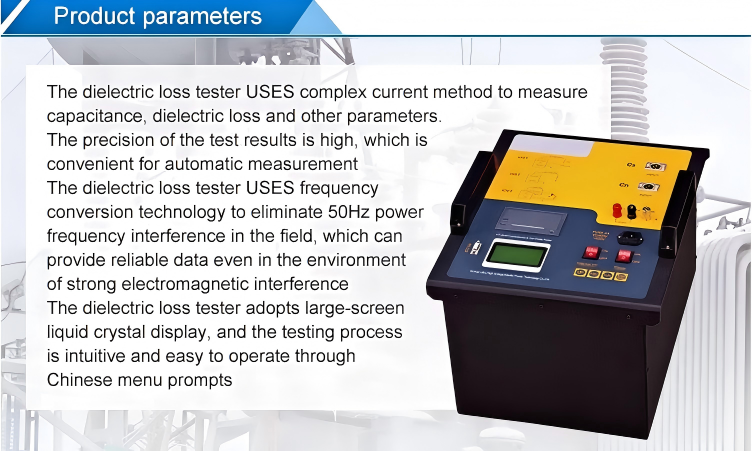

1.The tester adopts complex current method, which measuring capacitance, dielectric loss, and other parameters. High accuracy of test results, easy to realize automated measurement.
2.The tester adopts frequency technology to eliminate the scene 50Hz frequency interference, even under the condition of strong electromagnetic interference, can get reliable data.
3.Adopts large-screen LCD display, easy to operate.
4.Measurement process is controlled by a microprocessor, as long as to choose correct measurement method, measurement data can be automatically finished under microprocessor control.
5.Integrated design, built-in standard capacitor and HV power supply, convenient for field test, reduce field wiring.
6.High accuracy. Equipped with standard oil cups and dedicated test lines can realize oil dielectric loss measurement.
7.Set CVT test function, can achieve CVT self-excited method test, without external attachments, only need to test one time, capacitance and dielectric loss of C1, C2 can all be measured.
8.Reverse wiring test uses ivddv technology, eliminating the previous reverse wiring data instability phenomenon.
9.With reverse wiring LV shielding function, under the condition of 220 kV CVT busbar grounding, can measure reverse wiring dielectric loss for C11 without dismantling wire 10KV.
10.With measuring HV dielectric loss function, can use HV transformer or series resonance to carry out exceed 10kV voltage dielectric loss test.
11.With ground protection and over-current protection functions.
12.With leakage current protection function, the equipment will instantly cut off high-voltage output to protect operators from electrical hazards.

Basic Info.

Model NO.
MY-380
Voltage Range
0.5-10kv
Internal Hv
3PF~60000PF/10kv 60PF~1μf/0.5kv
Power
2kVA
Maximum Output Current
200mA
Frequency Accuracy
±0.01Hz
Input Power
180V~270VAC,50Hz
Computer Interface
Standard RS232 Interface
Temperature
-10~50
External Hv
3PF~1.5μf/10kv 60PF~30μf/0.5kv
Resolution
Max: 0.001PF,4 Digits
Tgδrange
Unlimited, Resolution of 0.001%
Test Frequency
45,50,55,60,65Hz
Measuring Time
About 40 S
Relative Humidity
<90%
Transport Package
Wooden Case or Carton
Specification
460*360*350mm3
Trademark
MINGYANG
Origin
China
HS Code
9030849000
Production Capacity
200 Sets Per Month
Technical Specifications
Accuracy Cx ±(reading×1%+1pF)
tgδ ±(reading×1%+0.00040)
Anti-interference index variable-frequency anti-interference, under 200% interference can still achieve the above accuracy
Capacitance Range internal HV 3pF~60000pF/10kV 60pF~1μF/0.5kV
external HV 3pF~1.5μF/10kV 60pF~30μF/0.5kV
resolution Max: 0.001pF,4 digits
tgδrange Unlimited, resolution of 0.001%, automatically identify the tested samples of capacitance, inductance and resistance.
Test CurrentRange 10μA~1A
Power 2kVA
Internal HV Voltage range 0.5~10kV
Max output current 200mA
Step-up and step-down voltage mode Continuous smooth adjustment
Test Frequency 45,50,55,60,65Hzsingle-frequency
45/55Hz,55/65Hz,47.5/52.5Hz automatic dual variable-frequency
Frequency Accuracy ±0.01Hz
External HV When forward wiring the max test current is 1A, power frequency or variable frequency is 40-70Hz
When reverse wiring the max test current is 10kV/1A, power frequency or variable frequency is 40-70Hz
CVT self-excited method low voltage output Output voltage 3 ~ 50V, output current 3 ~ 30A
Measuring time About 40 s, correlate with the measurement mode
Input Power 180V~270VAC,50Hz±1%
Computer Interface Standard RS232 interface
Printer A7 thermal mini printer
Temperature -10ºC~50ºC
Relative Humidity <90%
Dimension 460×360×350mm3
Weight 28kg
Important Note: On-site transformer housing is generally grounded. When testing the tanδ (dielectric loss) of transformers, the reverse connection method is generally selected. Only for fully insulated transformers is the forward connection method used for testing.
