MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
Specifications
Delivery Time :
1 week
Warranty :
2 YEAR
Temperature :
0℃~40℃
Model Number :
MYR
Voltage :
220 V
Place of origin :
Hubei, China
Price :
700usd
Packaging Details :
carton
Customized support :
OEM
Resolution :
0.1μΩ
Size :
Host360*290*170(mm) accessories 360*290*170(mm)
Supply Ability :
100pcs/month
Power :
200W
Data storage :
Group of 1000

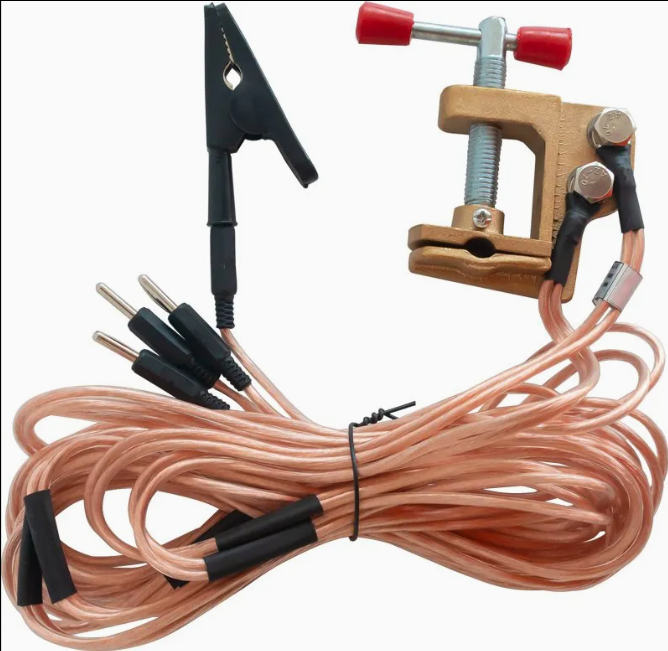

Test Connection Cable Length :
8 m
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Accuracy :
Class High Accuracy
Power supply :
AC 220V±10V,50Hz±1 Hz
Weights :
Host 5.6KG accessories 4.45KG
Keyword :
Resistance test
Place of Origin :
China Mainland
Application :
Electrical Testing
MOQ :
1
Protection Class :
IP55
Conversion temperature :
20℃~150℃
Brand Name :
MINGYANG
Type :
DC resistance tester
Function :
Resistance test for transformer, motor
Description

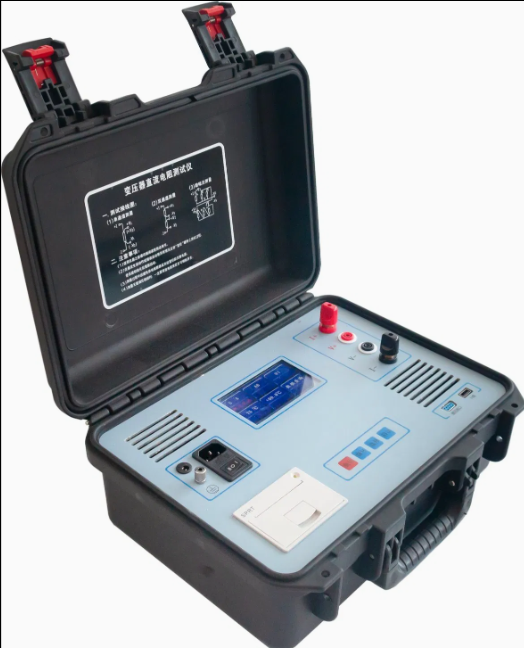

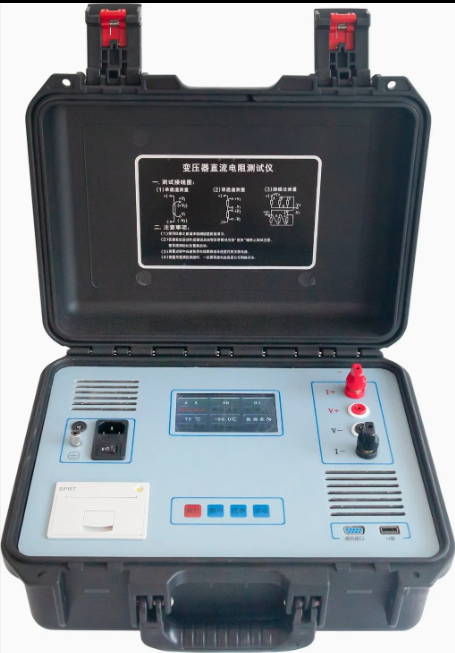

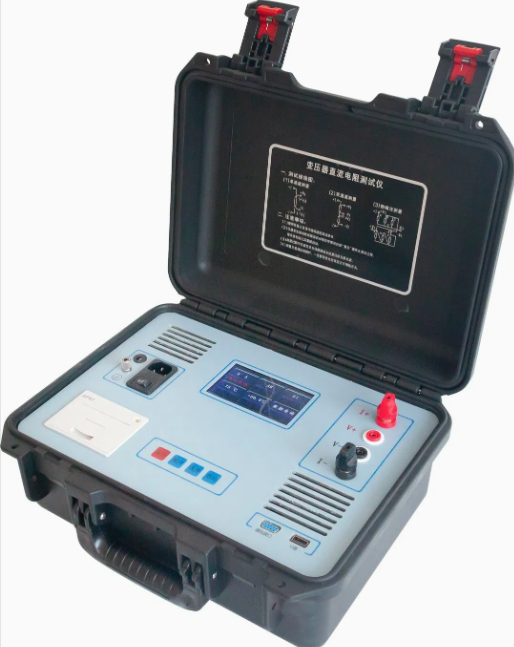

MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
Product Description
Transformer insulation resistance deterioration is one of the most common causes of transformer failure: a failing transformer is a costly replacement in an electrical system with the potential for a long downtime.By measuring a transformer's winding resistance from one HV transformer bushing to another, transformer resistance testing can reveal a great deal of information about the transformer. In addition to the obvious faulted transformer winding (i.e., an open winding or shorted turn), subtler problems can be detected. The DC current, in addition to flowing through the winding, also flows through the off-load ratio adjusting switch (DETC), the on-load ratio adjusting switch (on load tap changer or OLTC), as well as numerous welded and mechanical connections. Hence, the integrity of all these components can be verified with the use of transformer resistance test instruments. Applying DC test current through OLTC switches under transition (tap changes) validates proper make-before-break operation. From experience, it is known that the on load time changer has the greatest risk of misoperation as it operates within a transformer.




















Basic Info.

Model NO.
MYR
Mass Scope of Workpiece
<900kg
Type
Strength Testing Machine
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Static Load
Display
Digital
Control
Manual Control
Weight
0-100Kg
Power Source
AC220V
Oil Cylinder Position
Top
Measurement Accuracy
± (0.2%+2)
Work Temperature
-10°C~ 50°C
Output Current
10A 5A 1A
Environment Humidity
≤85%Rh
Power Frequency
50±1Hz
Work Power
110V-400V Adjustable
HS-Code
9030332000
Transport Package
Wooden Box with Foam Inside
Specification
46.00cm * 35.00cm * 44.00cm
Trademark
MINGYANG
Origin
Hubei, China
HS Code
9030339000
Production Capacity
100
Key Features
  • Mobile app control with fixed-format data storage for convenient access
  • 24V maximum output voltage for higher test currents and faster testing
  • Advanced power supply technology with multiple current ranges and automatic current selection
  • Comprehensive protection against back-EMF impact, interruptions, power failures, and overheating
  • Temperature conversion for copper and aluminum materials with touch input capability
  • Intelligent power management for energy efficiency and reduced heat generation

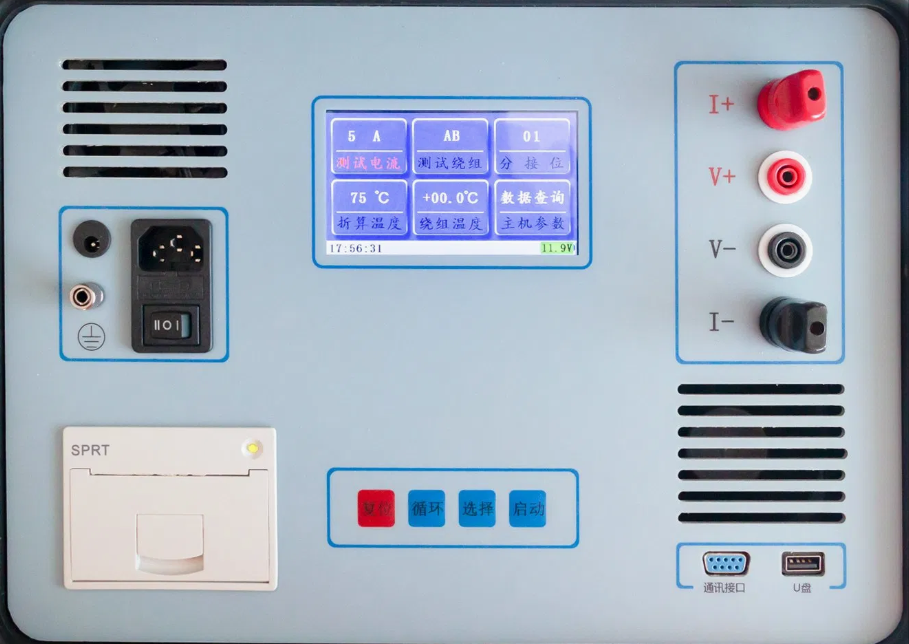

  • 7-inch high-brightness touch color LCD with clear visibility in strong light
  • Built-in perpetual calendar clock with power-down storage for 1000 test datasets
  • Multiple connectivity options: Bluetooth, RS232, USB, and U disk data storage
  • Integrated panel micro printer for measurement result printing
Technical Specifications
Parameter Specification Remarks
Test Current AUTO, <20mA, 40mA, 200mA, 1A, 5A, 10A
Measuring Range & Accuracy 0.5mΩ~0.8Ω (10A)
1mΩ-4Ω (5A)
5mΩ-20Ω (1A)
100mΩ-100Ω (200mA)
1Ω-500Ω (40mA)		 ±(0.2%+2 readings)
Measuring Range & Accuracy 100Ω-100KΩ (<20mA) ±(0.5%+2 readings)
Minimum Resolution 0.1μΩ
Display 7-inch touch color LCD 4-digit resistance display
Data Storage 1000 groups
Working Environment 0ºC~40ºC, <90% RH (no condensation)
Power Supply AC 220V±10V, 50Hz±1Hz Fuse 2A
Maximum Power Consumption 200W
Dimensions 360*290*170mm
Weight Host: 6kg, Wire box: 5kg

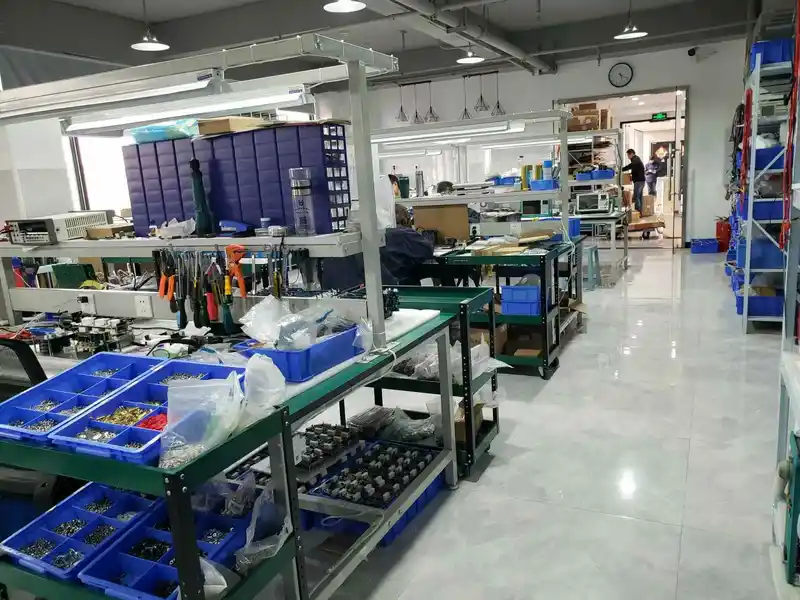

Company Profile

Wuhan Mingyang Industrial Technology Co., Ltd. has a professional sales and technical team to deliver premium pre-sales consultation and full technical support.
We maintain an efficient after-sales team to timely resolve all product and technical issues for global customers.
Founded in 2008 and based in Wuhan, China, we are a high-tech enterprise specialized in R&D, production, sales, OEM/ODM customization and after-sales service of power testing and high-voltage inspection equipment.
We keep enhancing independent innovation, upgrading factory facilities and adopting digital management systems. With reliable quality and good reputation, we have built worldwide customer networks and gained global trust. We sincerely look forward to long-term cooperation with you for mutual development.
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
Pre-sales Consulting Service
We provide comprehensive and professional pre-sales consulting services. Dedicated sales staff and senior technical engineers are arranged to answer customers’ questions regarding products, technologies and cooperation on a one-on-one basis. We deliver complete and detailed product information throughout the whole process to help customers fully understand product parameters, performances and usage details. All products are reasonably priced with high cost performance to ensure customers get value for money. All quotations are officially verified and stamped by the management team with authenticity and compliance guaranteed. Customers are warmly welcomed to visit our factory for field inspection and business negotiation.
Contract Performance Service
A formal sales contract and supporting technical agreement will be signed by both parties upon confirmation of cooperation intention. Adhering to the principle of integrity, we strictly comply with all clauses of signed contracts and technical agreements to ensure smooth and efficient project implementation. We maintain efficient communication throughout the cooperation, actively follow up with customer demands, and record customers’ inquiries and project schedules in detail to provide continuous professional technical docking and support. In all links including delivery, installation, commissioning and operation training, we respond to customer needs promptly and deliver high-quality services with efficiency and professionalism.
Packaging & Delivery Lead Time
We will arrange product delivery within 5-20 working days after receiving the confirmation of customer payment. All products are professionally packed with high-strength sturdy cartons or wooden boxes. The durable packaging effectively prevents collision and damage during transportation, ensuring the safe arrival of all goods at the destination.
MYR 10A IP55 Compact Transformer DC Winding Resistance TesterMYR 10A IP55 Compact Transformer DC Winding Resistance Tester
Shipping & Transportation Solutions
We offer diversified logistics solutions including express air freight, sea freight and railway transportation. We can recommend the most cost-effective and suitable shipping solution according to customers’ delivery time, budget and destination requirements. If customers appoint their own forwarders, we will fully cooperate and provide a complete set of official customs clearance documents to ensure smooth customs clearance. After shipment, we will continuously track the logistics progress until the goods are successfully and intactly received by customers.
MYR 10A IP55 Compact Transformer DC Winding Resistance Tester
Warranty & After-sales Service
We take 100% customer satisfaction as our core service goal. Customers may feedback any product problems at any time, and we will follow up and resolve issues properly in a timely manner. All products are covered by one-year free warranty and lifelong free technical support. We promise to provide exclusive professional solutions within 24 hours upon receipt of customers’ product fault and usage feedback to efficiently solve after-sales problems.

Core Advantages

1. Professional R&D & Manufacturing Strength With more than 16 years of industry experience since its establishment in 2008, our factory owns complete independent R&D laboratories, standardized production workshops and advanced testing equipment. All power testing and high-voltage inspection equipment undergoes strict repeated testing, aging experiments and performance calibration before leaving the factory. We strictly implement standardized production processes to ensure every product features stable performance, high precision and strong durability, meeting international industry standards and customer customized testing requirements.
2. Strict Quality Control System We implement full-process quality management covering raw material procurement, production processing, finished product testing and factory inspection. Core components are selected from well-known branded suppliers, and each production link has special personnel for supervision and inspection. All finished products pass professional precision testing and performance verification before delivery, effectively eliminating defective products and ensuring long-term stable operation of equipment in complex working environments such as power plants, substations and industrial mines.
3. Global Project Experience & Wide Application Our power testing equipment is widely applicable to electric power industry, new energy, industrial manufacturing, scientific research institutions, school laboratories and engineering construction projects. With mature project service experience in dozens of countries and regions around the world, we are familiar with international testing standards and different regional project requirements, capable of providing targeted equipment solutions for various engineering and testing scenarios.
4. Customized & One-stop Service In addition to standard products, we support full-process OEM and ODM customization services, including product function adjustment, parameter optimization, appearance customization, software system upgrading and logo printing. We provide one-stop solutions from product design, production and manufacturing to later installation, commissioning and technical training, saving customers’ procurement time and project cost.
5. Cost-Effective & Direct Factory Supply As a direct manufacturer, we eliminate intermediate distributors’ price difference and provide customers with the most competitive factory direct sales price. On the premise of ensuring high product quality and complete after-sales service, we maximize customer procurement benefits, achieving high cost performance for every purchased equipment.
FAQ
1.Are you factory or trading company?
We are a professional manufacturer based in Wuhan, Hubei Province.
2.What is the MOQ?
Please contact our sales team for detailed MOQ.
3.Production & Delivery Time
Standard products: 3-5 working days delivery.
4.Custom orders: around 20 days, subject to quantity and specifications.
5.Payment Terms:50% T/T deposit in advance, 50% balance before shipment.
6.Can I customize products?
Yes, we support full customization according to your technical requirements.
Product Gallery
MYR 10A IP55 Compact Transformer DC Winding Resistance TesterMYR 10A IP55 Compact Transformer DC Winding Resistance Tester
MYR 10A IP55 Compact Transformer DC Winding Resistance TesterMYR 10A IP55 Compact Transformer DC Winding Resistance Tester

Note: Product operating system and diplay interface available in English version.
