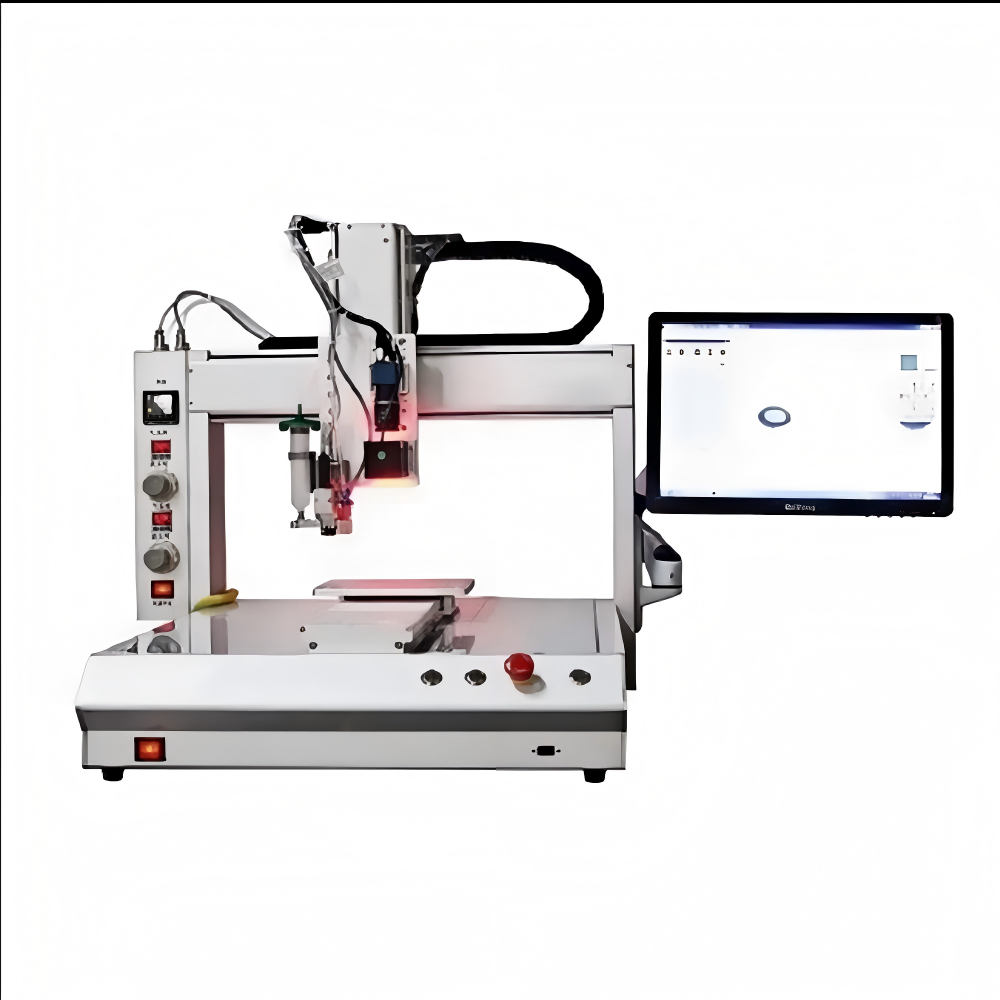

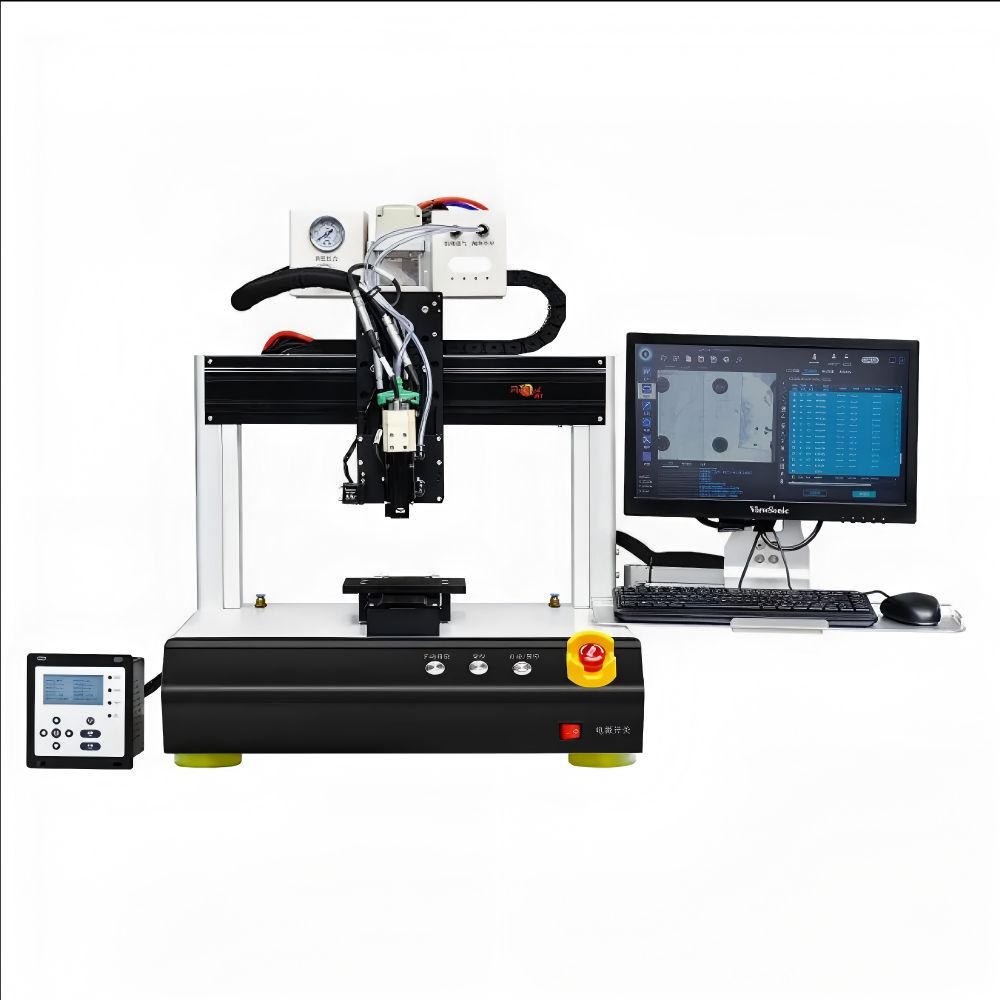

MY-114 Automatic CCD Visual Three Axis Desktop Glue Dispensing Robot High Precision Visual Programming Dispenser Machine

Specifications

Price :

6500usd

Packaging Details :

carton

Condition :

New

Warranty :

12 Months

Spindle Drive :

Servo Motor + Drive Module

Model Number :

MY-114

Brand :

MINGYANG

Power Supply :

AC220V 50/60Hz

Supply Ability :

5000/Month

Driven Type :

Electric

Trademark :

MINGYANG

Programming Mode :

Visual Programming

Payment Terms :

L/C,D/A,D/P,T/T,Western Union

Automatic Grade :

Automatic

Control System :

Industrial PC + Motion Control Card

Delivery Time :

1 week

Certification :

RoHS, ISO, CE

Production Capacity :

5000 sets/year

Brand Name :

MINGYANG

Types :

Automatic

Rated Power :

1kW

Operating Software :

Anda Control Software + Windows System

Place of Origin :

China Mainland

Product Name :

Automatic CCD Visual Glue Dispenser

MOQ :

Origin :

China Mainland

Safety Standard :

Required Air Pressure :

≥0.065Mpa

After-Sale Service :

Provided

Installation :

Desktop

Package :

Customized Export Carton or Wooden Case

Description

Automatic CCD Visual Three Axis Desktop Glue Dispensing Robot High Precision Visual Programming Dispenser Machine

Product Description

Standard Features

Computer Control, Windows OS

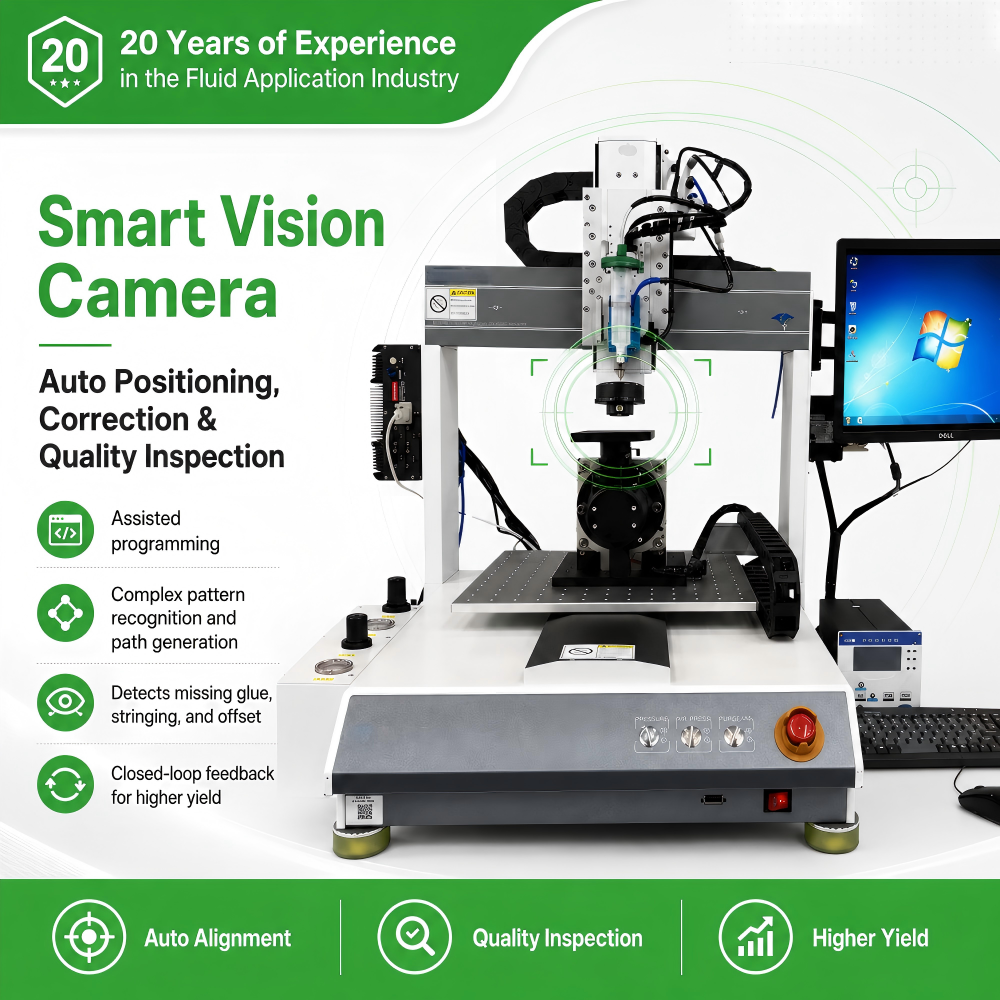

CCD visual positioning system
Servo Motor
UPS and voltage stabilizer
ESD grounding point-
CE certifed

Optional Features

Automatic constant temperature system to ensure the fuidity consistent
Laser Height Detection to calibrate Z axis automatically for component
deformation

Basic Info.

Model NO.

MY-114

Condition

New

Certification

RoHS, ISO, CE

Warranty

12 Months

Automatic Grade

Automatic

Installation

Desktop

Driven Type

Electric

Product Name

Automatic CCD Visual Glue Dispenser

Feature 1

Guaranteed Quality

Feature 2

Customized According to Needs

After-Sale Service

Provided

Transport Package

Customized or Wooden Box Packaging

Specification

Standard Specifications

Trademark

MINGYANG

Origin

China

Production Capacity

5000

Product advantage

Specifications

TSV-300

HSV-300

Dimension (mm)

L810×W660×H760

L900×W650×H1460

Weight (kg)

105

190

Control

Industrial personal computer + motion control card

Software

Anda control software + windows system

Programming

Visual programming

Number of spindles

X,Y,Z

Spindle drive

Servo motor + module

Working area (mm)

X:260 ; Y:260 ; Z:100

Quantity of rubber valve

1 (standard configuration)

Max. Moving speed (mm/s)

800

Repeatability (mm)

± 0.025

Coating capacity (cc)

Valve nozzle

cleaning device

Vacuum cleaning

Equipment alarm

Menu + sound and light alarm

Coating inspection

Automatic detection

Power supply

220V 50/60Hz

Required air pressure (Mpa)

≥ 0.65

Safety standards

Rated power (kw)

Standard configuration

CCD visual positioning; Electrostatic interface; 232 scanner socket
