Specifications
Price :
150usd
Packaging Details :
carton
Warranty :
2 Years
PLC :
optional (standard have not PLC)
Model Number :
MY-2670J
Protection Class :
IP55
Delivery Time :
1 week
Leakage Current Accuracy :
≤±5%
Power dissipation :
100VA
Brand Name :
MINGYANG
Type :
Testing Machine
Supply Ability :
1000pcs/month
Keyword :
Withstand voltage tester
Size :
390*270*180mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Voltage :
AC/DC 0-5KV
Weight :
11kg
Place of Origin :
China Mainland
Customized support :
OEM, ODM
MOQ :
1
Power :
5KW
Time Control :
0.0s-999s,continuously setting &manual
Description
MY-2670J Hipot Tester Low Voltage Withstand Voltage Test Set Interface For Switch Cabinet Insulation Test
This high-voltage hipot tester is designed for insulation breakdown and destructive testing applications. It serves as a precision measurement instrument for compressive strength testing, primarily used for insulation leakage safety testing of electrical products.
Product Parameters
MY2670J voltage breakdown tester can be called electrical insulation strength tester, dielectric strength tester, etc. according to its functions.

It is widely used for the breakdown voltage and withstand voltage test of electrical equipment, bakelite appliances, transformers, power lines, electricity meters, motors, power plug sockets, cables, etc., as well as the breakdown voltage test of various insulating materials. With the establishment of national safety standards, the voltage breakdown tester has become an indispensable voltage breakdown tester for various wireless power plants, electronic products and other manufacturers.

MY2670J voltage breakdown tester meets the requirements of GB/T 1408.1-2006 standard (made of brass). Optional: two sheet electrodes 25mm, one sheet electrode 75mm; Two enamelled wire electrodes; Two electrodes for tubes. Due to the variety of samples of experimental solid insulating materials such as wire casing, resin and glue, impregnated fiber products, mica and its products, plastics, film composite products, ceramics, glass and other media, the standard configuration of the breakdown voltage electrode is a set of cylindrical electrodes with a diameter of 25 mm, and a set of spherical and cylindrical composite electrodes. Other sample electrodes are optional, please contact us before ordering.
Product Specifications
Warranty 2 Years
Customized Support OEM, ODM
Place of Origin China

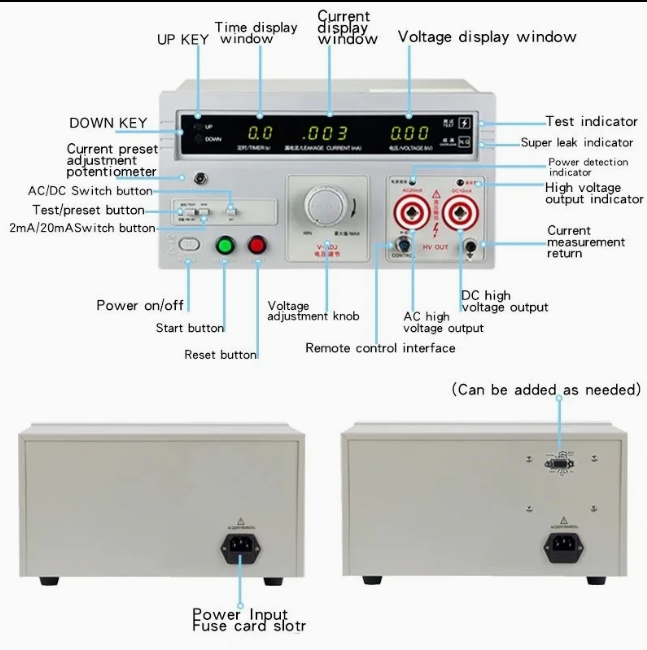

Performance Characteristics
  • Universal AC and DC 5KV withstand voltage tester
  • Voltage regulator-controlled output for high reliability and durability
  • High-brightness LED digital display showing test time, voltage, current, and real-time breakdown values
  • Continuously adjustable preset alarm current value
  • Three-digit test time display
  • PLC signal input/output interfaces for comprehensive test system integration
  • Application Area
    Components: diodes, triodes, high-voltage silicon stacks, various electronic transformers, connectors, high-voltage electrical appliances

    Household appliances: TV, refrigerator, air conditioner, washing machine, dehumidifier, electric blanket, charger, etc

    Insulation materials: heat shrinkable bushing, capacitor film, high-voltage bushing, insulating paper, insulating shoes, insulating rubber gloves, PCB circuit board, etc

    Instruments: oscilloscope, signal generator, DC power supply, switching power supply and other complete machines

    Lighting appliances: ballasts, road lamps, stage lamps, portable lamps and other lamps

    Electric heating appliances: electric drill, gas cutting machine, grinder, grinder, electric welding machine, etc

    Wires and cables: high-voltage lines, cables, silicone rubber cables, etc

    Basic Info.

    Model NO.
    MY2670J
    Weight
    25kg
    Current Display Accuracy
    ± 5%
    Output Power
    1500va
    Timing Range (Display Meter)
    1-99 Seconds ± 1%
    Power Supply
    AC 220V ± 10% 50Hz/60Hz
    Customized Support
    OEM, ODM, Obm, Software Reengineering
    Power Consumption
    ≤ 30W (Static Power Consumption
    Output Waveform
    50Hz/60Hz Sine Waveform Using Power Supply
    Output Voltage
    AC: 0-5/10kv DC: -5/10kv
    Power
    Electronic
    Voltage Display Accuracy
    ± 5%
    Leakage Current Range
    AC: 0-2/20/100mA DC: 0-2/20mA
    Transport Package
    Special Export Packaging Box
    Trademark
    MINGYANG
    Origin
    Hubei, China
    HS Code
    9030332000
    Production Capacity
    150 Set/Sets Per Month
