Specifications
Brand Name :
HGSTAR
Certification :
CE、FDA
Place of Origin :
WUHAN
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 Unit per Year
Delivery Time :
7-25Working Days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Model Number :
SMART Series
Name :
Fiber Laser Cutting Machine 1000W
Machine Model :
SMART3015、4015、6015、8015
Cutting Area (L×W) :
3000mm×1500mm,4000mm×1500mm,6000mm×1500mm,8000mm×1500mm
Laser Source :
Fiber & 1000W – 6000W
CNC System :
FSCUT 1000
Laser Cutting Head :
F125mm
Max Moving Speed :
80m/min, Acceleration is 1.0G
Position Accuracy (X and Y axis) :
0.02mm
Reposition Accuracy (X and Y axis) :
0.03mm
Power Supply Requirement :
380V 50/60Hz 35KVA
Machine weight :
≤2500 Kg
Appearance size :
4550mm×2280mm×2100mm
Description
High Power Fiber Laser Cutting Machine with Parallel Exchange Technology and 1000W – 6000W
SMART3015 is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.
Model
SMART-Series
Machine tool processing area (length × width)
3000mm×1500mm
Accuracy
X and Y-axis positioning accuracy
±0.03mm
X and Y-axis repeatability positioning accuracy
±0.02mm
Speed
X and Y-axis positioning speed
60-90m/min
X-axis and Y-axis acceleration
0.5-1.0G
Maximum feed rate
80m/min
Machine tool travel
X-axis travel
1500mm
Y-axis travel
3000mm
Z-axis travel
120mm
Dimensions
Approximate external dimensions (length × width × height)
4500mm×2220mm×2000mm
Power supply parameters
380V/50Hz

High Power Fiber Laser Cutting Machine with Parallel Exchange Technology
The Parallel Exchange Fiber Laser Cutting Machine is engineered to address critical manufacturing challenges including low ROI, high maintenance costs, and inefficient production cycles. By combining high-power fiber laser technology with an intelligent parallel exchange system, this machine has become a leading upgrade solution for metal processing facilities worldwide.
Maximize ROI & Reduce Operating Costs
This advanced laser cutting solution significantly lowers procurement and long-term maintenance expenses while enhancing cutting efficiency and production reliability. The parallel exchange table enables continuous operation without production interruptions, ensuring faster order fulfillment and optimal machine utilization.
Comprehensive Metal Processing Capabilities
Powered by ultra-high-power fiber laser sources from 12,000W to 30,000W, this machine processes carbon steel, stainless steel, aluminum, brass, copper, and various other metals with exceptional precision and consistent quality. A single machine handles diverse metal cutting applications comprehensively.
High-Speed & High-Precision Performance
  • Laser Power: UHP 12kW - 30kW
  • Max Acceleration: 3.0G
  • Max Positioning Linkage Speed: 168 m/min
The robust construction and high-speed motion system ensure consistent cutting accuracy during extended continuous operation.
Intelligent Control & Low Maintenance Design
The system features remote diagnostic capabilities for rapid troubleshooting and reduced downtime. The integrated intelligent anti-collision system safeguards the cutting head and machine components, further minimizing maintenance and repair requirements.
Safe, Eco-Friendly & Automation Ready
Designed with environmental sustainability and operator safety as priorities, the complete system includes a standard MES data interface, supporting future integration with automated loading, unloading, and smart factory systems.
Ideal Solution for Production Line Upgrades
With its exceptional efficiency, low operating costs, and intelligent features, the Parallel Exchange Fiber Laser Cutting Machine represents the optimal investment for businesses pursuing equipment modernization, capacity expansion, and smart manufacturing transformation.

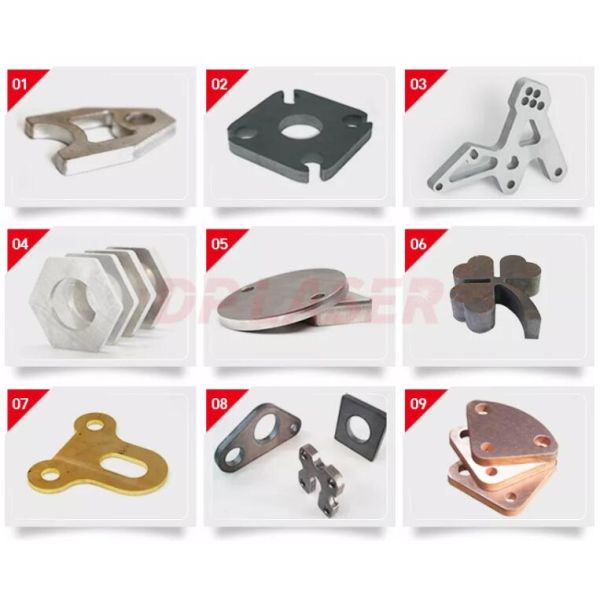

Samples Display:

High Power Metal Fiber Laser Cutting Machine 1000W – 6000W With Parallel Exchange Technology
