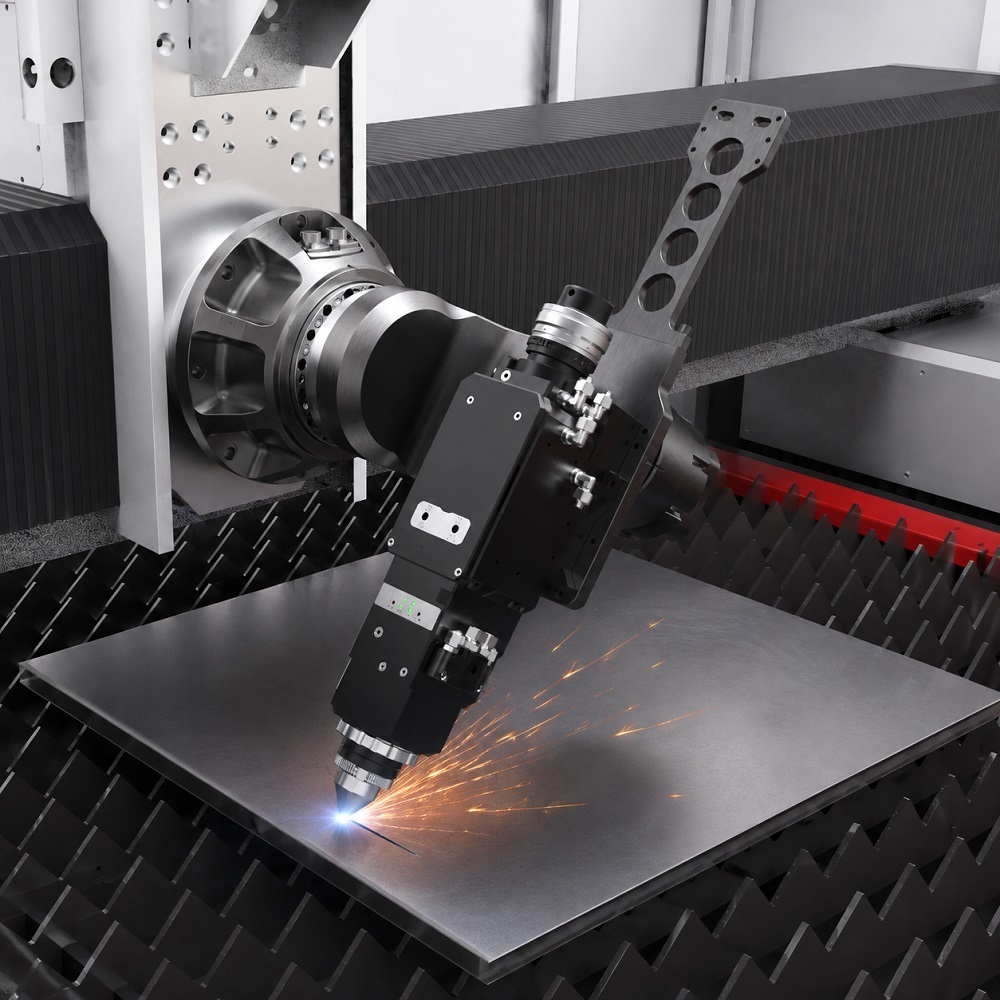

CNC Gantry System Laser Flame Hybrid Cutting Machine 45 Degree Bevel Cutting Heavy Steel Plate
CNC Gantry System Laser Flame Hybrid Cutting Machine 45 Degree Bevel Cutting Heavy Steel Plate
CNC Gantry System Laser Flame Hybrid Cutting Machine 45 Degree Bevel Cutting Heavy Steel Plate
CNC Gantry System Laser Flame Hybrid Cutting Machine 45 Degree Bevel Cutting Heavy Steel Plate
Specifications
Gantry Span :
4000-8000 mm
Payment Terms :
L/C,T/T
Delivery Time :
30-45 Working Days
Bevel Accuracy :
±0.5°
Place of Origin :
Shandong, China
Model Number :
HGSTAR
Bevel Type :
V / Y / X / K
Cutting Process :
Laser + Flame Hybrid
Application :
Shipbuilding, Steel Structure
Brand Name :
HGSTAR
Supply Ability :
500 Unit per Year
Control System :
CNC Bevel Control
Certification :
CE、FDA
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
MOQ :
1 Set
Bevel Cutting Thickness :
40-200 mm
Price :
Negotiable
Laser Power :
3000W
Bevel Angle :
±45°
Description
Laser Flame Hybrid Cutting Machine with 45 Degree Bevel

The HGSTAR-LF Laser Flame Hybrid Cutting Machine integrates a ±45° bevel cutting head with a rigid CNC gantry system, allowing V, Y, X and K groove preparation directly on heavy steel plate. Weld-ready bevels are cut in a single pass, eliminating separate edge milling and reducing fabrication time significantly.

Key Features
  • ±45° bevel cutting head prepares V, Y, X and K grooves in one pass
  • Hybrid laser and flame processes handle 40-200mm heavy plate
  • Rigid gantry structure maintains bevel accuracy of ±0.5°
  • CNC bevel control synchronizes torch angle with cutting path
  • Weld-ready edges reduce downstream edge milling operations
Technical Specifications
Brand HGSTAR
Bevel Angle ±45°
Bevel Type V / Y / X / K
Bevel Cutting Thickness 40-200 mm
Laser Power 20000W
Cutting Process Laser + Flame Hybrid
Control System CNC Bevel Control
Gantry Span 4000-8000 mm
Bevel Accuracy ±0.5°
Applications

Shipbuilding hull panels, steel structure fabrication, pressure vessel shells and heavy equipment weld preparation.
