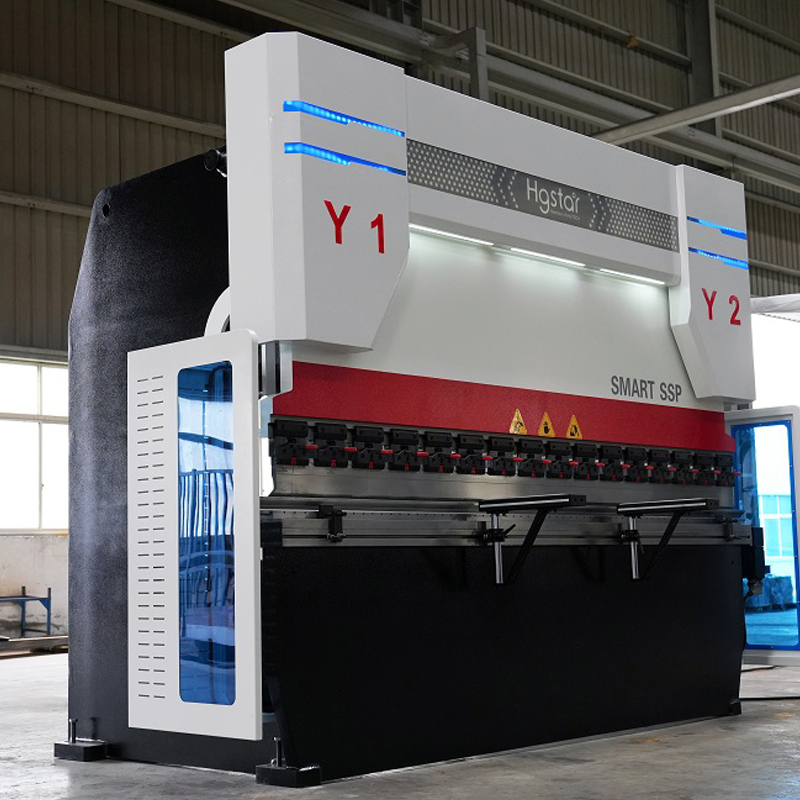

Large Tonnage Hydraulic Bending Machine 8+1 Axis CNC Press Brake 100T 400T Long Bed Steel Forming
Large Tonnage Hydraulic Bending Machine 8+1 Axis CNC Press Brake 100T 400T Long Bed Steel Forming
Large Tonnage Hydraulic Bending Machine 8+1 Axis CNC Press Brake 100T 400T Long Bed Steel Forming
Large Tonnage Hydraulic Bending Machine 8+1 Axis CNC Press Brake 100T 400T Long Bed Steel Forming
Specifications
Control System :
Multi-Axis CNC
Delivery Time :
7-25 Working Days
Approach Speed :
120 mm/s
Brand Name :
HGSTAR
Bending Force :
100T / 200T / 400T
Place of Origin :
WUHAN
MOQ :
1 Set
Throat Depth :
400 mm
Application :
Heavy Steel Plate Forming
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Frame Structure :
Heavy Duty Steel Welded
Price :
Negotiable
Axis Configuration :
8+1 Axis (Y1, Y2, X, R, Z1, Z2, W1, W2 + Back Gauge)
Payment Terms :
L/C,T/T
Bending Length :
3200-6000 mm
Certification :
CE、FDA
Supply Ability :
500 Unit per Year
Stroke :
250 mm
Model Number :
HG-SSP
Description
Large Tonnage Hydraulic Bending Machine HG-SSP

The HG-SSP Large Tonnage Hydraulic Bending Machine delivers 100T to 400T bending force across bed lengths up to 6000mm with an 8+1 axis CNC press brake configuration. The heavy duty steel welded frame resists deflection, while eight programmable axes handle long steel plate and complex box forming with repeatable accuracy.

Key Features
  • 8+1 axis CNC press brake configuration handles complex long part bending
  • 100T, 200T and 400T models cover light to heavy bending loads
  • Bed length up to 6000mm accommodates long steel plate workpieces
  • Heavy duty steel welded frame minimizes deflection under load
  • 250mm stroke and 400mm throat depth handle deep box sections
Technical Specifications
ModelHG-SSP
Axis Configuration8+1 Axis (Y1, Y2, X, R, Z1, Z2, W1, W2 + Back Gauge)
Bending Force100T / 200T / 400T
Bending Length3200-6000 mm
Stroke250 mm
Throat Depth400 mm
Frame StructureHeavy Duty Steel Welded
Control SystemMulti-Axis CNC
Approach Speed120 mm/s
Applications

Heavy machinery frames, structural steel fabrication, truck components, shipbuilding parts and long plate forming.
