Integrated Ultra-Low Frequency Dielectric Strength and Dielectric Loss Tester with 0-100kV Test Voltage Range, Microcomputer Control, and LCD Touch Screen
Integrated Ultra-Low Frequency Dielectric Strength and Dielectric Loss Tester with 0-100kV Test Voltage Range, Microcomputer Control, and LCD Touch Screen
Integrated Ultra-Low Frequency Dielectric Strength and Dielectric Loss Tester with 0-100kV Test Voltage Range, Microcomputer Control, and LCD Touch Screen
Integrated Ultra-Low Frequency Dielectric Strength and Dielectric Loss Tester with 0-100kV Test Voltage Range, Microcomputer Control, and LCD Touch Screen
Integrated Ultra-Low Frequency Dielectric Strength and Dielectric Loss Tester with 0-100kV Test Voltage Range, Microcomputer Control, and LCD Touch Screen
Integrated Ultra-Low Frequency Dielectric Strength and Dielectric Loss Tester with 0-100kV Test Voltage Range, Microcomputer Control, and LCD Touch Screen
Specifications
Model Number :
HGVLF-30KV/40KV/50KV/80KV
Safetyprotection :
Over-voltage, Over-current, Short Circuit Protection
Powersupply :
AC 220V ±10%, 50/60Hz
Brand Name :
HUAGAO
Place of Origin :
China Hubei Wuhan
Price :
4500-23000
Packaging Details :
Wooden box with sturdy packaging. Dimensions: 80*58*75 (cm)
Coolingmethod :
Air Cooling
Supply Ability :
200 units/set per year
Operatingtemperature :
-10°C to 40°C
Displaytype :
LCD Touch Screen
Productname :
Series Resonance Withstand Voltage Test Equipment
Weight :
25kg
Testvoltagerange :
0-100kV
Currentaccuracy :
±1%
MOQ :
1
Testmodes :
Manual and Automatic
Controlmode :
Microcomputer Control
Dimensions :
600mm x 400mm x 300mm
Outputcurrent :
0-100mA
Frequencyrange :
15Hz-500Hz
Delivery Time :
5-8 work day
Storagetemperature :
-20°C to 60°C
Payment Terms :
D/A,D/P
Description

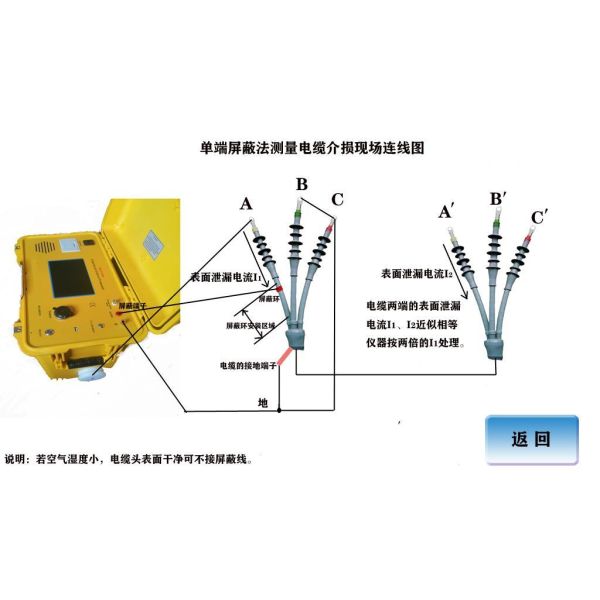

1. Dielectric Loss Ultra-Low Frequency Product Overview This product is designed for multifunctional cable testing, capable of measuring dielectric loss, capacitance, and insulation resistance, while also performing AC and DC voltage withstand tests. It provides cable insulation quality reports. Featuring an integrated structure, the device incorporates the dielectric loss measurement unit within the ultra-low frequency booster, resulting in compact size, lightweight design, simplified wiring, and user-friendly operation.

2 .Dielectric Loss Ultra-Low Frequency Technical Specifications

2.1 Rated Voltage: 30KV, 40KV, 50KV, 60KV, 80KV.

2.2 Test frequency: 0.1Hz–0.01Hz

2.3 Dielectric loss measurement range: 0.01×10⁻³ to 655.35×10⁻³. Values exceeding 655.35×10⁻³ will be displayed as ">655.35×10⁻³".

2.4 Dielectric loss measurement accuracy: 1×10⁻³

2.5 Dielectric loss resolution: 1×10⁻⁴

2.6 Capacitance measurement range: 0.001μF–10μF

2.7 Capacitance resolution: 0.001μF

2.8 Capacitance measurement accuracy: ±3%

2.9 Insulation resistance measurement range: 1MΩ–65535MΩ. Values above 65535MΩ will be displayed as ">65535MΩ".

2.10 Insulation resistance discrimination rate: 1 MΩ

2.11 Insulation resistance measurement accuracy: ±3%

2.12 Voltage accuracy: ±3%

2.13 AC current range: 0-20mA

2.14 AC current resolution: 0.1mA

2.15 AC current accuracy: ±3%

2.16 DC current range: 0-2000μA

2.17 DC current resolution: 1μA

2.18 DC current accuracy: ±3%

2.19 RS232 (or USB) communication interface

2.20 Dimensions: 50×28×45 cm

2.21 Weight: 32g for 30kV/40kV products, 40kg for 50kV/60kV/80kV products.
