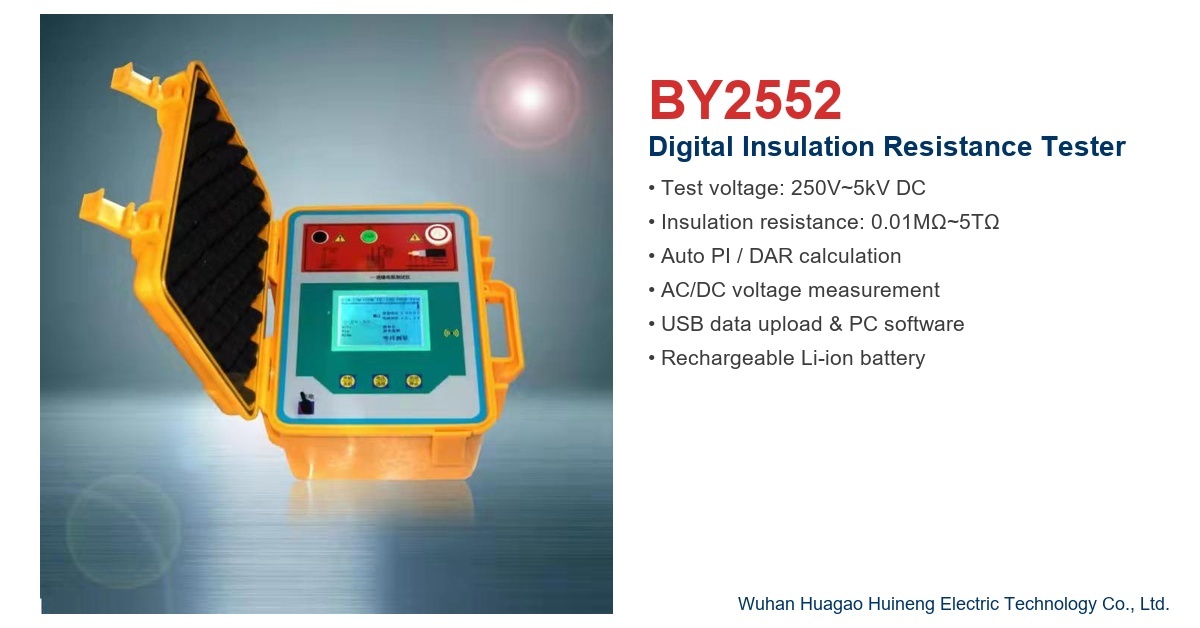

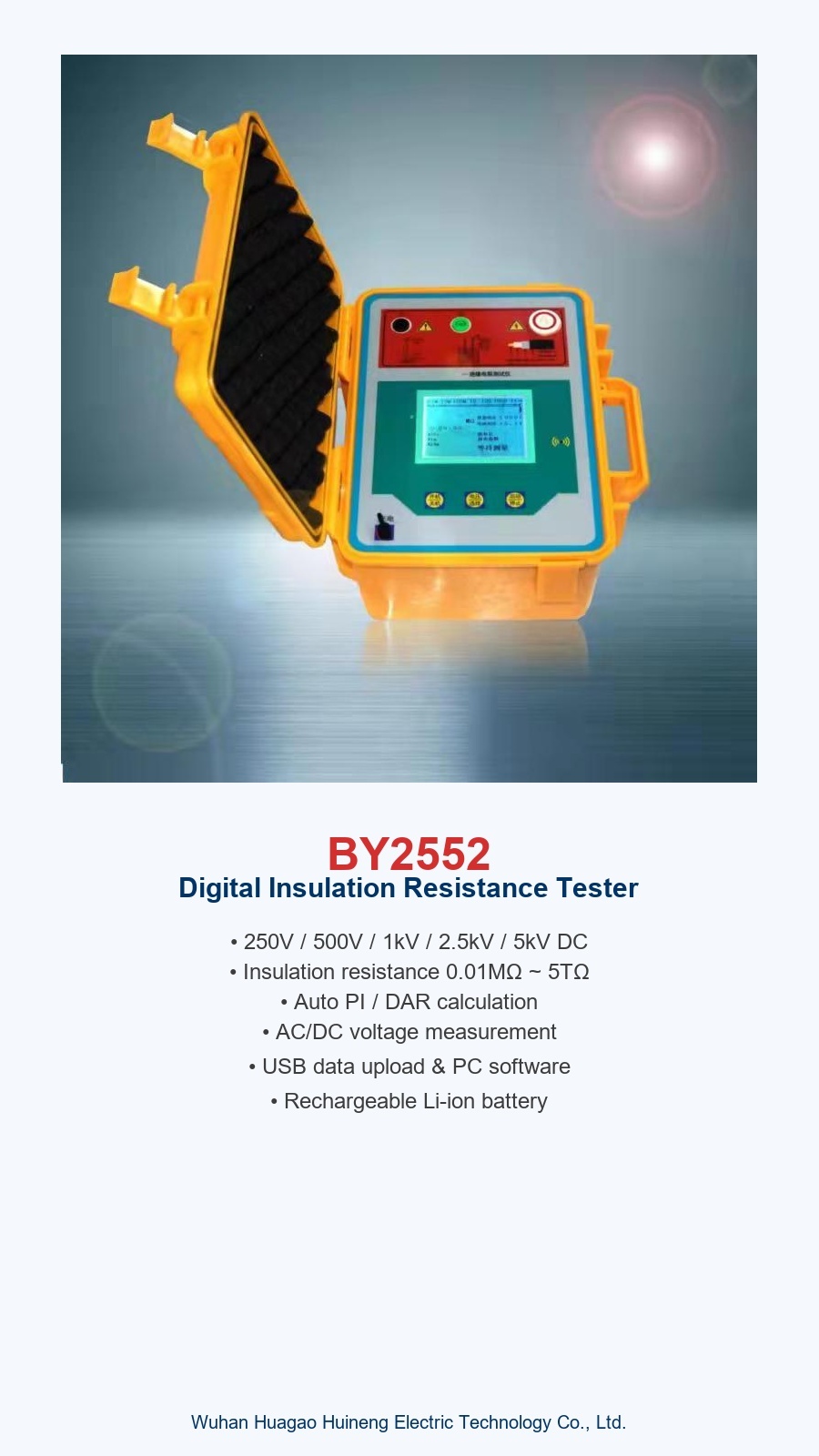

BY2552 Digital Insulation Resistance Tester

Product Datasheet | Wuhan Huagao Huineng Electric Technology Co., Ltd.

1. Product Overview

The BY2552 Digital Insulation Resistance Tester (also known as a megohmmeter, high-voltage megohmmeter, or HV insulation resistance tester) is designed for insulation testing in laboratories or on-site. It features a large LCD with white backlight, data storage/recall, automatic calculation of absorption ratio (DAR) and polarization index (PI), and automatic recording of data at 15 s, 30 s, 1 min and 10 min intervals.

With high resolution, easy operation, portability, accuracy, reliability and strong anti-interference capability, the tester is widely used in telecommunications, electric power, meteorology, data centers, oil fields, electromechanical installation/maintenance, and industrial enterprises. It is suitable for measuring the insulation resistance of various insulating materials, transformers, motors, cables and electrical equipment.

The instrument consists of medium/large-scale integrated circuits, including a high-precision micro-current measurement system, digital voltage booster and automatic discharge circuit. Only one high-voltage cable and one signal cable are required to connect the object under test; measurement is automatic, the result is shown on the large screen and the data is stored.

2. Key Features

• Five selectable DC test voltages: 250 V / 500 V / 1000 V / 2500 V / 5000 V
• Insulation resistance range: 0.01 MΩ ~ 5.00 TΩ
• AC/DC voltage measurement: AC 0 ~ 750 V, DC 0 ~ 1000 V
• Automatic Polarization Index (PI) and Dielectric Absorption Ratio (DAR) calculation
• Large LCD with white backlight; stores up to 1000 sets of data
• USB interface with PC software for data download, review, saving and printing
• Multiple short-circuit current options available: ≥5 mA / ≥10 mA / ≥3.5 mA / ≥1.5 mA
• Rechargeable lithium battery; rugged portable carrying case
• Shockproof, dustproof and moisture-proof structure

3. Model Selection

4. Technical Specifications

4.1 Insulation Resistance Range & Accuracy

4.2 AC/DC Voltage Measurement

4.3 General Specifications

• Functions: Insulation resistance, PI, DAR, AC/DC voltage; auto-discharge; ambient temperature; clock
• Power Supply: DC 14.8 V / 2200 mAh rechargeable Li-ion battery (full charge ≈ 16.8 V)
• Test Voltages: 250 V / 500 V / 1000 V / 2500 V / 5000 V selectable
• Short-circuit Current: 5 mA standard (≥10 mA / ≥3.5 mA / ≥1.5 mA optional)
• Resolution: Insulation resistance / AC voltage / DC voltage: 0.01 (MΩ/V)
• Measurement Time: 1 min ~ 30 min adjustable
• Display: 4-digit LCD, 128 mm × 75 mm, white backlight
• Data Storage: 1000 groups; USB interface + PC software
• Dimensions: Instrument: 258 mm × 215 mm × 83 mm
• Weight: Instrument: 2.19 kg (with battery); total: 3.50 kg (with packaging)
• Operating Conditions: -10 °C ~ 40 °C; ≤ 80% RH
• Storage Conditions: -20 °C ~ 60 °C; ≤ 70% RH
• Withstand Voltage: AC 3700 V rms (between front and rear case)
• EMC: IEC 61326

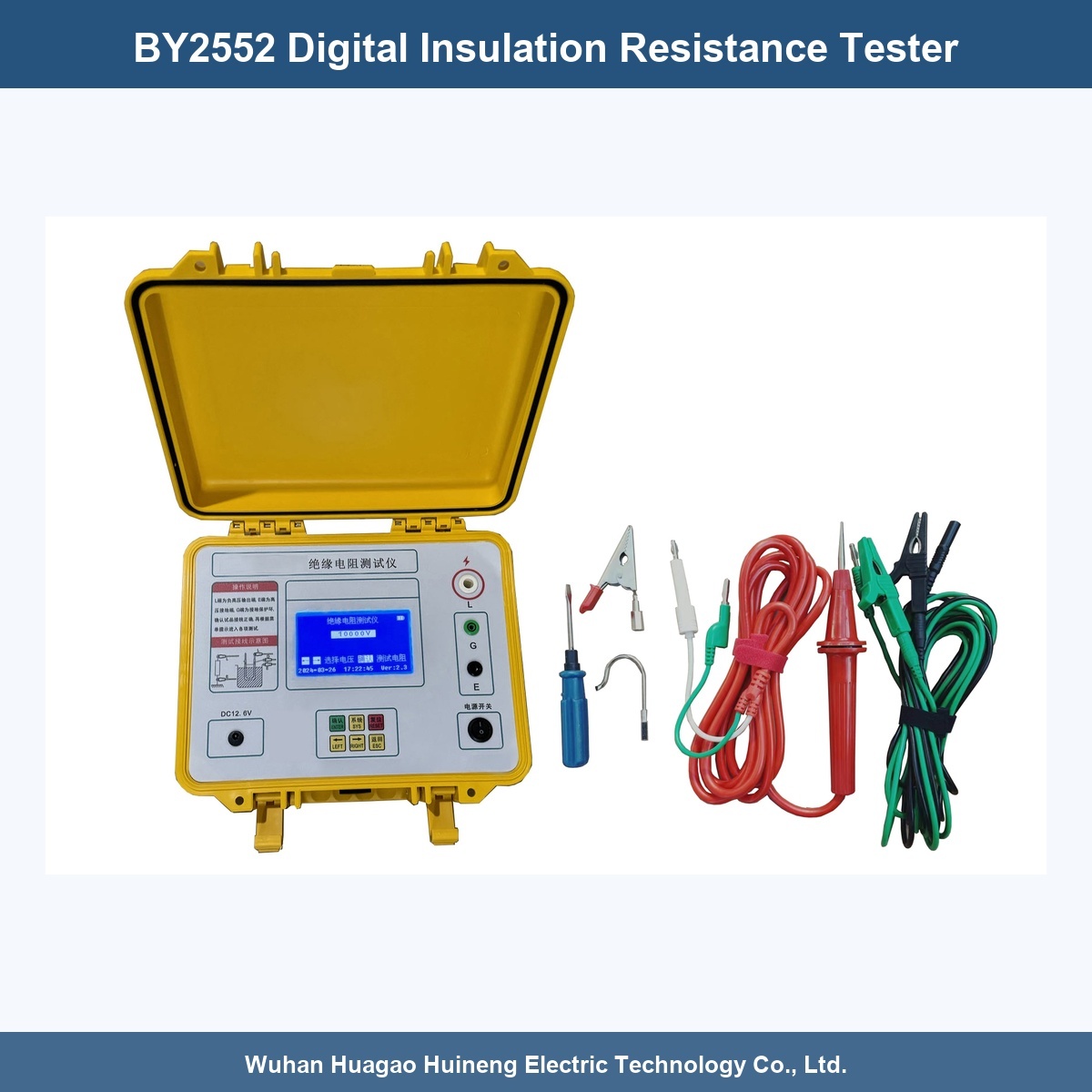

5. Standard Configuration

• 1 × BY2552 instrument
• 1 × Carrying case / tool bag
• 1 × Red HV test probe with 3 m cable
• 1 × Red HV clip / hook
• 1 × Black test lead with clip (3 m)
• 1 × Green guard test lead with clip (3 m)
• 1 × 16.8 V charger
• 1 × USB communication cable (1.5 m)
• 1 × Silicone protective cover
• 1 × PC data software (electronic version)
• 1 × User manual, warranty card & certificate

For more information or a quotation, please contact Wuhan Huagao Huineng Electric Technology Co., Ltd.
